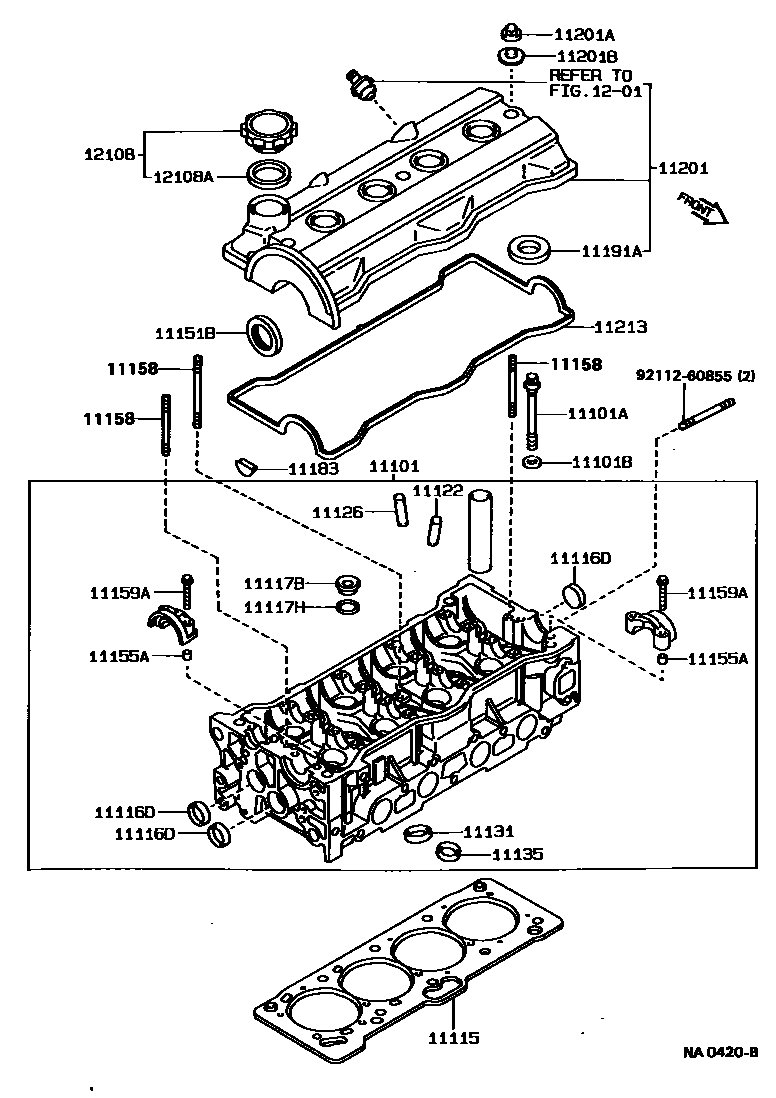

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
*11-1.25PX130-50
*11-1.25PX152-50
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11115GASKET, CYLINDER HEAD
sub11115-16082
sub11115-64121
sub11115-64121
sub11115-64122
sub11115-79015
T=1.25
11116DPLUG, TIGHT, NO.4
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
NO.1
PNC 11118A
PNC 11118C
NO.3
PNC 11118B
NO.2
11122BUSH, INTAKE VALVE GUIDE
STD
STD
STD
O/S 0.05
O/S 0.05
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
STD
O/S 0.05
O/S 0.05
11131SEAT, INTAKE VALVE
STD
STD
STD
O/S 0.03
O/S 0.03
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
STD
O/S 0.03
O/S 0.03
11155APIN, RING W/HEAD
11158BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
L=108
L=108,L=108
L=80,L=80
L=80
11159BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP)
11183PLUG, SEMICIRCULAR
11191TUBE, SPARK PLUG
11191AGASKET(FOR SPARK PLUG TUBE)
11201COVER SUB-ASSY, CYLINDER HEAD
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
1201
12108AGASKET(FOR OIL FILLER CAP)
9211260855
main92112-60855
27 parts on this diagram · 3 diagrams in section
