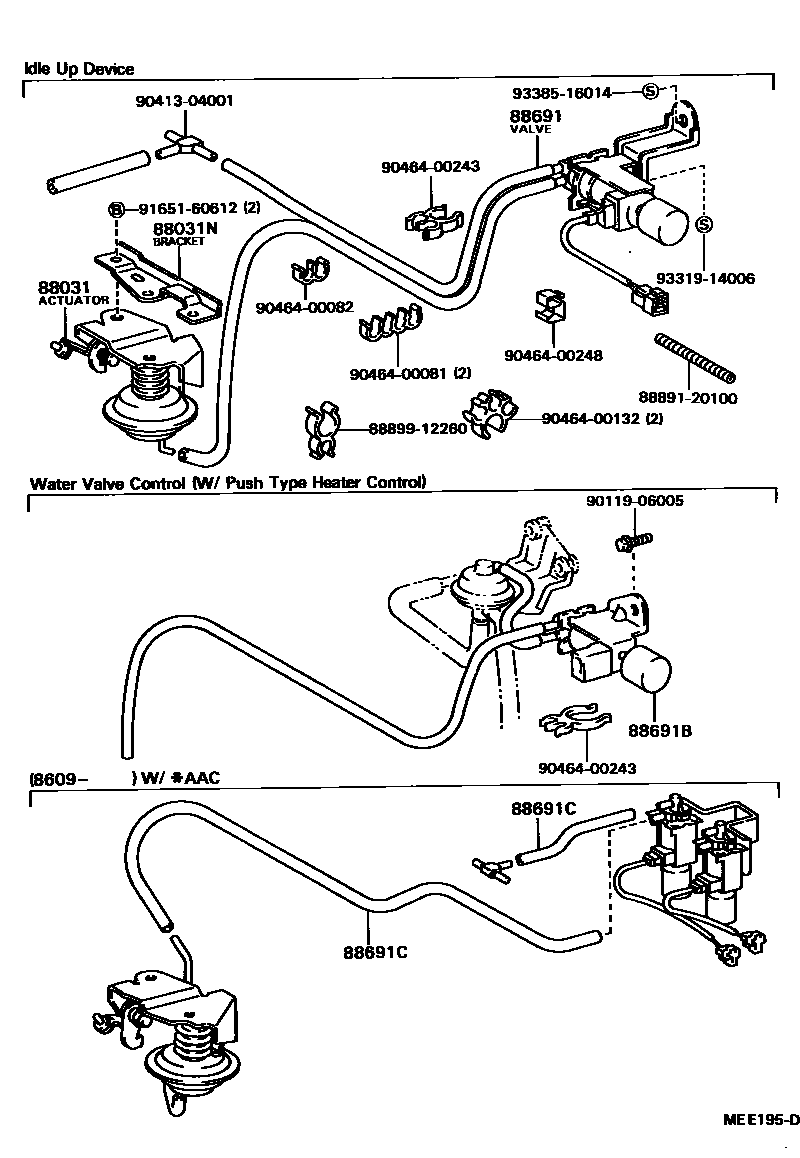

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0002 1 0003 1

88031ACTUATOR SET, IDLE-UP

main88031-12140iAT151..RHD..EUG198608-198711

main88031-12150iCT150..EUG; CT150..GEN198705-198711

main88031-20060iST150..GEN,SAA,TH198310-198711

main88031-30070iCT150..EUG; CT150..GEN198310-198705

88031NBRACKET, IDLE-UP ACTUATOR

main88688-12280iAT151..RHD..EUG198608-198711

main88688-20440iAT151..LHD..(EUG,FRG)198310-198711

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-20470iST150..RHD198310-198711

main88690-20500iCT150..RHD..EUG198310-198508

main88690-20510iCT150..LHD..EUG198310-198711

HEATER IDLE UP

main88690-20550iCT150..RHD..GEN198310-198508

main88690-20560iAT151..RHD..(GEN,TH)198310-198711

main88690-20570iAT151..LHD..(EUG,FRG);AT151..LHD..(GEN,SAA)198310-198711

main88690-20580iST150..LHD..(GEN,SAA)198310-198711

main88690-20590iCT150..LHD198310-198711

COOLER IDLE UP

main88690-20740iST150..EUG198508-198711

main88690-20770iST151198508-198711

main88690-20780iCT150..RHD198508-198711

main88690-20820iAT151..SED..RHD..GL..GEN198609-198711

W/*AAC & *PHC

88691BVALVE, MAGNET (FOR WATER VALVE)

main88690-20810iAT151..SED..RHD..GL..GEN198609-198711

W/*PHC

88691CHOSE, VACUUM (FOR IDLE UP DEVICE), NO.1

main95411-10030iAT151..SED..RHD..GL..GEN198609-198711

*H,L=80,MARK=#0,W/*AAC

main95411-19995iAT151..SED..RHD..GL..GEN198609-198711

*H,L=750,MARK=#*,W/*AAC

8889120100PACKING (FOR COOLER)

main88891-20100

8889912260COVER, EVAPORATOR

main88899-12260

9011906005

main90119-06005

9041304001

main90413-04001

9046400081

main90464-00081

9046400082

main90464-00082

9046400132

main90464-00132

9046400243

main90464-00243

9046400248

main90464-00248

9165160612

main91651-60612

9331914006

main93319-14006

9338516014

main93385-16014

17 parts on this diagram · 3 diagrams in section
