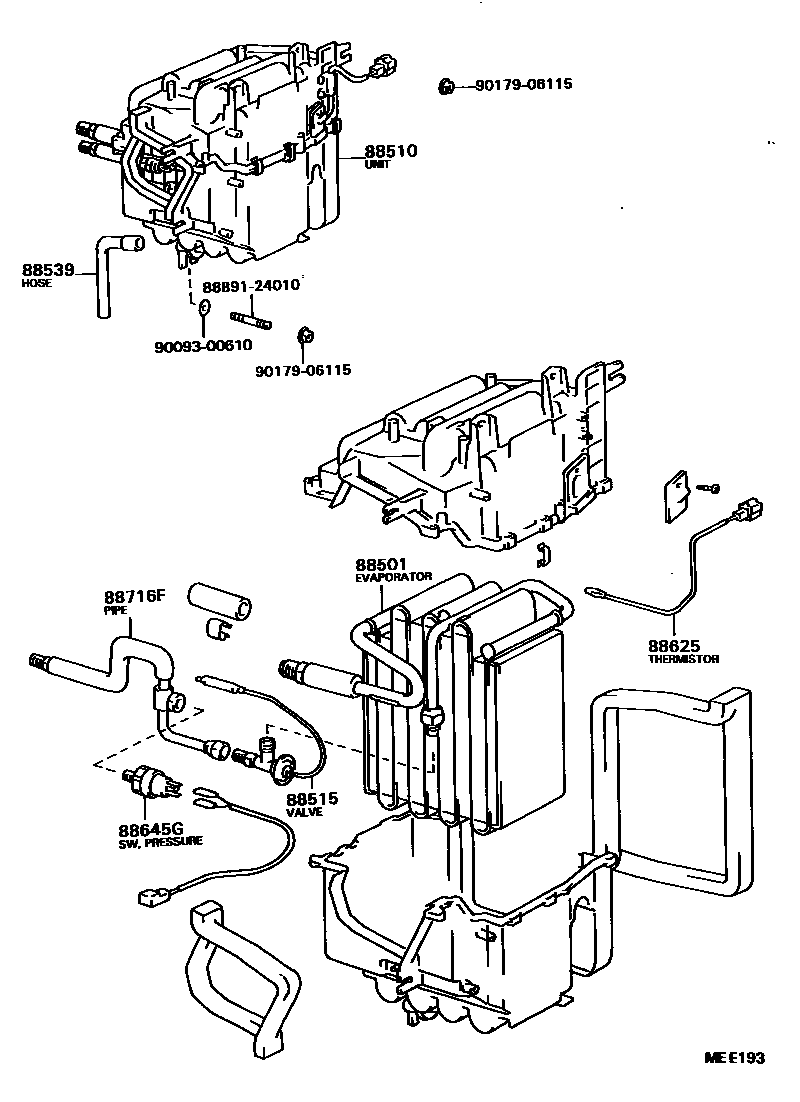

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-20180iAT151,CT150,ST15#..RHD..(GEN,TH)198310-198601

main88501-20181iAT151,CT150,ST15#..RHD..(GEN,TH)198601-198711

main88501-20190iAT151..LHD..EUG;AT151..LHD..GEN;CT150,ST150..LHD198310-198601

main88501-20191iCT150,ST150..LHD;AT151..LHD..(EUG,FRG);AT151..LHD..(GEN,SAA)198601-198711

88510UNIT ASSY, COOLER

main88510-20320iAT151,ST150..TH198508-198608

main88510-20340iCT150,ST150..LHD;AT151..LHD..(EUG,FRG);AT151..LHD..(GEN,SAA)198310-198711

main88510-20350iCT150..RHD..GEN198404-198508

88515VALVE, COOLER EXPANSION

main88515-16030iCT150,ST150..LHD;AT151..LHD..(EUG,FRG);AT151..LHD..(GEN,SAA)198310-198711

main88515-20050iAT151,CT150,ST15#..RHD..(GEN,TH)198310-198711

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-20100iAT151,CT150,ST15#..RHD..(GEN,TH)198310-198711

main88539-20120iCT150,ST150..LHD;AT151..LHD..(EUG,FRG);AT151..LHD..(GEN,SAA)198310-198711

88625THERMISTOR, COOLER, NO.1

main88625-12070iAT151,CT150,ST15#..RHD..(GEN,TH); CT150,ST150..LHD;AT151..LHD..(EUG,FRG);AT151..LHD..(GEN,SAA)198310-198711

88645GSWITCH, PRESSURE

main88645-12010iAT151,CT150,ST15#..RHD..(GEN,TH); CT150,ST150..LHD;AT151..LHD..(EUG,FRG);AT151..LHD..(GEN,SAA)198310-198711

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-20670iAT151,CT150,ST15#..RHD..(GEN,TH)198310-198711

main88716-20710iCT150,ST150..LHD;AT151..LHD..(EUG,FRG);AT151..LHD..(GEN,SAA)198310-198711

8889124010PACKING (FOR COOLER)

main88891-24010

9009300610

main90093-00610

9017906115

main90179-06115

10 parts on this diagram · 3 diagrams in section
