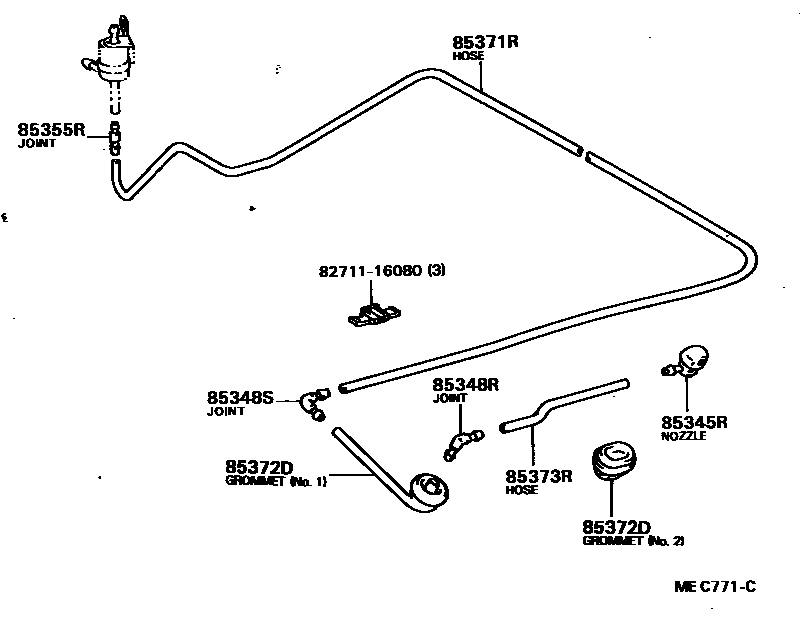

REAR WASHER

85345RNOZZLE, REAR WASHER

main85341-32010iAT151,CT150,ST15#..LB198310-198711

85348RJOINT, REAR WASHER HOSE, NO.1

main85355-20200iAT151,CT150,ST15#..LB198310-198711

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iAT151,CT150,ST15#..LB198310-198711

85355RVALVE, REAR WASHER HOSE

main85349-89122iAT151,CT150,ST15#..LB198310-198711

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33422iAT151,CT150,ST15#..LB198310-198711

85372DGROMMET, REAR WASHER HOSE

main85372-20010iAT151,CT150,ST15#..LB198310-198711

NO.1

main85372-20020iAT151,CT150,ST15#..LB198310-198711

NO.2

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iAT151,CT150,ST15#..LB198310-198711

L=1000

8271116080WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16080

8 parts on this diagram · 1 diagram in section
