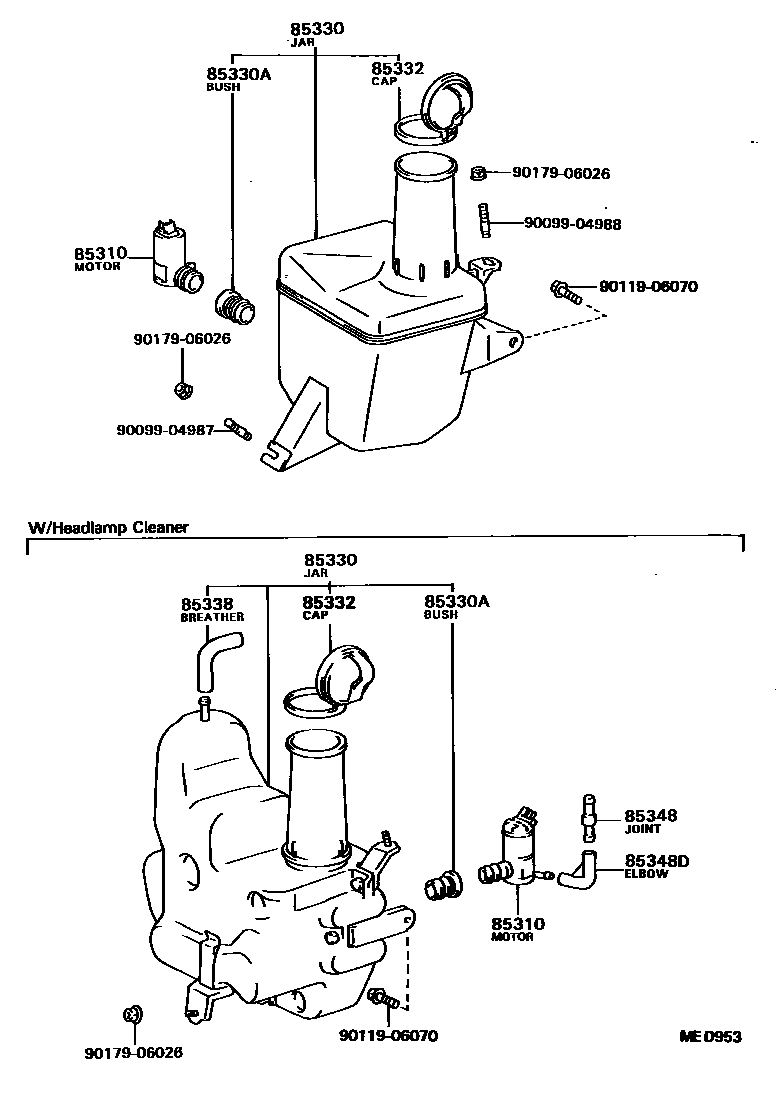

WINDSHIELD WASHER

0001 1 0002 1

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080iAT151,CT150,ST15#198310-198711

85330JAR ASSY, WINDSHIELD WASHER

main85331-12240iAT151,CT150,ST150..EUR198310-198711

W/*HC

main85331-20430iAT151,ST150..SED..TH198310-198711

main85331-20440iAT151,ST15#..LB..(GEN,SAA,TH)198310-198711

W/RR WIPER

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iAT151,CT150,ST15#198310-198711

85332CAP, WINDSHIELD WASHER JAR

main85332-20430iAT151..LB..4FC;AT151..SED..LHD..4FC;AT151,CT150,ST150..3FC,4F,5F198310-198406

sub85332-20431

main85332-20431iAT151,CT150,ST15#..GEN,SAA198406-198711

main85332-20440iAT151..LB..4FC;AT151..SED..LHD..4FC;AT151,CT150..(3FC,4F,5F)..EUR198310-198406

W/RR WIPER

main85332-20441iAT151,ST15#..LB..(GEN,SAA,TH)198406-198711

W/RR WIPER

85338HOSE, BREATHER

main85338-12240iAT151,CT150,ST150..EUR198310-198711

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250iAT151,CT150,ST15#198310-198711

3WAY

main85349-89122iAT151,CT150,ST150198310-198711

2WAY

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481iAT151,CT150,ST15#198705-198711

main85355-20070iAT151,CT150,ST15#198310-198705

sub85355-14481

9009904987

main90099-04987

9009904988

main90099-04988

9011906070

main90119-06070

9017906026

main90179-06026

11 parts on this diagram · 2 diagrams in section
