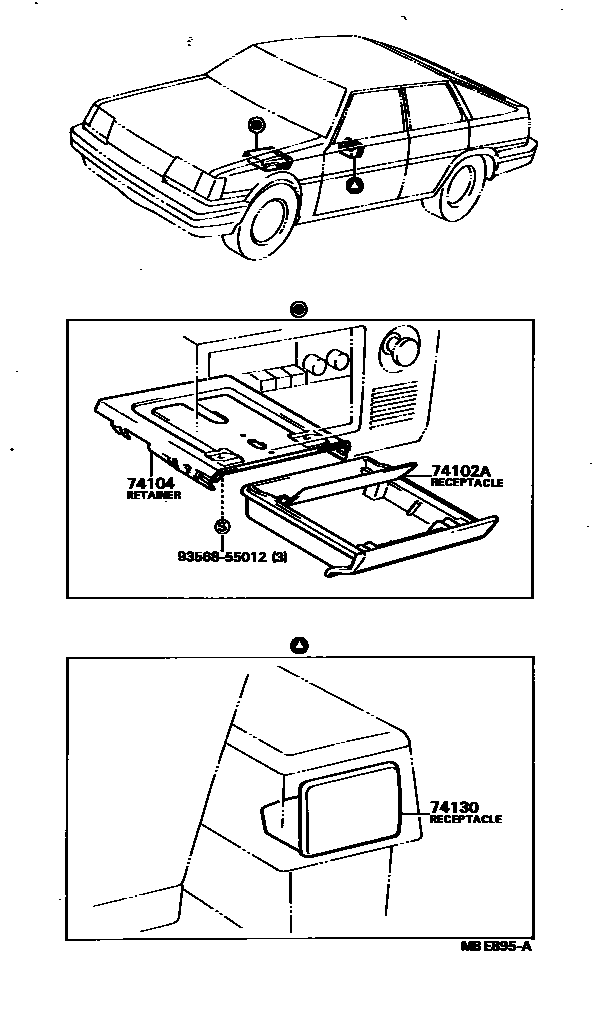

ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74102-20100-02iAT151,CT150,ST15#198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

main74102-20100-03iAT151,CT150,ST15#198310-198711

SHADOW GRAY,GRAY,TRIM1#

main74102-20100-04iAT151,CT150,ST150198310-198508

BLUE,BLUE,TRIM8#

main74102-20100-14iAT151,CT150,ST15#198508-198711

BLUE,BLUE,TRIM8#

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-20160iAT151,CT150,ST15#198310-198711

74130RECEPTACLE ASSY, REAR ASH

main74130-12040-14iAT151,CT150,ST150198310-198508

BLUE,BLUE,TRIM8#

main74130-12040-22iAT151,CT150,ST15#198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

main74130-12040-23iAT151,CT150,ST15#198310-198711

SHADOW GRAY,GRAY,TRIM1#

main74130-12040-34iAT151,CT150,ST15#198508-198711

BLUE,BLUE,TRIM8#

9356855012

main93568-55012

4 parts on this diagram · 1 diagram in section
