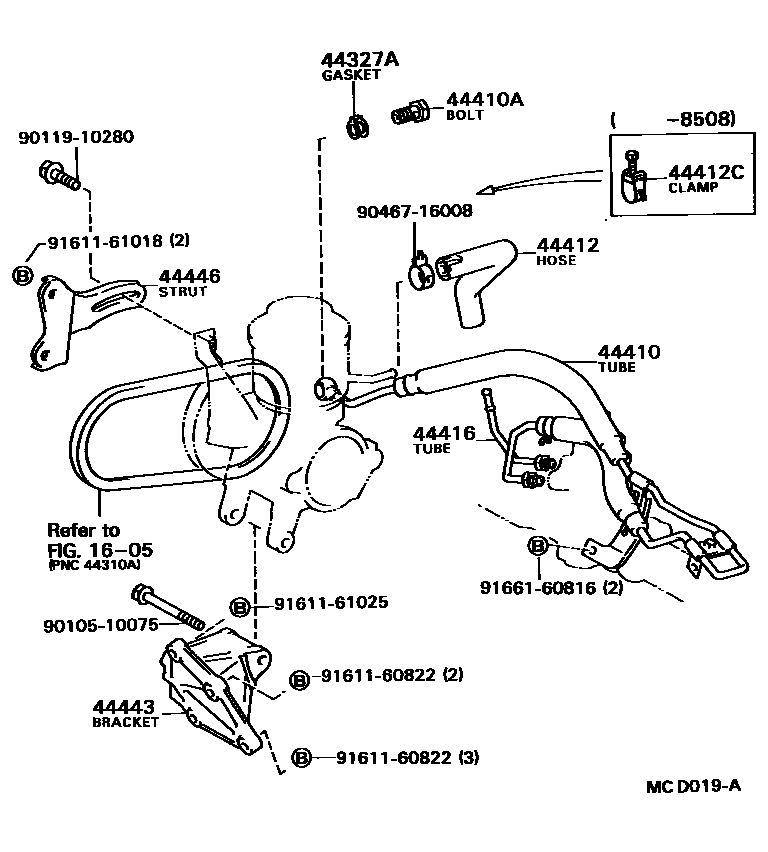

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1605V-BELT

→ Go to FIG 16-05

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010×2iST150..GL..TH198508-198608

44410TUBE ASSY, PRESSURE FEED

main44410-20061iST151;ST150..LB..RHD..5F;ST150..RHD..(3FC,4F);ST150..SED..5F..GL..TH;ST150..SED..RHD..5F..GEN198310-198711

main44410-20110iAT151..LHD..(DX,GL,XL)198310-198711

main44410-20160iCT150..RHD198310-198711

main44410-20180iAT151..LB..RHD..4FC;AT151..RHD..(3FC,4F,5F)..(GL,XL)198310-198404

main44410-20201iAT151..RHD..(GL,XL)..(EUR,GEN)198404-198711

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16008iAT151,CT150..(DX,GL,XL)..(EUR,GEN,SAA)198310-198711

44412HOSE, RETURN

main44412-12120iAT151..RHD..(GL,XL)..(EUR,GEN)198310-198711

44412CCLAMP(FOR RETURN HOSE)

main90460-01001iAT151..RHD..(GL,XL)198310-198508

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-12140iAT151..RHD..(GL,XL)..(EUR,GEN)198310-198711

main44416-20100iST150..RHD198310-198508

main44416-20110iST151;ST150..RHD..3FC;ST150..LB..RHD..5F;ST150..SED..5F..GL..TH;ST150..SED..RHD..5F..GEN198508-198711

44443BRACKET, PUMP

main44443-12050iAT151..(DX,GL,XL)..(EUR,GEN,SAA)198310-198711

main44443-20060iST150..GL..TH;ST15#..EUR,GEN,SAA198508-198711

main44443-32010iST150198310-198508

44446STRUT, ADJUSTING

main44446-12030iAT151..(DX,GL,XL)..(EUR,GEN,SAA)198310-198711

9010510075

main90105-10075

9011910280

main90119-10280

9046716008

main90467-16008

9161160822

main91611-60822

9161161018

main91611-61018

9161161025

main91611-61025

9166160816

main91661-60816

16 parts on this diagram · 6 diagrams in section
