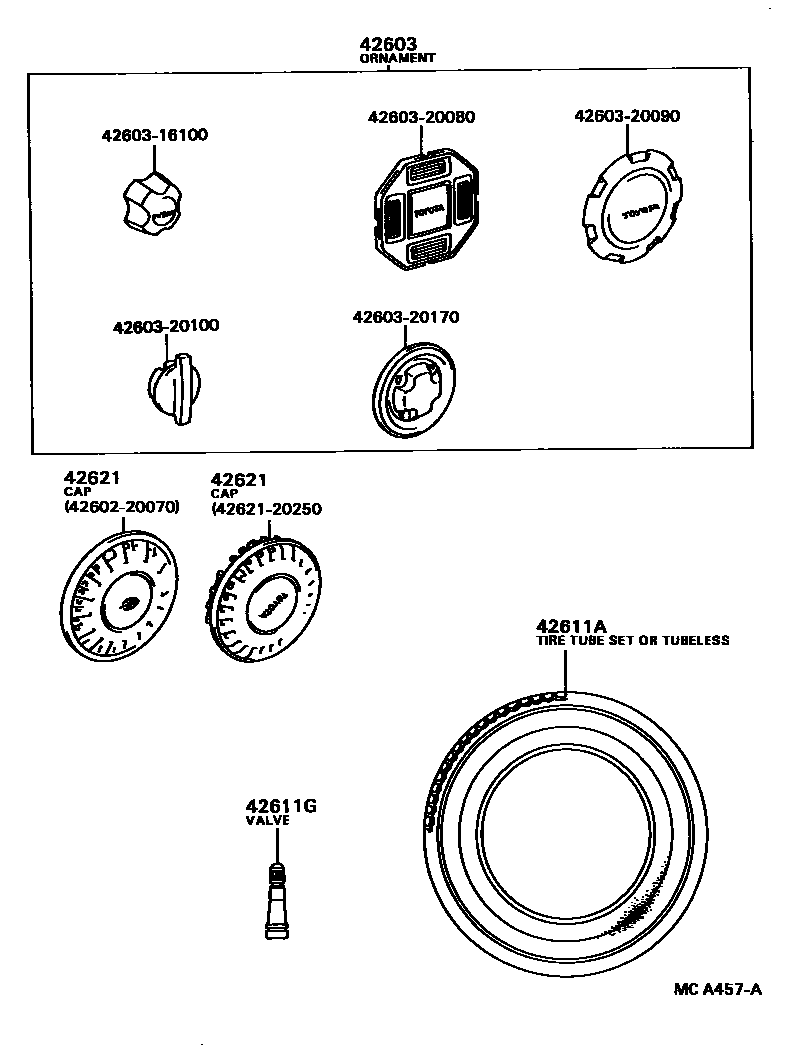

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-16100×4iAT151..STD198310-198508

main42603-20080×4iAT151,CT150,ST150..GL198310-198508

main42603-20090×4iAT151,CT150,ST150..DX,XL198310-198711

main42603-20100×4iAT151,CT150,ST150..DX,GL198310-198711

ALUMI WHEEL

42611ATIRE TUBE SET OR TUBELESS TIRE

main42605-20100×5iAT151,CT150,ST150..GEN198508-198711

165SR13 W/TUBE

main42652-14140×5iAT151,CT150,ST150..GEN; AT151,CT150..EUR198508-198711

165SR13 T/L,*(B),*(D),*(T)

main42652-14290×5iAT151,CT150,ST150..GEN; AT151,CT150..EUR198508-198711

165SR13 TUBELESS,*(Y)

main42652-16230×5iST150;AT151,CT150..EUR198310-198503

175/70SR13

main42652-16270×5iAT151,ST150..SAA; AT151..LHD..GL..GEN; ST150..LHD..GEN198503-198711

175/70SR13; 175/70SR13,MIDDLE EAST SPEC

main42652-20140×5iAT151,CT150..RHD..EUG198409-198711

165SR13,IRELAND SPEC

main42652-20230×5iAT151,CT150,ST150..LHD..GEN; AT151,ST150..SAA198503-198711

165SR13; 165SR13,MIDDLE EAST SPEC

main42652-20260×5iST150..EUG198508-198711

175/70HR13

main98938-65130×5iAT151,CT150,ST150..GEN198310-198508

165SR13 W/TUBE

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×5iAT151,CT150,ST15#198310-198711

42621CAP, WHEEL

main42602-20070×4iST150..GL..TH198508-198604

main42602-20071×4iST150..SED..RHD..GL198608-198711

THAILAND SPEC

main42621-20250×4iAT151..DX..FRG; CT150..LB..DX198701-198711

4260220070CAP SUB-ASSY, WHEEL

main42602-20070

4260316100ORNAMENT SUB-ASSY, WHEEL HUB

main42603-16100

4260320080ORNAMENT SUB-ASSY, WHEEL HUB

main42603-20080

4260320090ORNAMENT SUB-ASSY, WHEEL HUB

main42603-20090

4260320100ORNAMENT SUB-ASSY, WHEEL HUB

main42603-20100

4260320170ORNAMENT SUB-ASSY, WHEEL HUB

main42603-20170

4262120250CAP, WHEEL

main42621-20250

11 parts on this diagram · 2 diagrams in section
