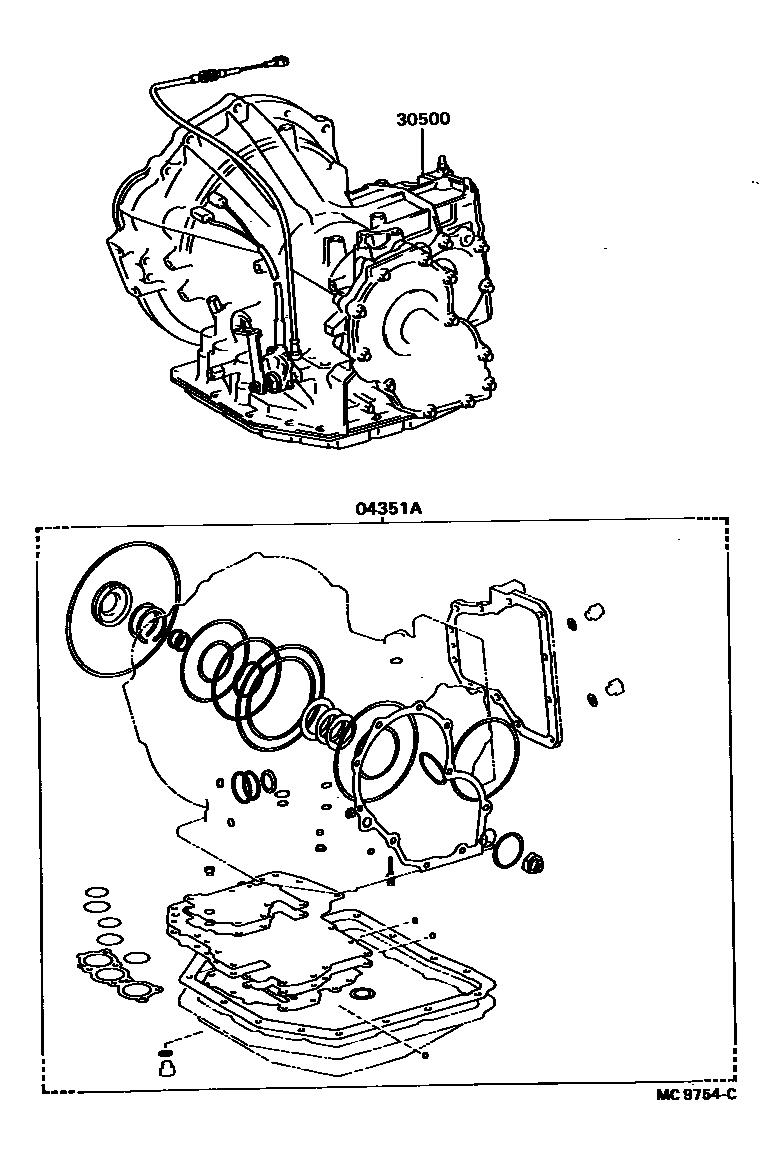

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-12021i198310-198405

main04351-12022i198405-198505

main04351-12040i198505-198711

main04351-12050i198505-198711

main04351-20041i198310-198405

main04351-20042i198405-198505

main04351-20050i198401-198405

main04351-20051i198405-198505

main04351-20060i198505-198711

main04351-20070i198508-198711

30500TRANSAXLE ASSY, AUTOMATIC

main30500-20020i198310-198508

*AXC=-482

main30500-20021i198508-198607

*AXC=-482

main30500-20022i198607-198609

*AXC=-482

main30500-20023i198609-198711

*AXC=-482

main30500-20030i198310-198409

main30500-20031i198409-198508

main30500-20032i198508-198704

main30500-20033i198704-198711

main30500-20040i198401-198409

main30500-20041i198409-198508

main30500-20043i198508-198704

main30500-20044i198704-198711

main30500-20080i198310-198409

main30500-20081i198409-198508

main30500-20082i198508-198704

main30500-20083i198704-198711

main30500-20090i198310-198508

*AXC=-442 MIDDLE EAST SPEC

main30500-20091i198508-198607

*AXC=-442 MIDDLE EAST SPEC

main30500-20092i198607-198609

*AXC=-442 MIDDLE EAST SPEC

main30500-20093i198609-198711

*AXC=-442 MIDDLE EAST SPEC

main30500-20110i198401-198409

main30500-20111i198409-198508

main30500-20112i198508-198704

main30500-20113i198704-198711

main30500-20201i198508-198711

main30500-20211i198508-198711

2 parts on this diagram · 3 diagrams in section
