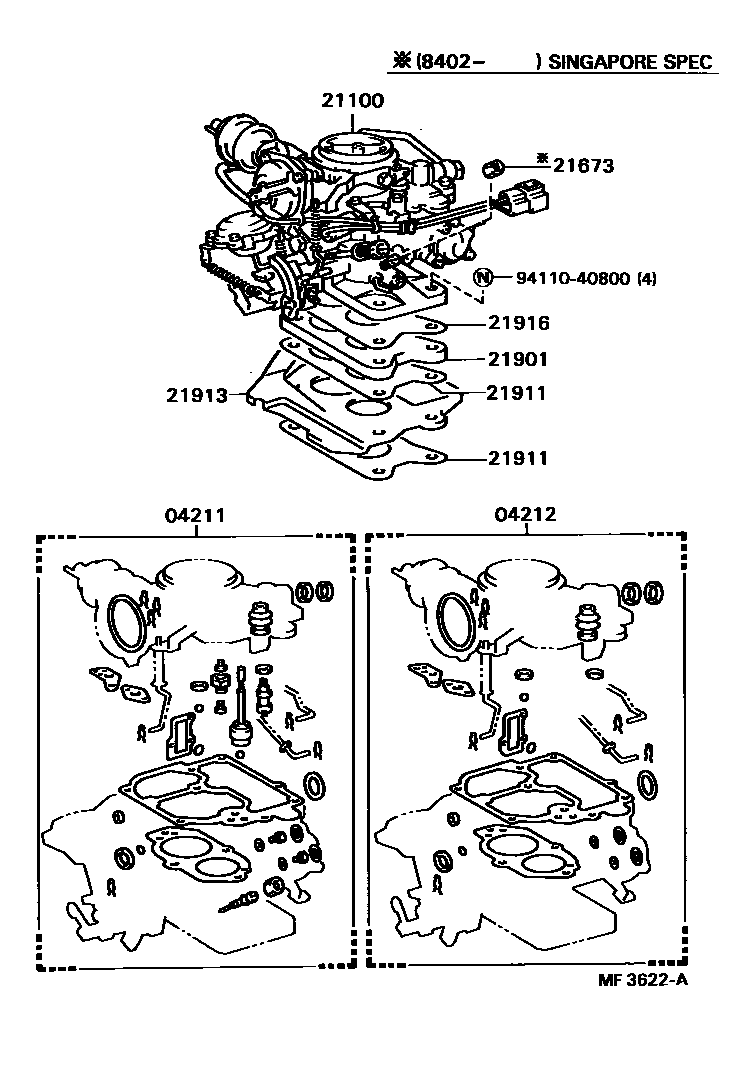

CARBURETOR ASSEMBLY

Parts diagram

04211CARBURETOR KIT

main04211-14070i198310-198508

main04211-14080i198310-198411

main04211-14090i198310-198407

main04211-16050i198407-198608

main04211-16070i198411-198711

main04211-16080i198508-198711

SINGAPORE SPEC

main04211-16120i198601-198711

main04211-63040i198310-198711

main04211-63050i198310-198711

main04211-63060i198508-198608

NEW ZEALAND SPEC

main04211-63061i198608-198711

NEW ZEALAND SPEC

04212GASKET KIT, CARBURETOR

main04212-14020i198407-198508

main04212-16020i198608-198711

main04212-16040i198407-198608

main04212-16050i198508-198711

SINGAPORE SPEC

main04212-63010i198310-198711

21100CARBURETOR ASSY

main21100-14130i198310-198508

main21100-14150i198402-198508

SINGAPORE SPEC

main21100-16060i198310-198411

main21100-16061i198411-198610

main21100-16062i198610-198711

main21100-16070i198310-198608

main21100-16190i198508-198711

main21100-16210i198608-198711

main21100-16230i198508-198711

SINGAPORE SPEC

main21100-16260i198601-198711

main21100-63140i198310-198711

main21100-63150i198310-198711

main21100-63180i198310-198711

main21100-63190i198310-198711

main21100-63200i198508-198608

NEW ZEALAND SPEC

main21100-63201i198608-198711

NEW ZEALAND SPEC

main21100-63210i198508-198608

NEW ZEALAND SPEC

main21100-63211i198608-198711

NEW ZEALAND SPEC

21673CAP, IDLE LIMIT

main21673-13280i198402-198711

SINGAPORE SPEC

21901INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1

main21901-15012i198310-198608

main21901-15030i198608-198711

main21901-63020i198310-198711

21911GASKET, CARBURETOR

main21911-63010×3i198310-198711

main21916-15030×2i198310-198711

21913INSULATOR, CARBURETOR HEAT, NO.2

main21902-63021i198310-198711

main21913-15030i198310-198711

21916GASKET, CARBURETOR, NO.2

main21911-15030i198608-198711

main21914-15020i198310-198608

9411040800

main94110-40800

9 parts on this diagram · 3 diagrams in section
