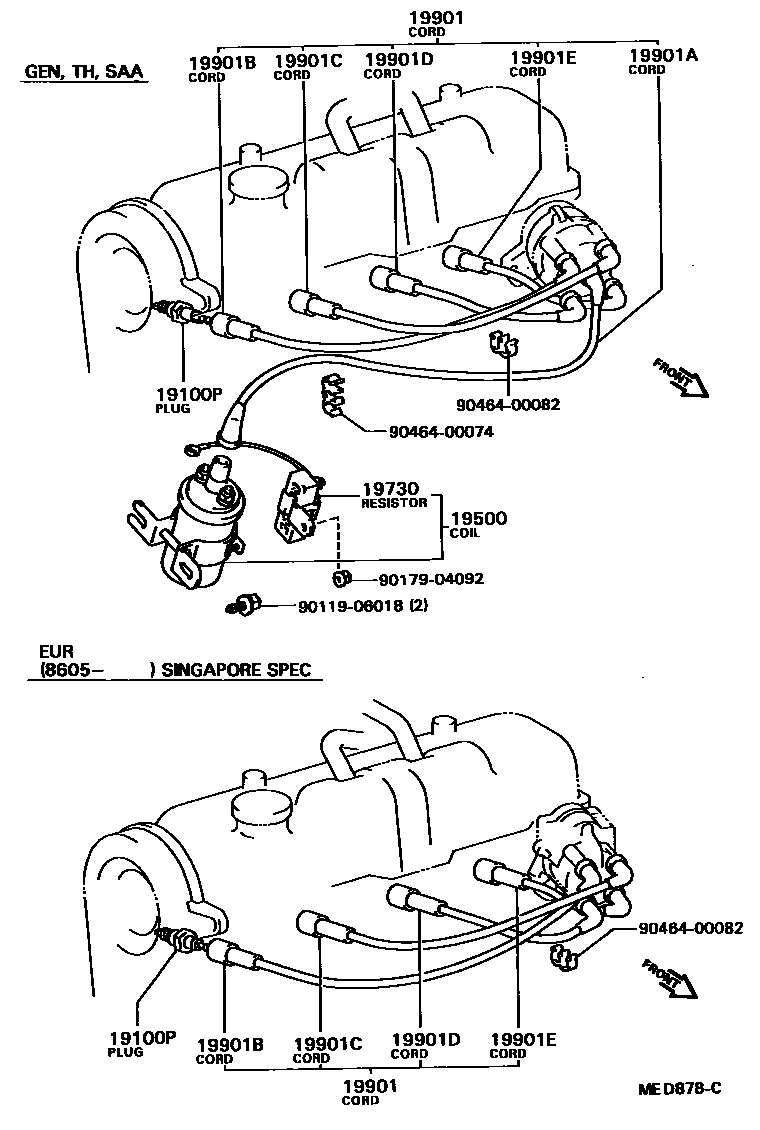

Toyota CORONA/CARINA 2 — IGNITION COIL & SPARK PLUG / GLOW PLUG
19100PPLUG, SPARK
19730RESISTOR, IGNITION COIL
19901CORD SET, COIL & SPARK, W/RESISTIVE
19901ACORD, COIL RESISTIVE
19901BCORD, SPARK PLUG RESISTIVE, NO.1
19901CCORD, SPARK PLUG RESISTIVE, NO.2
19901DCORD, SPARK PLUG RESISTIVE, NO.3
19901ECORD, SPARK PLUG RESISTIVE, NO.4
9011906018
9017904092
9046400074
9046400082
13 parts on this diagram · 4 diagrams in section
IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota CORONA/CARINA 2
This section contains 19 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota CORONA/CARINA 2. Key components include: PLUG, SPARK, COIL ASSY, IGNITION, RESISTOR, IGNITION COIL, PLUG ASSY, GLOW, GROMMET, SCREW(FOR GLOW PLUG).
