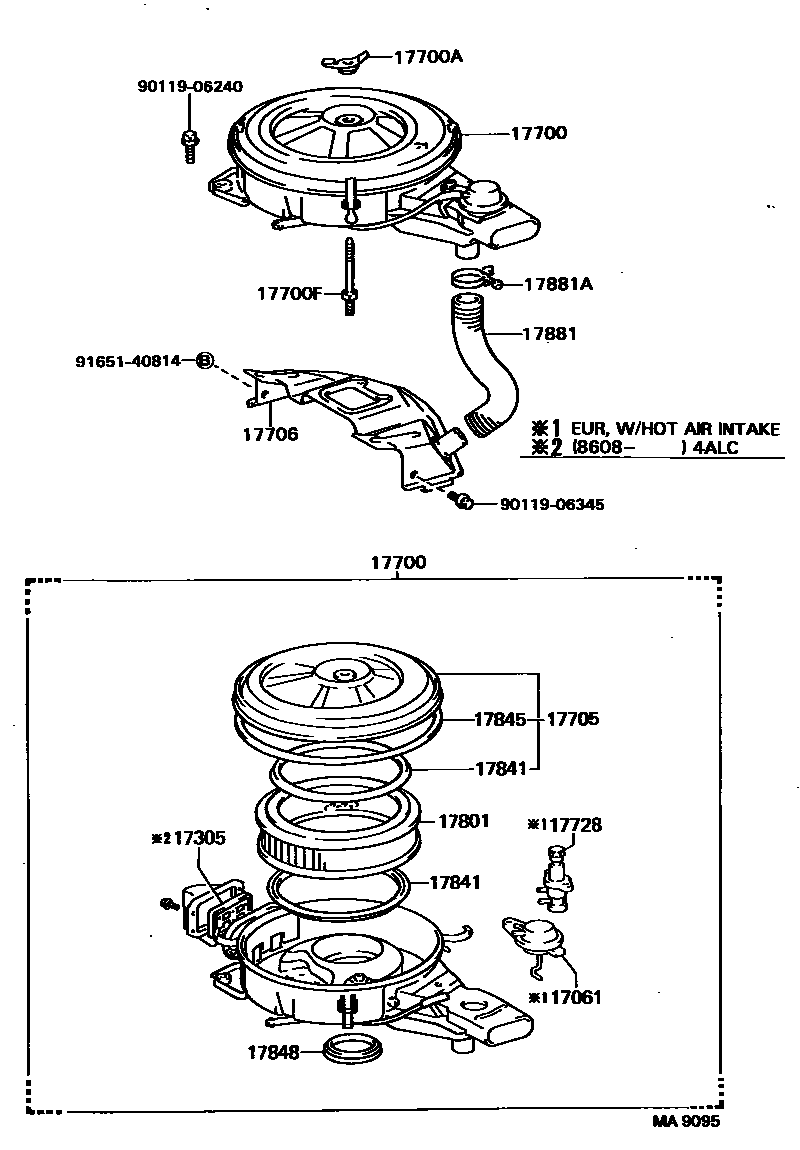

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

17061DIAPHRAGM SUB-ASSY

main17061-15030i4AL..AT151..LHD..GEN198310-198711

W/HOT AIR INTAKE

main17061-63020i1SL..ST150..GEN198310-198711

W/HOT AIR INTAKE

17305VALVE SUB-ASSY, REED

main17305-16010i4ALC..AT151198608-198711

17700CLEANER ASSY, AIR

main17700-16040i4AL..AT151..EUG198310-198711

main17700-16050i4AL..AT151..GEN,SAA,TH198310-198711

main17700-16070i4AL..AT151..LHD..GEN198310-198711

W/HOT AIR INTAKE

main17700-16130i4ALC..AT151198310-198608

main17700-16190i4ALC..AT151198608-198711

main17700-63050i1SL..ST150198310-198711

main17700-63060i1SL..ST150198310-198711

W/HOT AIR INTAKE

main17700-63110i1SEL..ST150198508-198711

main17700-64110i2CL..CT150..EUG198310-198604

sub17700-64111

main17700-64111i2CL..CT150198604-198711

main17700-64120i2CL..CT150..GEN198310-198411

sub17700-64110

main17700-74080i2SEL..ST151198508-198711

17700ANUT, WING(FOR AIR CLEANER)

main90175-06003i4AL#..AT151198310-198711

main90175-06011i1SL..ST150198310-198711

17700FBOLT, STUD(FOR AIR CLEANER SETTING)

main90116-06026i1SL..ST150198310-198711

main90116-06039i4AL#..AT151198310-198711

17705CAP SUB-ASSY, AIR CLEANER

main17705-16050i4AL#..AT151198310-198711

main17705-63030i1SL..ST150198310-198711

main17705-63070i1SEL..ST150198508-198711

main17705-64030i2CL..CT150198310-198604

main17705-64080i2CL..CT150198604-198711

sub17705-64030

main17705-74060i2SEL..ST151198508-198603

sub17705-74061

main17705-74061i2SEL..ST151198603-198711

17706INLET SUB-ASSY, AIR CLEANER, NO.2

main17902-16010i4ALC..AT151198310-198711

sub17902-16011

main17902-16020i4AL..AT151198310-198711

sub17902-16021

17728VALVE, THERMOSTATIC

main17728-15020i4AL#..AT151..EUR198310-198711

main17728-24010i4AL..AT151..LHD..GEN198310-198708

W/HOT AIR INTAKE

sub17728-24011

main17728-24011i4AL..AT151..LHD..GEN198708-198711

W/HOT AIR INTAKE

main17728-63020i1SL..ST150..GEN198310-198711

W/HOT AIR INTAKE

main17728-63030i1SL..ST150198310-198711

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-15010i4AL#..AT151198310-198711

main17801-25010i1SL..ST150198310-198711

main17801-64010i2CL..CT150..EUG198310-198711

main17801-64020i2CL..CT150..GEN198310-198411

sub17801-64010

main17801-74010i1SEL,2SEL..ST15#198508-198711

sub17801-55010

17841GASKET, FILTER ELEMENT

main17841-15010i4AL#..AT151198310-198711

main17841-63010i1SL..ST150198310-198711

17845GASKET, AIR CLEANER CAP

main17845-37020i1SL..ST150198310-198711

*G,L=980

main17845-61011i4AL#..AT151198310-198711

*G,L=1060

17848GASKET, AIR CLEANER TO CARBURETOR

main17848-37011i1SL..ST150198310-198711

main90430-63001i4AL#..AT151198310-198711

sub17848-10020

17881HOSE, AIR CLEANER, NO.1

main17880-64030i2CL..CT150198310-198711

main17881-13120i1SL..ST150..GEN198502-198711

W/HOT AIR INTAKE

sub17881-13121

main17881-16110i4AL..AT151..LHD..GEN198508-198707

W/HOT AIR INTAKE

sub17881-16210

main17881-16210i4AL..AT151..LHD..GEN198707-198711

W/HOT AIR INTAKE

main17881-63010i4AL#..AT151..EUR;4AL..AT151..LHD..GEN198310-198502

W/HOT AIR INTAKE

sub17881-74040

main17881-63020i1SL..ST150..GEN198310-198502

W/HOT AIR INTAKE

sub17881-13120

main17881-74010i1SEL..ST150198508-198711

main17881-74040i4AL#..AT151..EUR;4AL..AT151..LHD..GEN198502-198508

W/HOT AIR INTAKE

main17881-74090i2SEL..ST151198508-198711

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90929-01117i4ALC..AT151198608-198711

main96111-10460i1SL..ST150..GEN198310-198711

W/HOT AIR INTAKE

main96111-10460i4AL#..AT151..EUR198310-198711

main96111-10670i2CL..CT150198310-198711

main96111-10710i2SEL..ST151198508-198711

THROTLE BODY SIDE

main96111-10800i2SEL..ST151198508-198711

AIR FLOW METER SIDE

9011906240

main90119-06240

9011906345

main90119-06345

9165140814

main91651-40814

17 parts on this diagram · 7 diagrams in section
