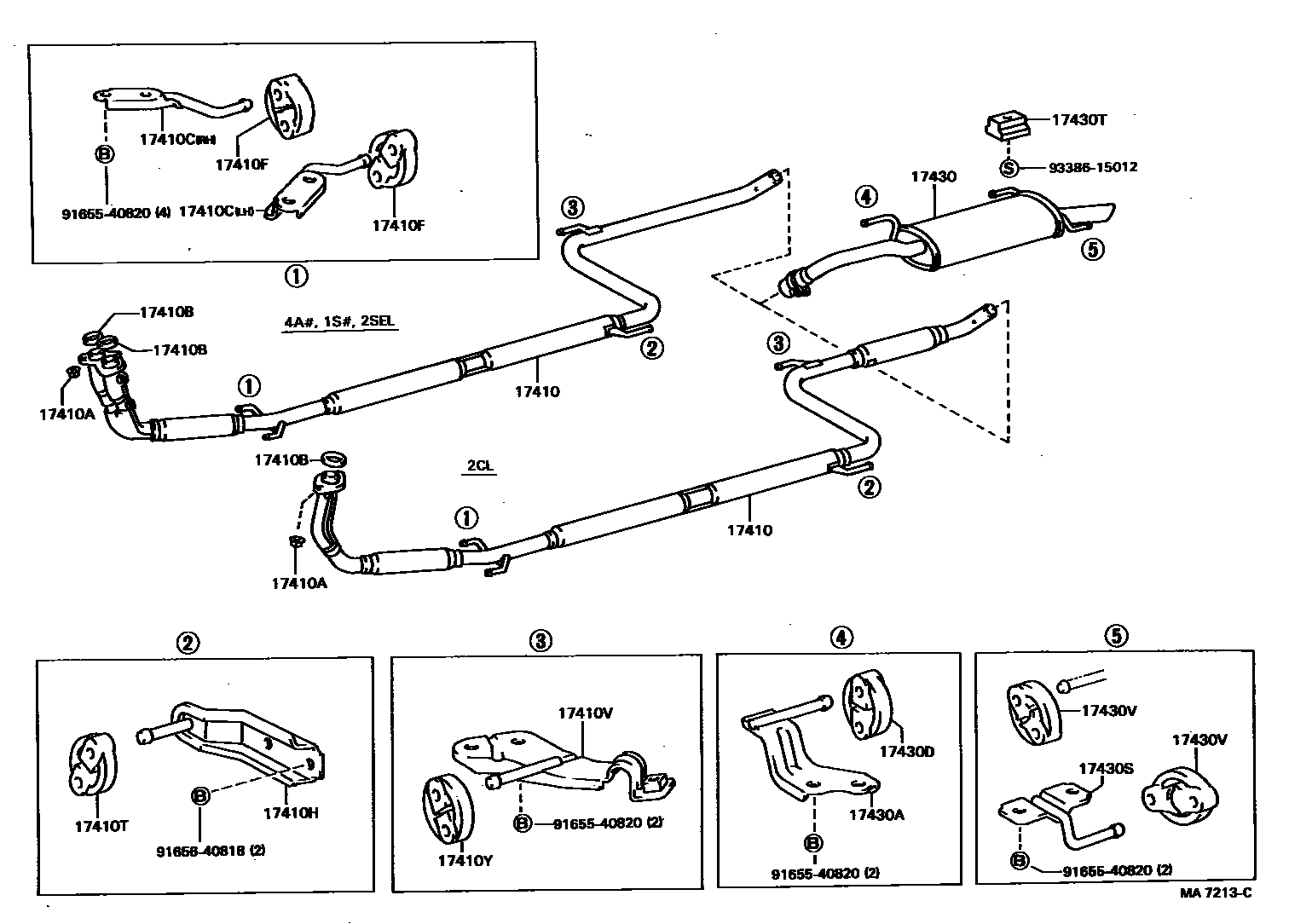

EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-16140i4AL..AT151198310-198711

main17410-16150i4ALC..AT151198310-198608

main17410-16230i4ALC..AT151198608-198711

main17410-63070i1SL,2SEL..ST15#198310-198711

main17410-63130i1SEL..ST150198508-198711

main17410-64060i2CL..CT150198310-198711

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10028×3i4AL..AT151..LB..4FC;4AL..AT151..SED..LHD..4FC;4AL#,2CL,1SL..AT151,CT150,ST150..3FC,4F,5F198310-198402

main90179-10070×3i4AL#,2CL,1S#,2SEL..AT151,CT150,ST15#198402-198711

17410BGASKET, EXHAUST PIPE

main90917-06001×2i4AL,1S#,2SEL..AT151,ST15#198310-198711

main90917-06004i4ALC,2CL..AT151,CT150198310-198711

17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17504-63010i4ALC..AT151..SDZ;4AL,1S#,2SEL..AT151,ST15#198310-198711

RH

main17504-64020i2CL..CT150198310-198711

RH

main17505-63020i4ALC..AT151..SDZ;4AL,1S#,2SEL..AT151,ST15#198310-198711

LH

main17505-64020i2CL..CT150198310-198711

LH

17410FBOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)

main17505-64030×2i2CL..CT150198310-198711

main17565-63030×2i4ALC..AT151..SDZ;4AL,1S#,2SEL..AT151,ST15#198310-198711

17410HBRACKET, EXHAUST PIPE FRONT (FOR CENTER)

main17506-63010i4ALC..AT151..SDZ;4AL,2CL,1S#,2SEL..AT151,CT150,ST15#198310-198711

17410TBOLT OR RING, EXHAUST PIPE FRONT (FOR CENTER)

main17565-63060i2CL..CT150; 4ALC..AT151..SDZ;4AL,1S#,2SEL..AT151,ST15#198310-198711

17410VBRACKET, EXHAUST PIPE FRONT (FOR REAR)

main17503-16110i4ALC..AT151198608-198711

CTR

main17504-63010i4ALC..AT151198608-198711

RH

main17505-63020i4ALC..AT151198608-198711

LH

main17507-63020i4ALC..AT151..SDZ;4AL,2CL,1S#,2SEL..AT151,CT150,ST15#198310-198711

17410YBOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)

main17565-63030i4ALC..AT151198608-198711

main17565-63060i2CL..CT150; 4ALC..AT151..SDZ;4AL,1S#,2SEL..AT151,ST15#198310-198711

17430PIPE ASSY, EXHAUST, TAIL

main17430-16090i4ALC..AT151..SDZ;4AL..AT151..EUR,SAA198310-198711

main17430-16340i4ALC..AT151198608-198711

main17430-63110i1SEL..ST150198508-198711

main17430-64200i1SL,2SEL..ST15#198508-198604

17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)

main17508-63010i4AL#,2CL,1S#,2SEL..AT151,CT150,ST15#198310-198711

17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)

main17565-63020i4AL#,2CL,1S#,2SEL..AT151,CT150,ST15#198310-198711

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17509-63040i4AL#,2CL,1S#,2SEL..AT151,CT150,ST15#198310-198711

17430TCUSHION, EXHAUST TAILPIPE (FOR REAR)

main17591-36010i4AL#,2CL,1S#,2SEL..AT151,CT150,ST15#198310-198711

17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)

main17565-63030×2i2CL..CT150198310-198711

main17565-63070×2i4AL#,1SL..AT151,ST150198310-198401

main17565-63071×2i4AL#,1S#,2SEL..AT151,ST15#198401-198711

9165540820

main91655-40820

9165640818

main91656-40818

9338615012

main93386-15012

18 parts on this diagram · 2 diagrams in section
