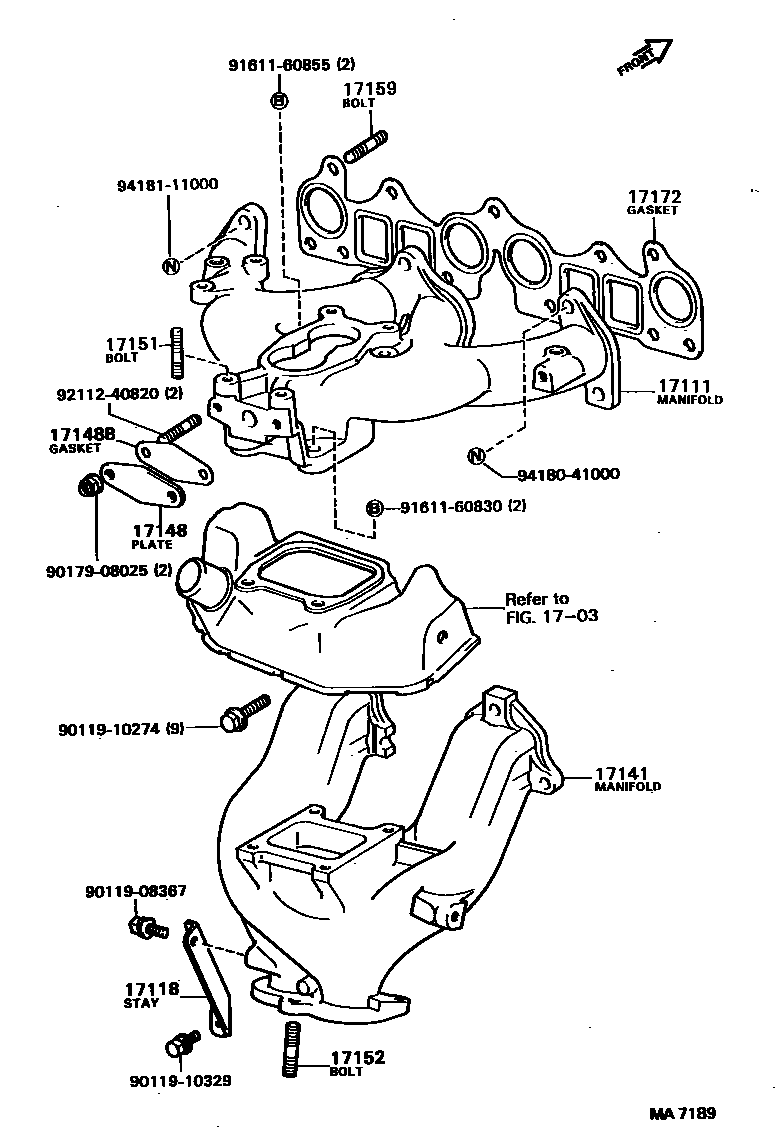

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1

1703

17111MANIFOLD, INTAKE

main17111-15030i4AL#..AT151198310-198711

main17111-63020i1SL..ST150198310-198512

main17111-63040i1SL..ST150198512-198711

main17111-64040i2CL..CT150198310-198508

sub17111-64090

main17111-64090i2CL..CT150198508-198711

main17111-74011i1SEL,2SEL..ST15#198508-198711

17118STAY, MANIFOLD

main17118-16020i4ALC..AT151198310-198711

main17118-16030i4AL..AT151198310-198711

main17118-63030i1SEL,2SEL..ST15#198508-198711

17141MANIFOLD, EXHAUST

main17140-16010i4ALC..AT151198310-198711

main17141-16030i4AL..AT151198310-198711

main17141-63050i1SL..ST150198310-198503

sub17141-63051

main17141-63051i1SL..ST150198503-198711

main17141-64021i2CL..CT150198310-198508

sub17141-64070

main17141-64070i2CL..CT150198508-198711

main17141-74011i1SEL,2SEL..ST15#198508-198711

17148PLATE, EXHAUST MANIFOLD(FOR EGR INLET)

main25617-14010i4AL..AT151198310-198711

main25617-74020i1SEL,2SEL..ST15#198508-198711

17148BGASKET, EGR INLET

main25627-74010i1SEL,2SEL..ST15#198508-198711

sub25627-74011

main25629-15011i4AL..AT151198310-198711

17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)

main92112-40832i4AL#..AT151198310-198711

main92122-40832i1SL..ST150198310-198711

main92122-60825i1SEL,2SEL..ST15#198508-198711

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10058i2CL..CT150198310-198711

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-10095i2CL..CT150198310-198711

EXHAUST MANIFOLD SIDE

main90116-10123i1SL..ST150198310-198711

main92112-61032i4AL#..AT151198310-198711

main92122-60820i2CL..CT150198310-198711

INTAKE MANIFOLD SIDE

17172GASKET, MANIFOLD TO CYLINDER HEAD

main17172-14010i4AL#..AT151198310-198711

sub17172-14011

main17172-15010i4ALC..AT151198608-198711

sub17172-14011

main17172-63010i1SEL,2SEL..ST15#198508-198711

sub17172-63011

main17172-63020i1SL..ST150198310-198512

sub17172-63021

9011908367

main90119-08367

9011910274

main90119-10274

9011910329

main90119-10329

9017908025

main90179-08025

9161160830

main91611-60830

9161160855

main91611-60855

9211240820

main92112-40820

9418041000

main94180-41000

9418111000

main94181-11000

19 parts on this diagram · 5 diagrams in section
