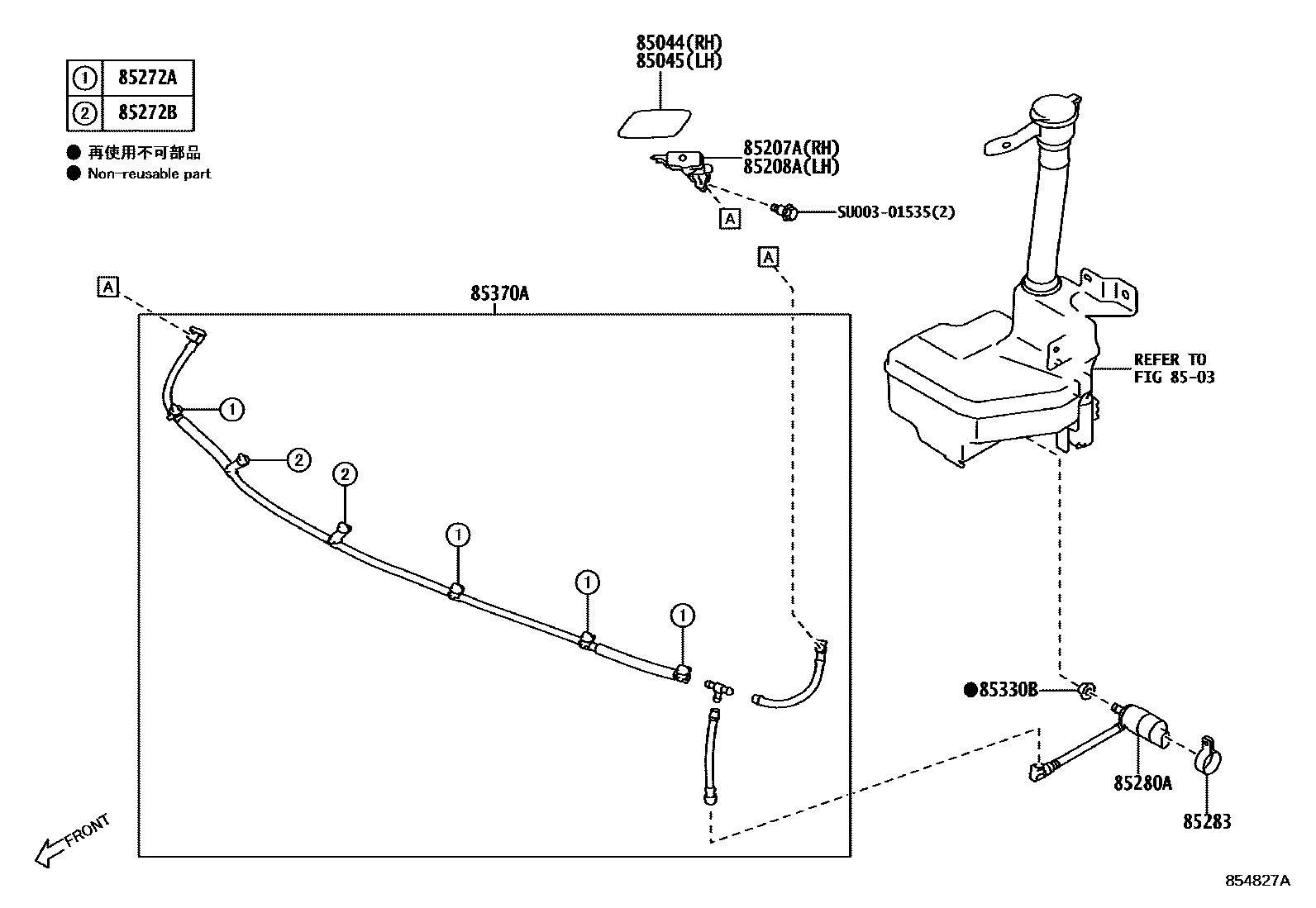

Toyota GR 86 — HEADLAMP CLEANER
8503WINDSHIELD WASHER
85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH
85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85272ACLAMP, HEADLAMP CLEANER, NO.1
85272BCLAMP, HEADLAMP CLEANER, NO.2
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85283BRACKET, HEADLAMP CLEANER WASHER
85330BBUSH, HEADLAMP CLEANER WASHER JAR
85370AHOSE ASSY, HEADLAMP CLEANER WASHER, NO.1
SU00301535
12 parts on this diagram · 1 diagram in section
HEADLAMP CLEANER for Toyota GR 86
This section contains 12 genuine Toyota parts for the HEADLAMP CLEANER system of the Toyota GR 86. Key components include: WINDSHIELD WASHER, NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH, NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH, ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH, ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH.
