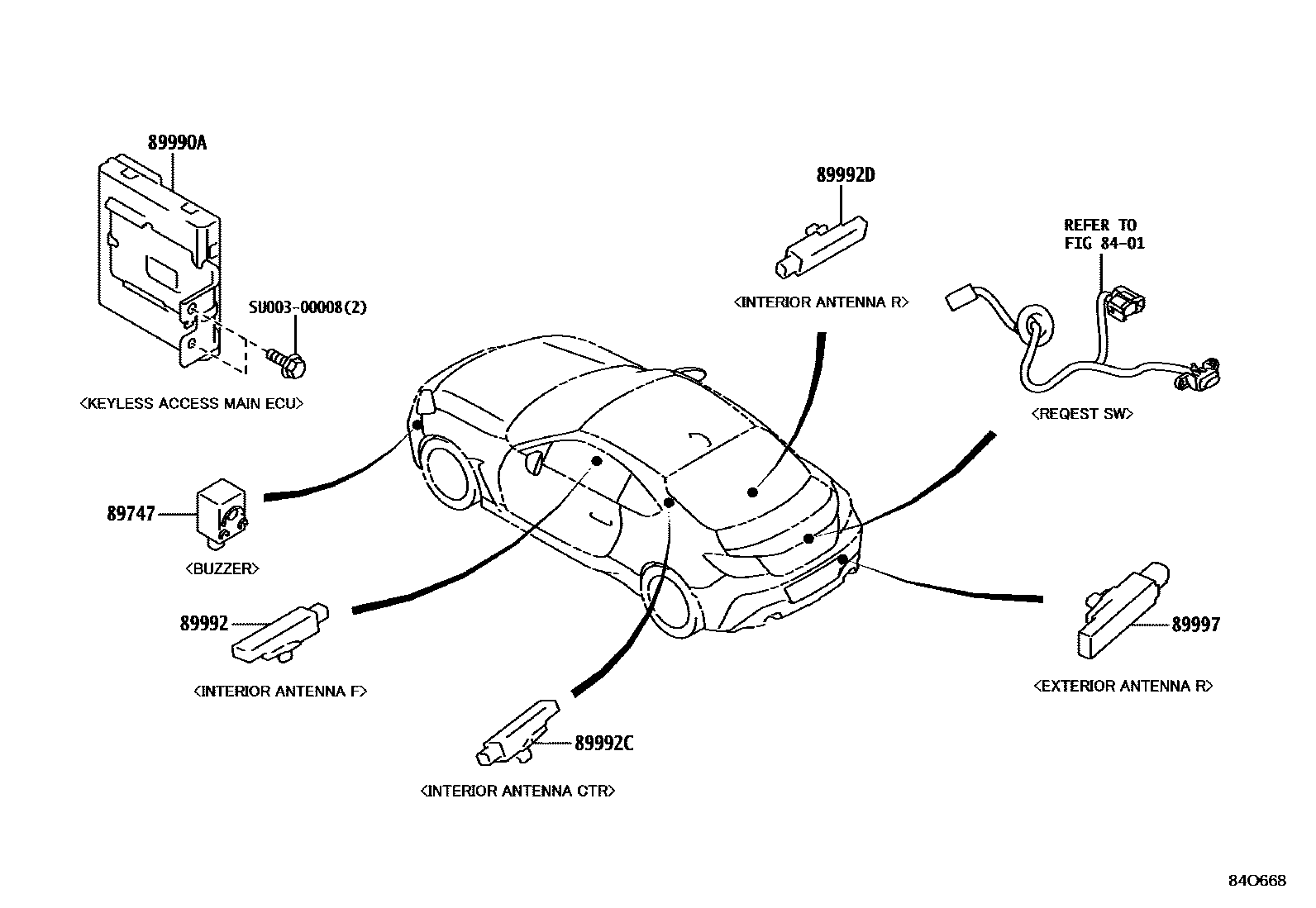

WIRELESS DOOR LOCK

8401SWITCH & RELAY & COMPUTER

89747BUZZER, WIRELESS DOOR LOCK

mainSU00308526i202206-202310

89990ACOMPUTER ASSY, SMART KEY

mainSU00310029i202203-202206

mainSU00311521i202311

mainSU00312011i202408

DESTINATION CODE=K2; DESTINATION CODE=KA; DESTINATION CODE=KC; DESTINATION CODE=KY

mainSU00312012i202408

mainSU00310308supersedes SU00310309i202203-202206

DESTINATION CODE=EK; DESTINATION CODE=ER; DESTINATION CODE=K2; DESTINATION CODE=KA; DESTINATION CODE=KC; DESTINATION CODE=KY

mainSU00310309i202203-202206

DESTINATION CODE=KV

mainSU00311042i202208-202310

DESTINATION CODE=KV

mainSU00311520i202311

DESTINATION CODE=K2; DESTINATION CODE=KA; DESTINATION CODE=KC; DESTINATION CODE=KY

mainSU00311522i202311-202406

DESTINATION CODE=KV

mainSU00312009i202406

DESTINATION CODE=KV

mainSU00312013i202408

DESTINATION CODE=KV

89992OSCILLATOR, INDOOR ELECTRICAL KEY

mainSU00310706i202206-202310

mainSU00312047i202404

89992COSCILLATOR, INDOOR ELECTRICAL KEY, NO.2

mainSU00310707i202311-202403

mainSU00312048i202404

89992DOSCILLATOR, INDOOR ELECTRICAL KEY, NO.3

mainSU00310707i202203-202206

mainSU00312048i202408

89997ANTENNA, ELECTRICAL KEY

mainSU00310708i202206-202310

mainSU00312014i202401

SU00300008

8 parts on this diagram · 2 diagrams in section
