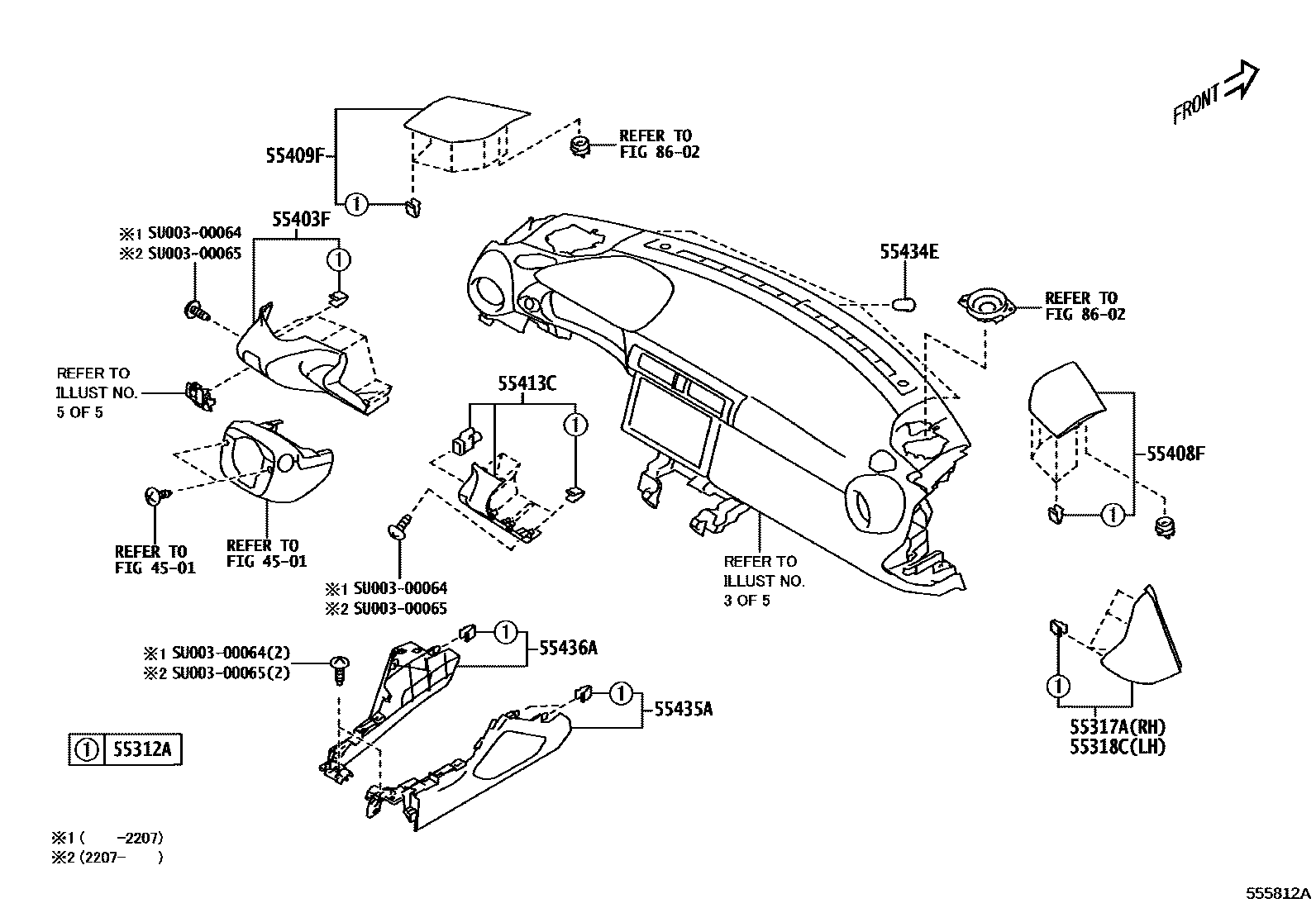

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

4501STEERING COLUMN & SHAFT

→ Go to FIG 45-01

55312ACLIP, INSTRUMENT PANEL

mainSU00302967×98iZN8..D202408

55317APANEL, INSTRUMENT SIDE, RH

mainSU00308695iZN8..D202408

55318CPANEL, INSTRUMENT SIDE, LH

mainSU00308696iZN8..D202408

55403HOOD SUB-ASSY, METER

mainSU00308714iZN8..RHD..BASE..C202311

mainSU00308715iZN8..RHD..HIGH202203-202206

mainSU00309813iZN8..LHD..BASE202203-202206

mainSU00309814iZN8..LHD..(HIGH,ORA)..B202206-202310

55403FPANEL SUB-ASSY, INSTRUMENT PANEL FINISH

mainSU00308728iZN8..RHD202203-202206

mainSU00309822iZN8..LHD202203-202206

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

mainSU00308711iZN8..D202408

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

mainSU00308712iZN8..C202311

55413CPANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.2

mainSU00308694iZN8..RHD..D202408

mainSU00309804iZN8..LHD..B202206-202310

55434ECAP

mainSU00302961×3iZN8..B202206-202310

55435APANEL, INSTRUMENT PANEL FINISH, END RH

mainSU00308725iZN8..RHD..B202206-202310

mainSU00310996iZN8..LHD202203-202206

55436APANEL, INSTRUMENT PANEL FINISH, END LH

mainSU00309819iZN8..LHD..D202408

mainSU00310995iZN8..RHD..B202206-202310

8602SPEAKER

→ Go to FIG 86-02

SU00300064

mainSU003-00064

SU00300065

mainSU003-00065

15 parts on this diagram · 10 diagrams in section
