31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

mainSU00301627×2i202206-202310

mainSU00306296×4i202311

4POD TYPE

mainSU00312086×2i202401

2POD TYPE

4303FRONT AXLE HUB

→ Go to FIG 43-03

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

mainSU00300582×2i202206-202310

mainSU00306295×4i202408

4POD TYPE

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

mainSU00306369×4i202408

M12X54

mainSU00307586×4i202311

M12-19,##

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

mainSU00305830×2i202311

2POD TYPE

mainSU00306288×4i202408

4POD TYPE

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

mainSU00305829×2i202408

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

mainSU00300578×2i202311

OPTION CODE=AB; OPTION CODE=AD; OPTION CODE=AX; OPTION CODE=FB; OPTION CODE=FD; OPTION CODE=FX; OPTION CODE=XB; OPTION CODE=XD; OPTION CODE=XX

mainSU00306290×2i202408

OPTION CODE=FF; OPTION CODE=FH

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

mainSU00300577×2i202408

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

mainSU00300572i202311

OPTION CODE=AB; OPTION CODE=AD; OPTION CODE=AX; OPTION CODE=FB; OPTION CODE=FD; OPTION CODE=FX; OPTION CODE=XB; OPTION CODE=XD; OPTION CODE=XX

mainSU00306297i202408

OPTION CODE=FF; OPTION CODE=FH

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

mainSU00300575×4i202206-202310

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

mainSU00300573i202203-202206

mainSU00306297i202408

OPTION CODE=FF; OPTION CODE=FH

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

mainSU00310486i202203-202206

mainSU00311424i202408

OPTION CODE=FF; OPTION CODE=FH

mainSU00312031i202408

OPTION CODE=AB; OPTION CODE=AD; OPTION CODE=AX; OPTION CODE=FB; OPTION CODE=FD; OPTION CODE=FX; OPTION CODE=XB; OPTION CODE=XD; OPTION CODE=XX

47731PISTON, FRONT DISC BRAKE

mainSU00300634×4i202203-202206

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

mainSU00306293×2i202203-202206

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

mainSU00306294×2i202203-202206

47750CYLINDER ASSY, DISC BRAKE, LH

mainSU00310502i202203-202206

mainSU00311425i202408

OPTION CODE=FF; OPTION CODE=FH

mainSU00312032i202401

OPTION CODE=AB; OPTION CODE=AD; OPTION CODE=AX; OPTION CODE=FB; OPTION CODE=FD; OPTION CODE=FX; OPTION CODE=XB; OPTION CODE=XD; OPTION CODE=XX

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

mainSU00300576×2i202203-202206

47781COVER, DISC BRAKE DUST, FRONT RH

mainSU00300583i202203-202206

mainSU00311422i202408

OPTION CODE=FF; OPTION CODE=FH

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

mainSU00302783×6i202203-202206

47782COVER, DISC BRAKE DUST, FRONT LH

mainSU00300584i202311

OPTION CODE=AB; OPTION CODE=AD; OPTION CODE=AX; OPTION CODE=FB; OPTION CODE=FD; OPTION CODE=FX; OPTION CODE=XB; OPTION CODE=XD; OPTION CODE=XX

mainSU00311423i202408

OPTION CODE=FF; OPTION CODE=FH

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

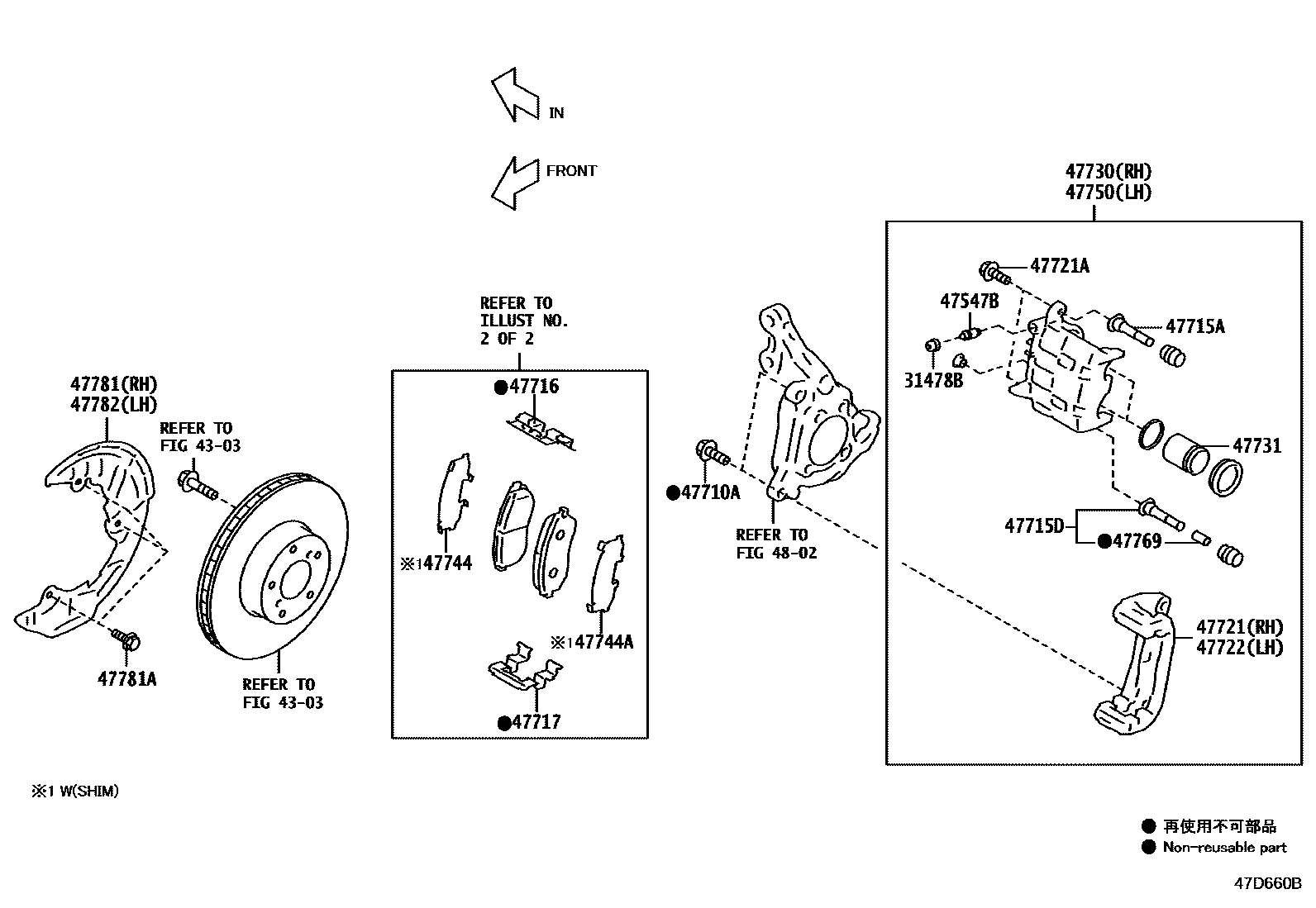

FRONT DISC BRAKE CALIPER & DUST COVER
