TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

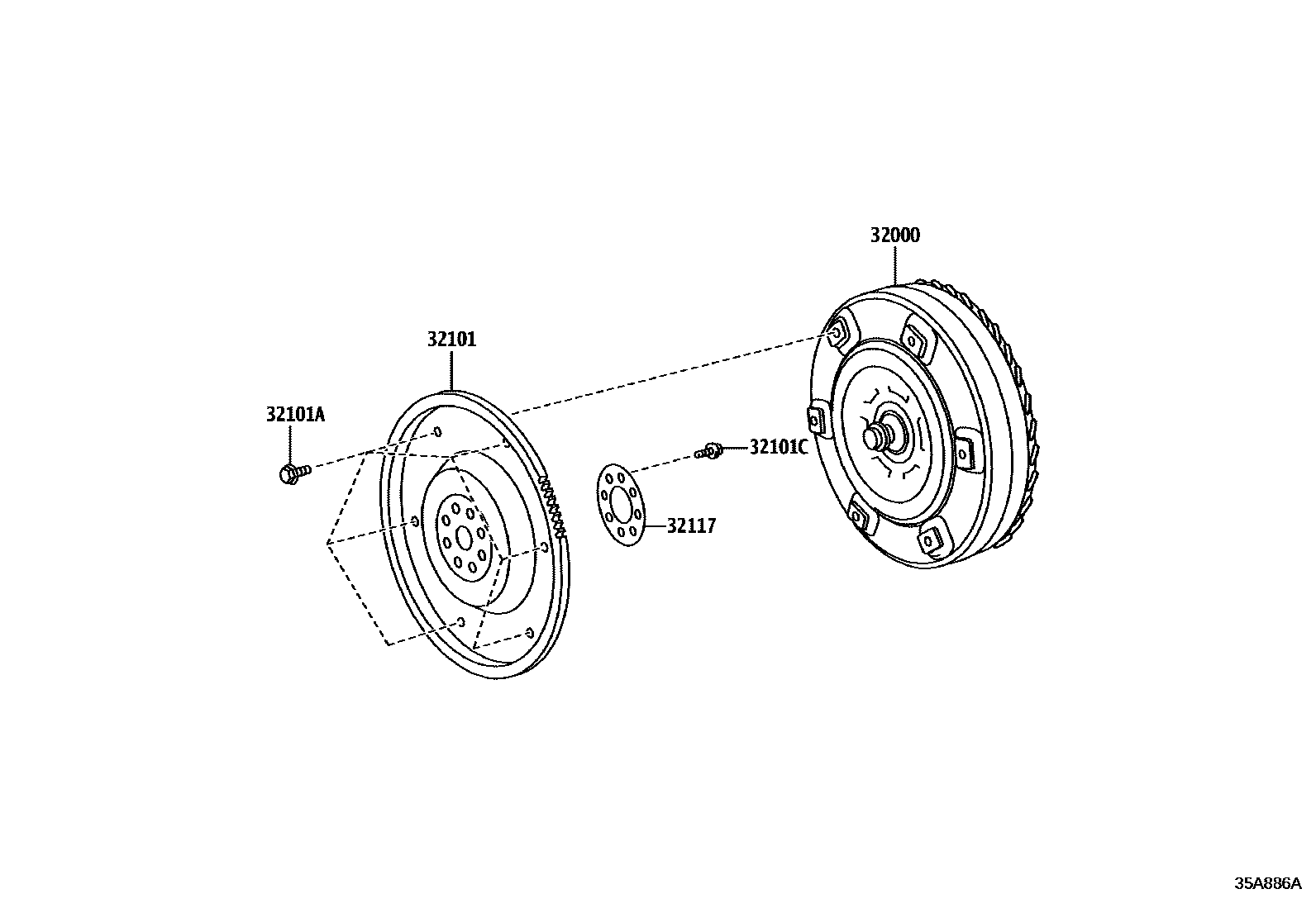

Parts diagram

32000CONVERTER ASSY, TORQUE

mainSU00310666i202203-202206

32101GEAR SUB-ASSY, DRIVE PLATE & RING

mainSU00309003i202203-202206

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

mainSU00302133×6i202203-202206

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

mainSU00302143×8i202203-202206

32117SPACER, DRIVE PLATE, REAR

mainSU00300176i202203-202206

5 parts on this diagram · 2 diagrams in section
