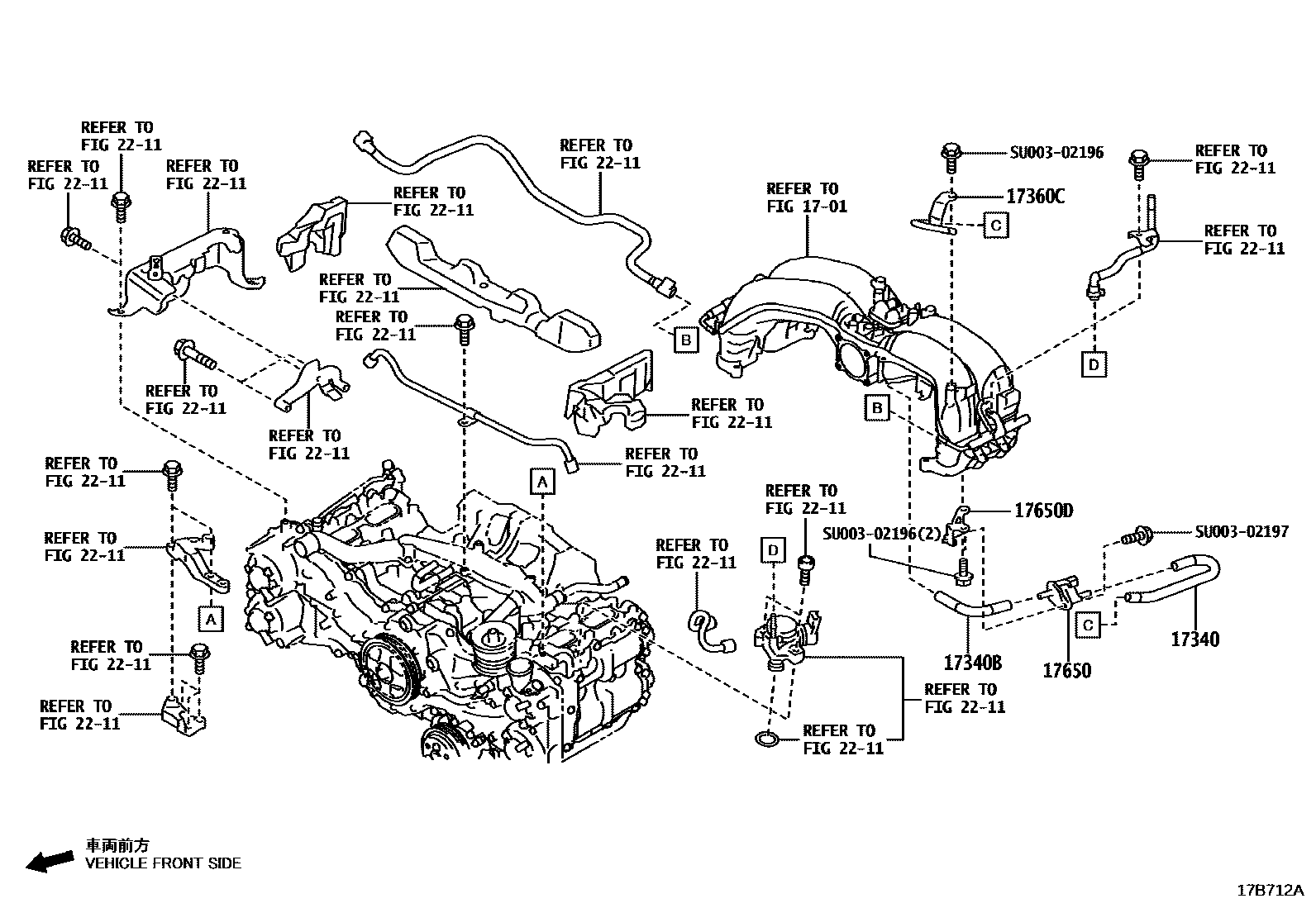

VACUUM PIPING

1701MANIFOLD

→ Go to FIG 17-01

17340HOSE ASSY, VACUUM SWITCHING VALVE

mainSU00309438iFA24..ZN8202203-202206

17340BHOSE ASSY, VACUUM SWITCHING VALVE, NO.1

mainSU00309439iFA24..ZN8202203-202206

17360CPIPE ASSY, AIR

mainSU00309597iFA24..ZN8202203-202206

17650VALVE ASSY, VACUUM SWITCHING

mainSU00308413iFA24..ZN8202203-202206

17650DBRACKET, VACUUM SWITCHING VALVE

mainSU00309507iFA24..ZN8202203-202206

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

SU00302196

mainSU003-02196

SU00302197

mainSU003-02197

9 parts on this diagram · 1 diagram in section
