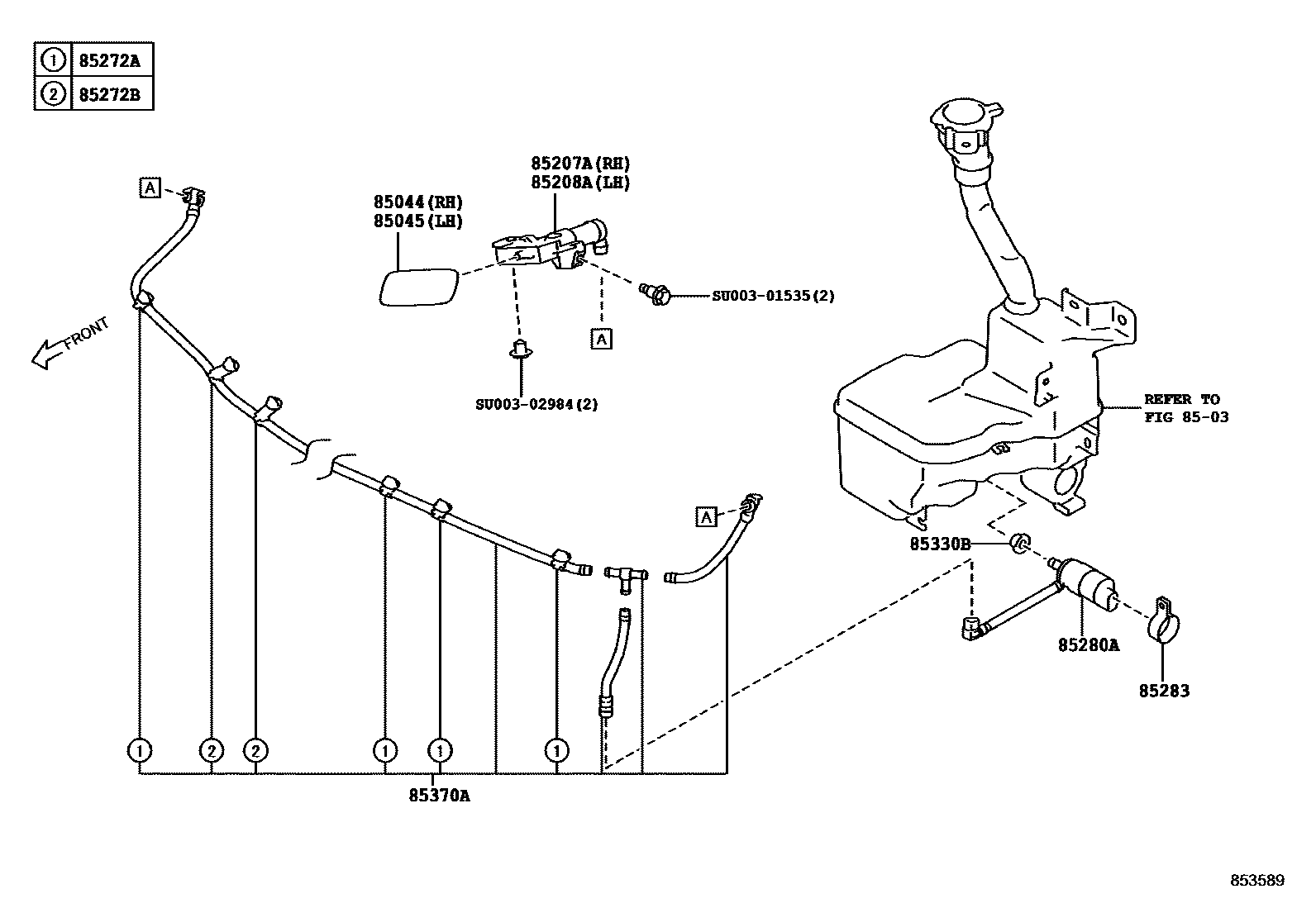

HEADLAMP CLEANER
8503WINDSHIELD WASHER
85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH
DARK GRAY METALLIC,61K
LAPIS BLUE PEARL,K3X
ORANGE METALLIC,H8R
ICE SILVER METALLIC,G1U
PURE RED,M7Y
CRYSTAL BLACK SILICA,D4S
CRYSTAL WHITE PEARL,K1X
SOLAR ORANGE
SOLID GRAY,PBA
BRIGHT BLUE,DAR
MAGNETITE GRAY M,P8Y
85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH
DARK GRAY METALLIC,61K
LAPIS BLUE PEARL,K3X
ORANGE METALLIC,H8R
ICE SILVER METALLIC,G1U
PURE RED,M7Y
CRYSTAL BLACK SILICA,D4S
CRYSTAL WHITE PEARL,K1X
SOLAR ORANGE
SOLID GRAY,PBA
BRIGHT BLUE,DAR
MAGNETITE GRAY M,P8Y
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85272ACLAMP, HEADLAMP CLEANER, NO.1
85272BCLAMP, HEADLAMP CLEANER, NO.2
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85283BRACKET, HEADLAMP CLEANER WASHER
85330BBUSH, HEADLAMP CLEANER WASHER JAR
85370AHOSE ASSY, HEADLAMP CLEANER WASHER, NO.1
SU00301535
mainSU003-01535
SU00302984
mainSU003-02984
13 parts on this diagram · 1 diagram in section
