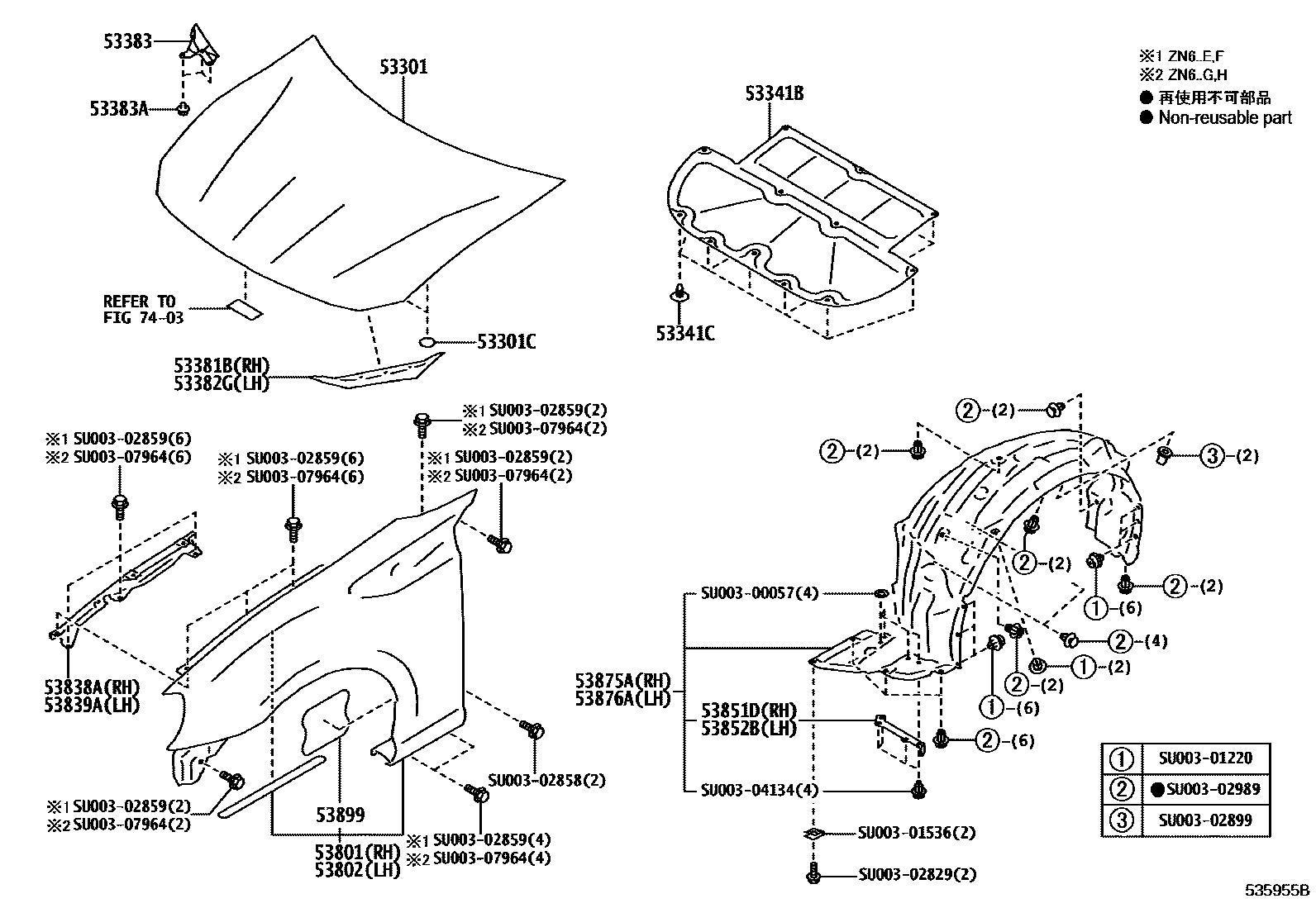

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

mainSU00301394iZN6201710-201803

53301CPROTECTOR, HOOD CUSHION

mainSU00304684×2iZN6201608-201709

53341BINSULATOR, HOOD

mainSU00302960iZN6201608-201709

53341CCLIP(FOR HOOD INSULATOR)

mainSU00303011×12iZN6201608-201709

53381BSEAL, HOOD TO RADIATOR SUPPORT, RH

mainSU00301396iZN6..G201804-201904

53382GSEAL, HOOD TO RADIATOR SUPPORT, LH

mainSU00301396iZN6201710-201803

53383SEAL, HOOD TO COWL TOP

mainSU00303138iZN6..RHD..G201804-201904

mainSU00303139iZN6..LHD201608-201709

53383ACLIP(FOR HOOD TO COWL TOP SEAL)

mainSU00302964×3iZN6201608-201709

53801FENDER SUB-ASSY, FRONT RH

mainSU00301390iZN6201608-201709

53802FENDER SUB-ASSY, FRONT LH

mainSU00301391iZN6201608-201709

53838AEXTENSHION, FRONT FENDER, RH

mainSU00301392iZN6201608-201709

53839AEXTENSHION, FRONT FENDER, LH

mainSU00301393iZN6201608-201709

53851DPAD, FRONT WHEEL OPENING EXTENSION, RH

mainSU00301554iZN6201608-201709

53852BPAD, FRONT WHEEL OPENING EXTENSION, LH

mainSU00301555iZN6201608-201709

53875ALINER, FRONT FENDER, RH

mainSU00306093iZN6201608-201709

53876ALINER, FRONT FENDER, LH

mainSU00306094iZN6201608-201709

53899SILENCER

mainSU00302951×2iZN6201608-201709

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

SU00300057

mainSU003-00057

SU00301220

mainSU003-01220

SU00301536

mainSU003-01536

SU00302829

mainSU003-02829

SU00302858

mainSU003-02858

SU00302859

mainSU003-02859

SU00302899

mainSU003-02899

SU00302989

mainSU003-02989

SU00304134

mainSU003-04134

SU00307964

mainSU003-07964

28 parts on this diagram · 1 diagram in section
