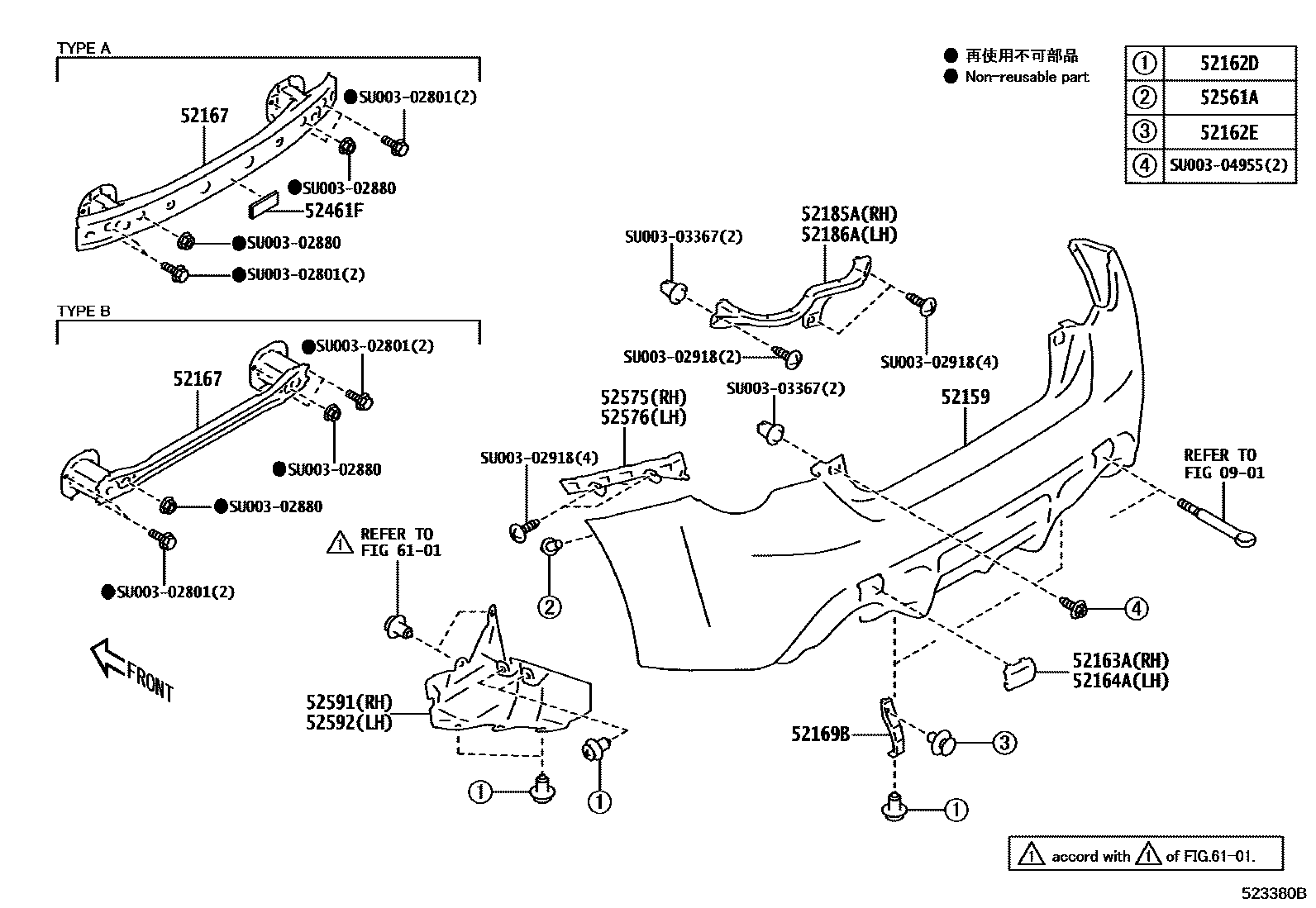

REAR BUMPER & BUMPER STAY

0901STANDARD TOOL

→ Go to FIG 09-01

52159COVER, REAR BUMPER

mainSU00306836i201608-201709

PAINT REQ

52162DPIECE, REAR BUMPER

mainSU00302984×10i201710-201803

52162EPIECE, REAR BUMPER

mainSU00302989×2i201710-201803

52163APLATE, REAR BUMPER, RH

mainSU00306854i201608-201709

52164APLATE, REAR BUMPER, LH

mainSU00306855i201804-201904

52167REINFORCEMENT, REAR BUMPER

mainSU00301509i201608-201709

DESTINATION CODE=E9; DESTINATION CODE=KR; DESTINATION CODE=KS

mainSU00301510i201608-201709

DESTINATION CODE=E1; DESTINATION CODE=E2; DESTINATION CODE=E3; DESTINATION CODE=E6; DESTINATION CODE=EA; DESTINATION CODE=EB; DESTINATION CODE=EC; DESTINATION CODE=EP; DESTINATION CODE=K4; DESTINATION CODE=KF

mainSU00308593i202008-202104

DESTINATION CODE=KR; DESTINATION CODE=KS

mainSU00308594i202008-202104

DESTINATION CODE=E1; DESTINATION CODE=E2; DESTINATION CODE=E3; DESTINATION CODE=E6; DESTINATION CODE=EB; DESTINATION CODE=EC; DESTINATION CODE=EP; DESTINATION CODE=K4; DESTINATION CODE=KF

52169BBRACKET, REAR BUMPER, CENTER

mainSU00306839×2i201608-201709

52185ABRACKET, REAR BUMPER SIDE, RH

mainSU00301501i201608-201709

52186ABRACKET, REAR BUMPER SIDE, LH

mainSU00301502i201608-201709

52461FPAD, REAR BUMPER

mainSU00304202i201608-201709

52561ACLIP(FOR REAR BUMPER RETAINER)

mainSU00302988×2i201608-201709

52575RETAINER, REAR BUMPER SIDE, RH

mainSU00301503i201608-201709
