Toyota 264220 — BRAKE BOOSTER & VACUUM TUBE

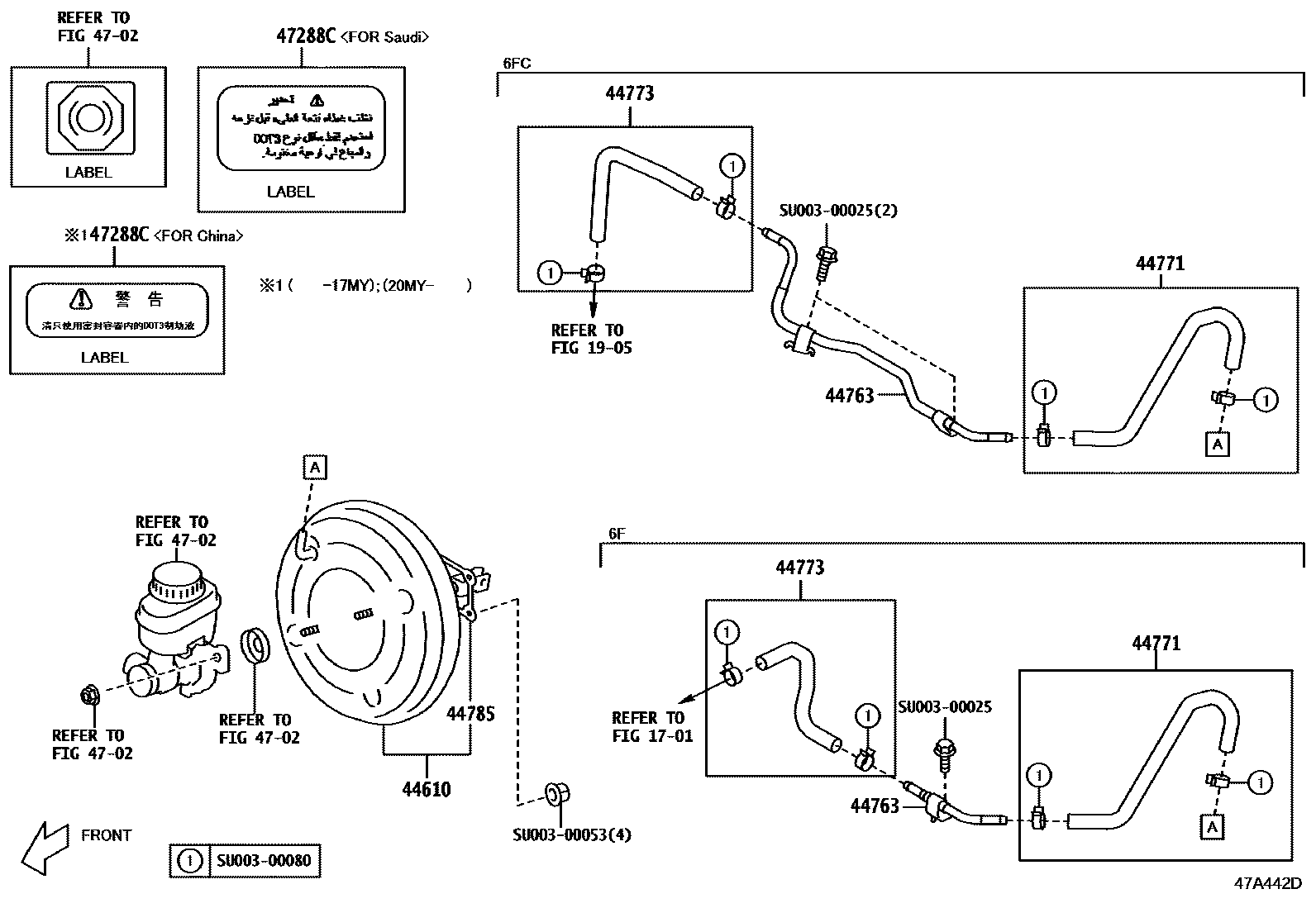

Parts diagram

1701MANIFOLD

→ Go to FIG 17-01

1905VACUUM PUMP

→ Go to FIG 19-05

44610BOOSTER ASSY, BRAKE

44763TUBE, BOOSTER VACUUM

44771HOSE, VACUUM TUBE CONNECTOR

44773HOSE, VACUUM, NO.2

44785GASKET, BRAKE BOOSTER

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47288CLABEL, FLUID MARK

SU00300025

SU00300053

SU00300080

12 parts on this diagram · 2 diagrams in section

BRAKE BOOSTER & VACUUM TUBE for Toyota 264220

This section contains 12 genuine Toyota parts for the BRAKE BOOSTER & VACUUM TUBE system of the Toyota 264220. Key components include: MANIFOLD, VACUUM PUMP, BOOSTER ASSY, BRAKE, TUBE, BOOSTER VACUUM, HOSE, VACUUM TUBE CONNECTOR.
