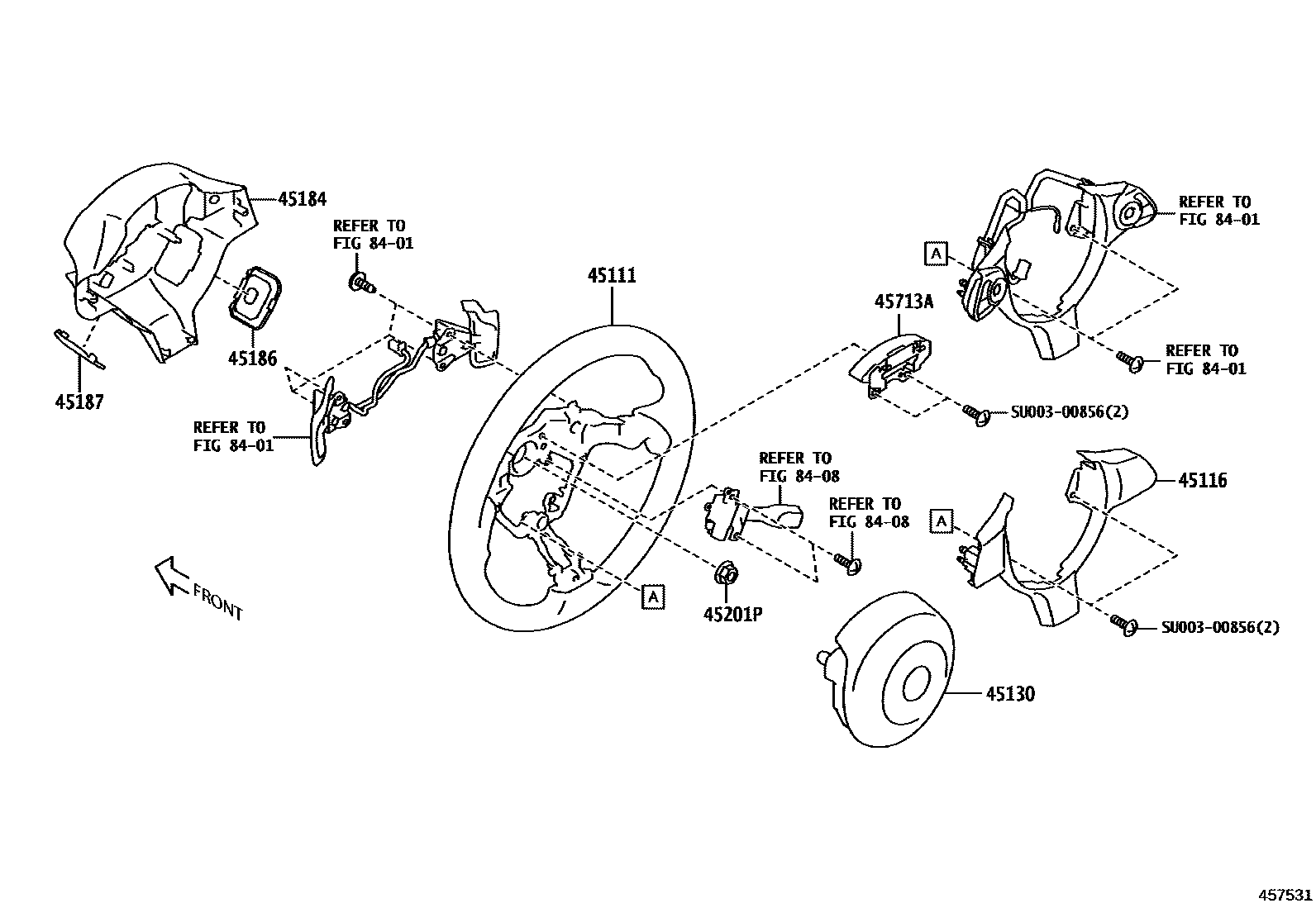

STEERING WHEEL

45111WHEEL, STEERING

mainSU00307105i201608-201709

BLACK,TRIM3#

mainSU00307106i201608-201709

BLACK; BLACK,TRIM2#; OPTION CODE=AA,BLACK; OPTION CODE=AD,BLACK; OPTION CODE=AF,BLACK; OPTION CODE=AI,BLACK; OPTION CODE=AJ,BLACK; OPTION CODE=AS,BLACK; OPTION CODE=AU,BLACK; OPTION CODE=AY,BLACK; OPTION CODE=BA,BLACK; OPTION CODE=BD,BLACK; OPTION CODE=BF,BLACK; OPTION CODE=BI,BLACK; OPTION CODE=BJ,BLACK; OPTION CODE=BS,BLACK; OPTION CODE=BU,BLACK; OPTION CODE=BY,BLACK; OPTION CODE=CD,BLACK; OPTION CODE=CF,BLACK; OPTION CODE=CI,BLACK; OPTION CODE=CY,BLACK; OPTION CODE=IA,BLACK; OPTION CODE=IC,BLACK; OPTION CODE=ID,BLACK; OPTION CODE=IF,BLACK; OPTION CODE=IS,BLACK; OPTION CODE=IU,BLACK; OPTION CODE=NA,BLACK; OPTION CODE=NC,BLACK; OPTION CODE=ND,BLACK; OPTION CODE=NF,BLACK; OPTION CODE=PA,BLACK; OPTION CODE=PC,BLACK; OPTION CODE=PD,BLACK; OPTION CODE=PF,BLACK; OPTION CODE=QA,BLACK; OPTION CODE=QC,BLACK; OPTION CODE=QD,BLACK; OPTION CODE=QF,BLACK; OPTION CODE=QS,BLACK; OPTION CODE=QU,BLACK; OPTION CODE=TA,BLACK; OPTION CODE=TC,BLACK; OPTION CODE=TD,BLACK; OPTION CODE=TF,BLACK; OPTION CODE=UA,BLACK; OPTION CODE=UC,BLACK; OPTION CODE=UD,BLACK; OPTION CODE=UF,BLACK; OPTION CODE=VA,BLACK; OPTION CODE=VC,BLACK; OPTION CODE=VD,BLACK; OPTION CODE=VF,BLACK; OPTION CODE=WA,BLACK; OPTION CODE=WC,BLACK; OPTION CODE=WD,BLACK; OPTION CODE=WF,BLACK; OPTION CODE=XD,BLACK; OPTION CODE=XF,BLACK; OPTION CODE=XI,BLACK; OPTION CODE=XY,BLACK

mainSU00307438i201608-201709

BLACK

mainSU00306381i201608-201709

OPTION CODE=AG,BLACK; OPTION CODE=AN,BLACK; OPTION CODE=AX,BLACK; OPTION CODE=AZ,BLACK; OPTION CODE=BG,BLACK; OPTION CODE=BN,BLACK; OPTION CODE=BX,BLACK; OPTION CODE=BZ,BLACK

45116ORNAMENT, STEERING WHEEL, NO.1

mainSU00306962i201608-201709

OPTION CODE=AA; OPTION CODE=AD; OPTION CODE=AF; OPTION CODE=AI; OPTION CODE=AJ; OPTION CODE=AS; OPTION CODE=AU; OPTION CODE=AY; OPTION CODE=BA; OPTION CODE=BD; OPTION CODE=BF; OPTION CODE=BI; OPTION CODE=BJ; OPTION CODE=BS; OPTION CODE=BU; OPTION CODE=BY; OPTION CODE=CD; OPTION CODE=CF; OPTION CODE=CI; OPTION CODE=CY; OPTION CODE=IA; OPTION CODE=IC; OPTION CODE=ID; OPTION CODE=IF; OPTION CODE=IS; OPTION CODE=IU; OPTION CODE=NA; OPTION CODE=NC; OPTION CODE=ND; OPTION CODE=NF; OPTION CODE=PA; OPTION CODE=PC; OPTION CODE=PD; OPTION CODE=PF; OPTION CODE=QA; OPTION CODE=QC; OPTION CODE=QD; OPTION CODE=QF; OPTION CODE=QS; OPTION CODE=QU; OPTION CODE=TA; OPTION CODE=TC; OPTION CODE=TD; OPTION CODE=TF; OPTION CODE=UA; OPTION CODE=UC; OPTION CODE=UD; OPTION CODE=UF; OPTION CODE=VA; OPTION CODE=VC; OPTION CODE=VD; OPTION CODE=VF; OPTION CODE=WA; OPTION CODE=WC; OPTION CODE=WD; OPTION CODE=WF; OPTION CODE=XD; OPTION CODE=XF; OPTION CODE=XI; OPTION CODE=XY

mainSU00306965i201608-201709

OPTION CODE=AG; OPTION CODE=AN; OPTION CODE=AX; OPTION CODE=AZ; OPTION CODE=BG; OPTION CODE=BN; OPTION CODE=BX; OPTION CODE=BZ

45130BUTTON ASSY, HORN

mainSU00307064i201710-201803

BLACK

45184COVER, STEERING WHEEL BOSS, LOWER

mainSU00307298i201710-201803

mainSU00307299i201903-202104

45186COVER, STEERING WHEEL, LOWER NO.2

mainSU00306384i201608-201709

DESTINATION CODE=EK; DESTINATION CODE=EN; DESTINATION CODE=ER; DESTINATION CODE=K8; DESTINATION CODE=KC; DESTINATION CODE=KE; DESTINATION CODE=KY

mainSU00306423i201608-201709

DESTINATION CODE=KA

45187COVER, STEERING WHEEL, LOWER NO.3

mainSU00306383i201804-201904

45201PNUT, STEERING WHEEL SET

mainSU00300056i201710-201803

45713ADAMPER, STEERING SHAKE

mainSU00306385i201804-201904

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

SU00300856

mainSU003-00856

11 parts on this diagram · 2 diagrams in section
