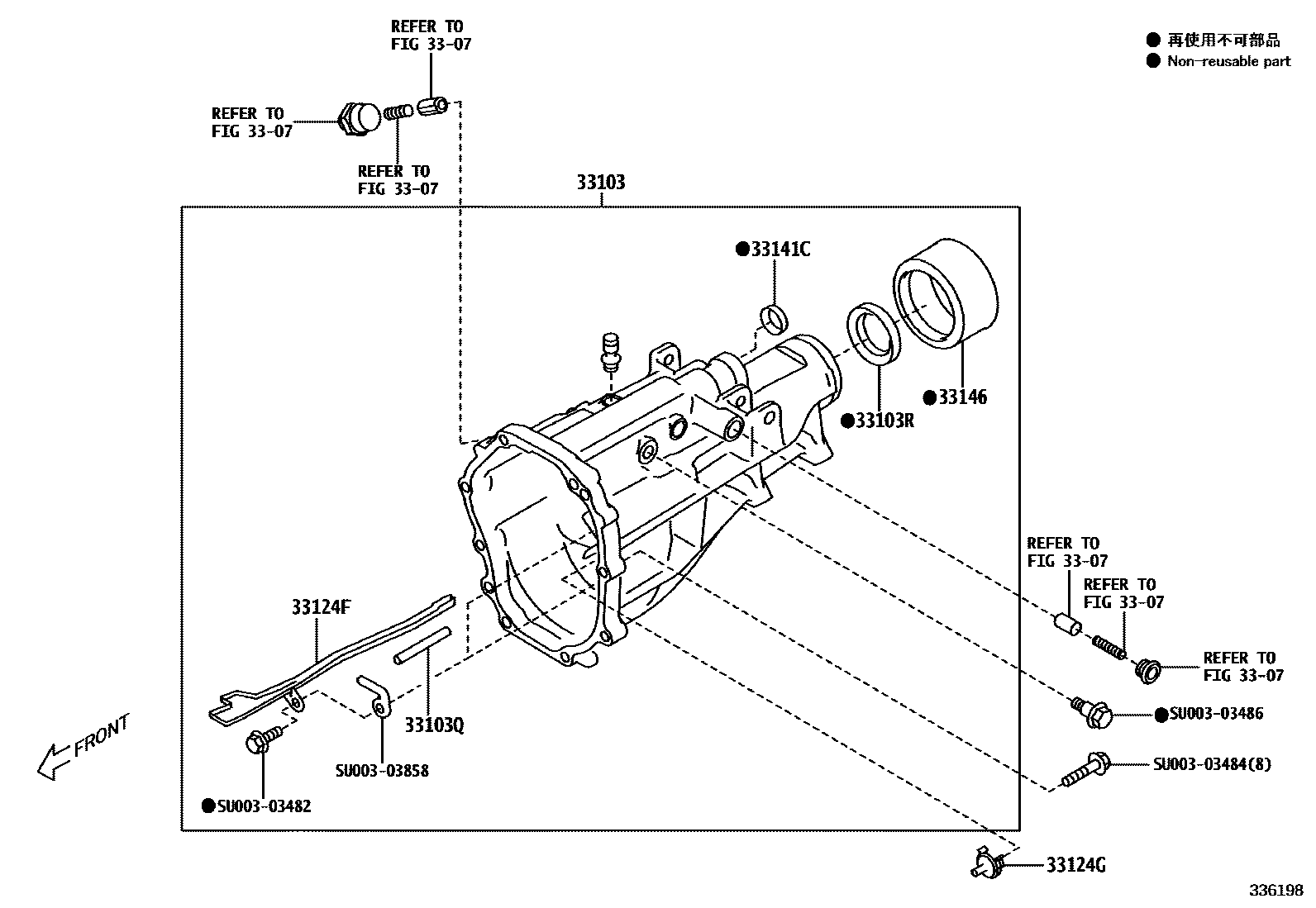

EXTENSION HOUSING (MTM)

3307GEAR SHIFT FORK & LEVER SHAFT (MTM)

→ Go to FIG 33-07

33103HOUSING SUB-ASSY, EXTENSION(MTM)

mainSU00303855iZN6..6F201608-201709

33103QPIN, RING(FOR EXTENSION HOUSING)

mainSU00303637iZN6..6F201608-201709

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

mainSU00303632iZN6..6F201608-201709

33124FPIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)

mainSU00303856iZN6..6F201608-201709

33124GPIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING)

mainSU00303859iZN6..6F201608-201709

33141CSEAL, OIL(FOR EXTENSION HOUSING REAR)

mainSU00303633iZN6..6F201608-201709

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

mainSU00303857iZN6..6F201608-201709

SU00303482

mainSU003-03482

SU00303484

mainSU003-03484

SU00303486

mainSU003-03486

SU00303858

mainSU003-03858

12 parts on this diagram · 1 diagram in section
