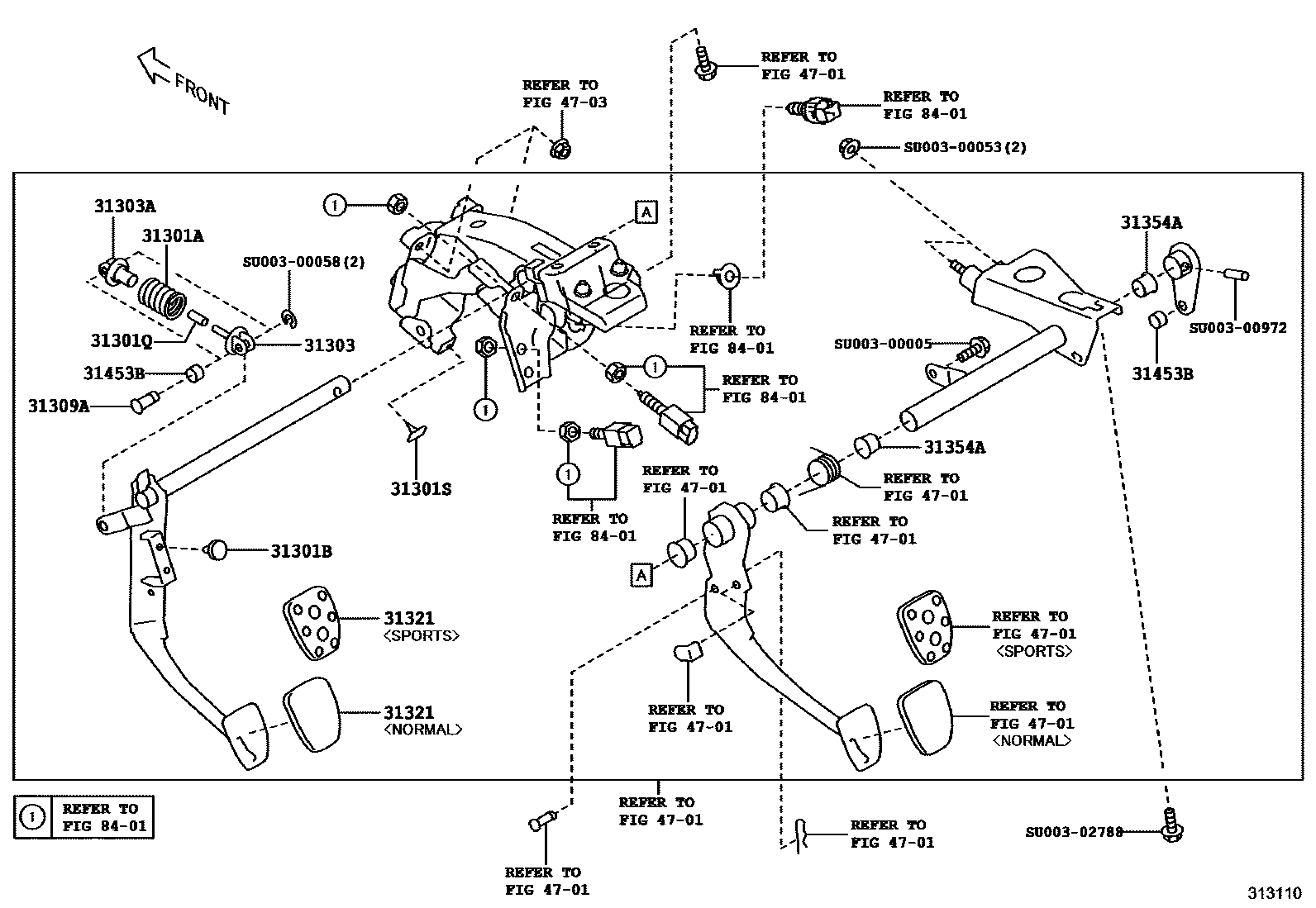

CLUTCH PEDAL & FLEXIBLE HOSE

31301PEDAL SUB-ASSY, CLUTCH

mainSU00300960i201710-201803

31301ASPRING(FOR CLUTCH PEDAL)

mainSU00300979i201804-201904

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

mainSU00300975×2i201710-201803

31301QBUSH(FOR CLUTCH PEDAL SPRING)

mainSU00300968i201804-201904

31301SCUSHION, NO.2(FOR CLUTCH PEDAL)

mainSU00307282i201608-201709

mainSU00307283i201804-201904

31303ROD SUB-ASSY, PEDAL RETURN SPRING

mainSU00300973i201710-201803

31303AROD SUB-ASSY, PEDAL RETURN SPRING

mainSU00300974i201710-201803

31309APIN, W/HOLE(FOR PEDAL RETURN SPRING CLEVIS)

mainSU00302937×2i201804-201904

31321PAD, CLUTCH PEDAL

mainSU00300971i201710-201803

OPTION CODE=AD; OPTION CODE=AF; OPTION CODE=AK; OPTION CODE=AM; OPTION CODE=EC; OPTION CODE=EF; OPTION CODE=EJ; OPTION CODE=EM; OPTION CODE=IA; OPTION CODE=IC; OPTION CODE=ID; OPTION CODE=IF; OPTION CODE=IH; OPTION CODE=IJ; OPTION CODE=IK; OPTION CODE=IM; OPTION CODE=NA; OPTION CODE=NC; OPTION CODE=ND; OPTION CODE=NF; OPTION CODE=NH; OPTION CODE=NJ; OPTION CODE=NK; OPTION CODE=NM; OPTION CODE=TA; OPTION CODE=TC; OPTION CODE=TD; OPTION CODE=TF; OPTION CODE=TH; OPTION CODE=TJ; OPTION CODE=TK; OPTION CODE=TM; OPTION CODE=VA; OPTION CODE=VC; OPTION CODE=VD; OPTION CODE=VF; OPTION CODE=VH; OPTION CODE=VJ; OPTION CODE=VK; OPTION CODE=VM; OPTION CODE=XD; OPTION CODE=XF; OPTION CODE=XK; OPTION CODE=XM

mainSU00300961i201608-201709

OPTION CODE=AJ; OPTION CODE=AS; OPTION CODE=AU; OPTION CODE=AX; OPTION CODE=AZ; OPTION CODE=BJ; OPTION CODE=BS; OPTION CODE=BU; OPTION CODE=BX; OPTION CODE=BZ; OPTION CODE=IS; OPTION CODE=IU; OPTION CODE=QS; OPTION CODE=QU

31354ABUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER)

mainSU00300966×2i201804-201904

mainSU00302123×2i201608-201709

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

mainSU00300969×3i201608-201709

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

SU00300005
