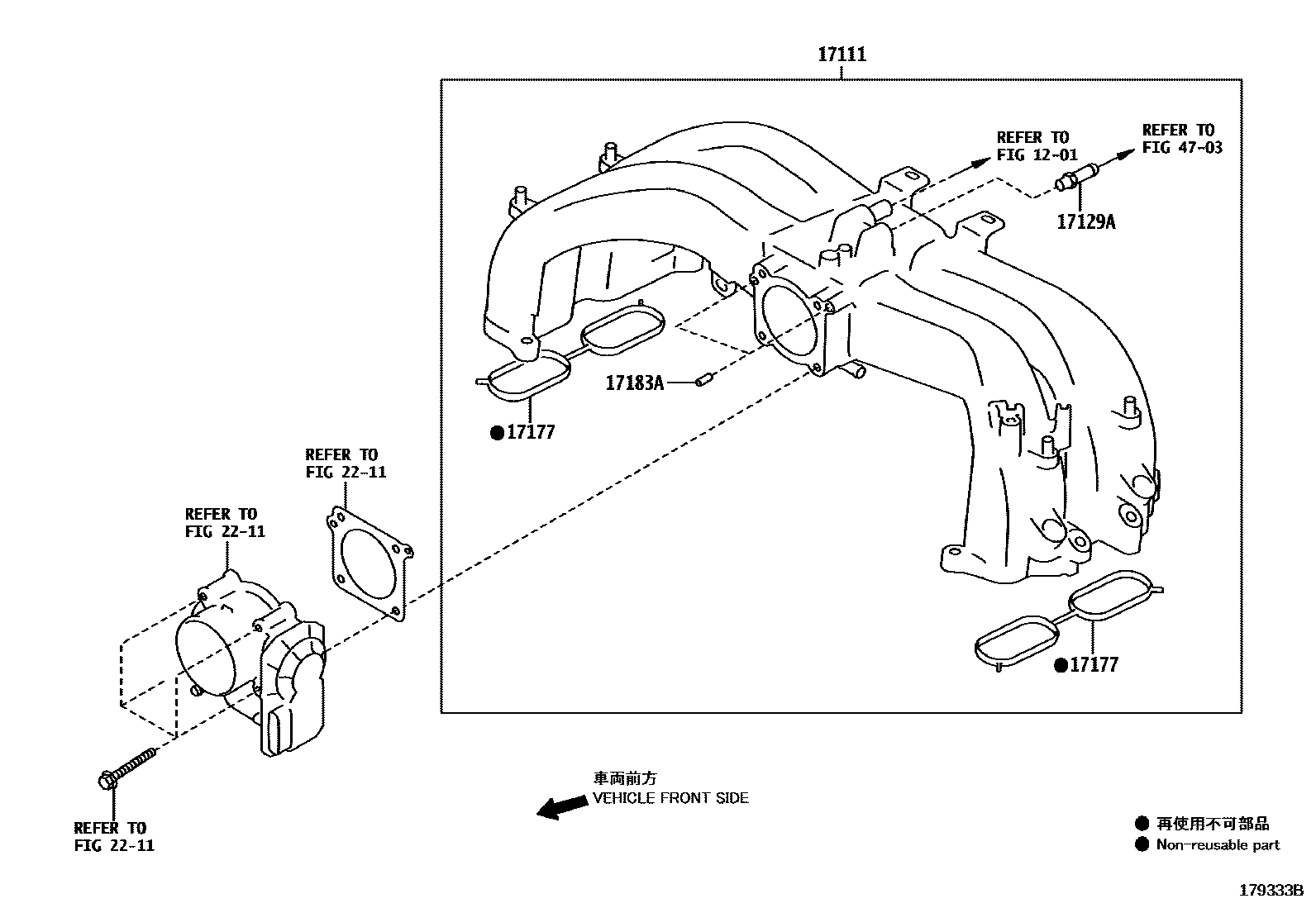

MANIFOLD

1201VENTILATION HOSE

17111MANIFOLD, INTAKE

mainSU00300288i201903-202104

mainSU00306453i201903-202104

DESTINATION CODE=KA

17129AUNION, NO.1

mainSU00306487i201903-202104

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

mainSU00300290×2i201608-201709

DESTINATION CODE=EK; DESTINATION CODE=EN; DESTINATION CODE=ER; DESTINATION CODE=K8; DESTINATION CODE=KC; DESTINATION CODE=KE; DESTINATION CODE=KY

mainSU00306454×2i201804-201904

DESTINATION CODE=KA

17183ACOLLAR, MANIFOLD

mainSU00306457×2i201804-201904

2211FUEL INJECTION SYSTEM

4703BRAKE BOOSTER & VACUUM TUBE

7 parts on this diagram · 10 diagrams in section
