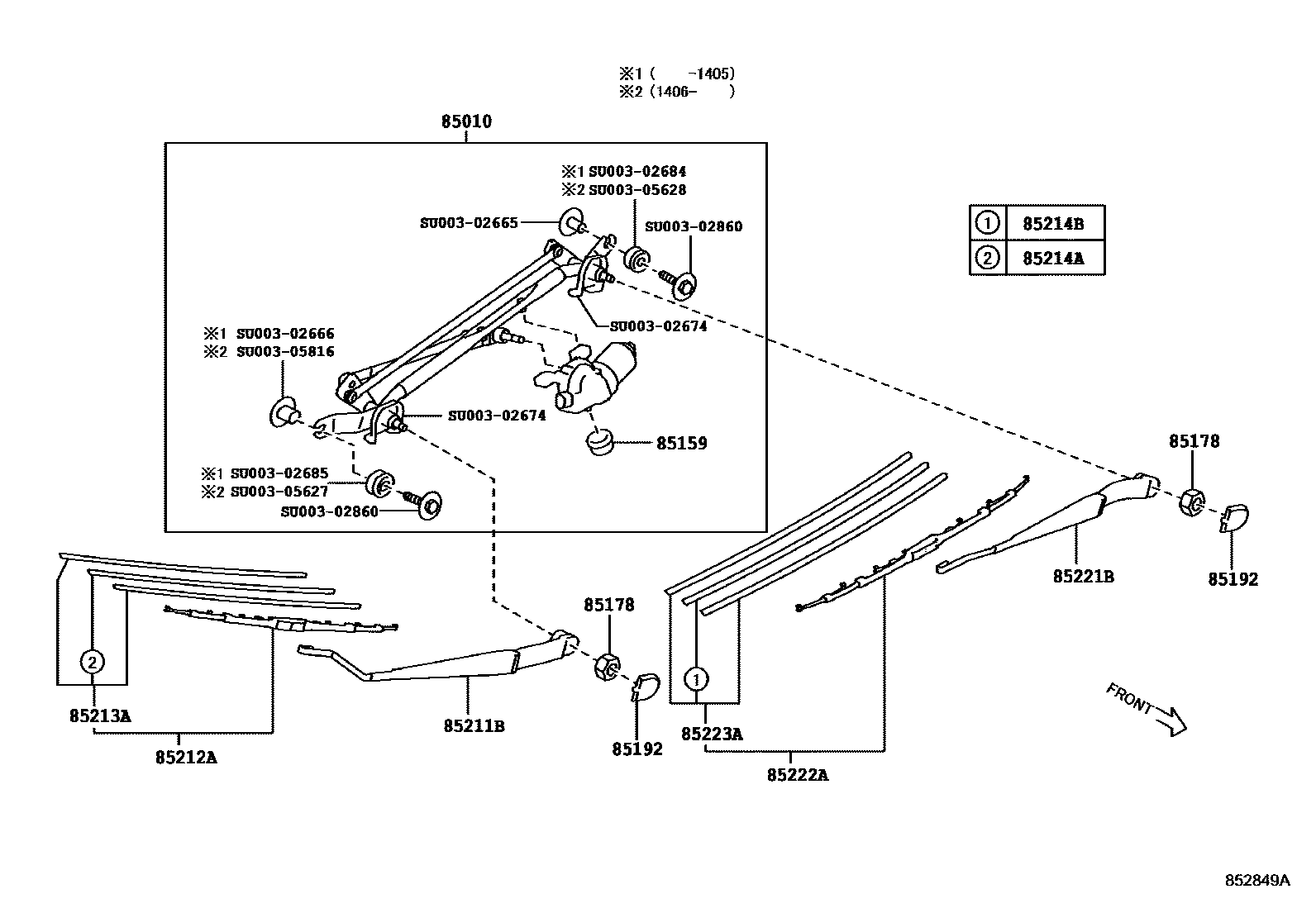

WINDSHIELD WIPER

0001 1 0002 1

85010MOTOR & LINK ASSY, FR WIPER

mainSU00302663iZN6..RHD201204-201308

mainSU00302664iZN6..LHD..B201307-201404

mainSU00305709iZN6..RHD201504-201607

mainSU00305710iZN6..LHD..D201504-201607

85159CUSHION, WINDSHIELD WIPER MOTOR

mainSU00302686iZN6201204-201308

85178NUT (FOR FRONT WIPER ARM SETTING)

mainSU00300045×2iZN6201204-201307

mainSU00304731×2iZN6201307-201308

85192COVER, WINDSHIELD WIPER ARM

mainSU00302675×2iZN6201204-201308

85211BARM, FRONT WIPER, RH

mainSU00302667iZN6..RHD201204-201308

mainSU00302672iZN6..LHD..D201504-201607

85212ABLADE, FR WIPER, RH

mainSU00302676iZN6..RHD201204-201308

mainSU00302681iZN6..LHD..D201504-201607

85213ARUBBER, WIPER BLADE, RH

mainSU00304213iZN6..RHD201405-201503

mainSU00304214iZN6..LHD201204-201308

85214ARUBBER, WIPER, RH

mainSU00304215iZN6..RHD201504-201607

mainSU00304216iZN6..LHD201405-201503

85214BRUBBER, WIPER, LH

mainSU00304215iZN6..LHD..B201307-201404

mainSU00304216iZN6..RHD201204-201308

85221BARM, FRONT WIPER, LH

mainSU00302668iZN6..LHD..B201307-201404

mainSU00302671iZN6..RHD201405-201503

85222ABLADE, FR WIPER, LH

mainSU00302677iZN6..LHD..D201504-201607

mainSU00302680iZN6..RHD201405-201503

85223ARUBBER, FRONT WIPER BLADE, LH

mainSU00304213iZN6..LHD..B201307-201404

mainSU00304214iZN6..RHD201204-201308

SU00302665

mainSU003-02665

SU00302666

mainSU003-02666

SU00302674

mainSU003-02674

SU00302684

mainSU003-02684

SU00302685

mainSU003-02685

SU00302860

mainSU003-02860

SU00305627

mainSU003-05627

SU00305628

mainSU003-05628

SU00305816

mainSU003-05816

21 parts on this diagram · 2 diagrams in section
