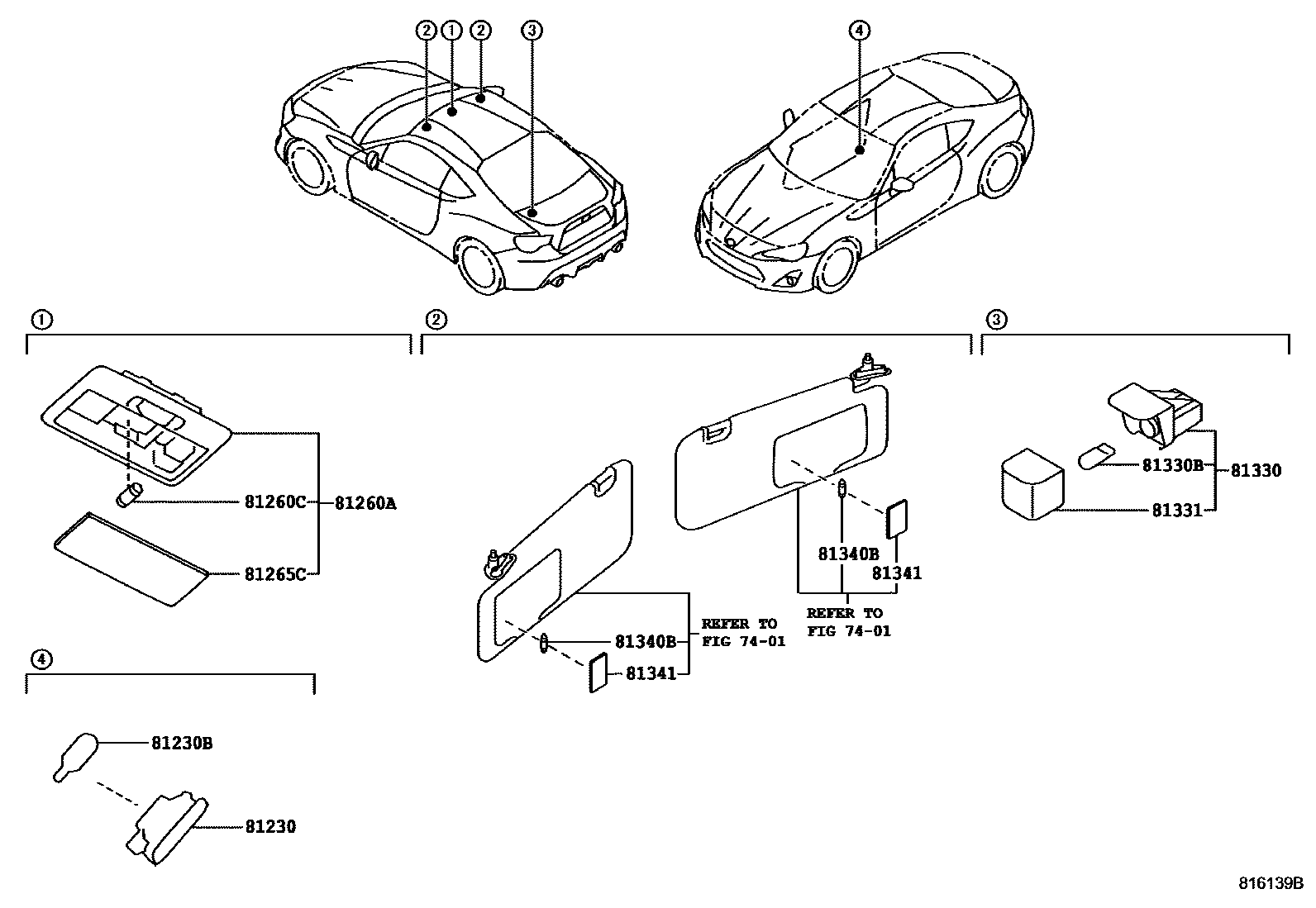

INTERIOR LAMP

7401ARMREST & VISOR

→ Go to FIG 74-01

81230LAMP ASSY, COURTESY

mainSU00303290×2iZN6..HI201204-201308

81230BBULB(FOR COURTESY LAMP)

mainSU00303297×2iZN6..HI201204-201308

12V 5W

81260ALAMP ASSY, MAP

mainSU00302522iZN6201204-201308

BLACK

81260CBULB(FOR MAP LAMP)

mainSU00302569iZN6201204-201308

12V 10W

81265CLENS, MAP LAMP, NO.1

mainSU00302526iZN6201204-201308

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

mainSU00302521iZN6..BASE,HI201204-201308

81330BBULB, LUGGAGE COMPARTMENT LAMP

mainSU00301984iZN6..BASE,HI201204-201308

12V 5W

81331LENS, LUGGAGE COMPARTMENT LAMP

mainSU00302527iZN6..BASE,HI201204-201308

81340BBULB (FOR VANITY LAMP)

mainSU00302566×2iZN6..HI201204-201308

12V 2W

mainSU00305707×2iZN6..(HI,LIMD)..C201404-201503

12V 2W

81341LENS, VANITY LAMP

mainSU00303185×2iZN6..HI201204-201308

11 parts on this diagram · 1 diagram in section
