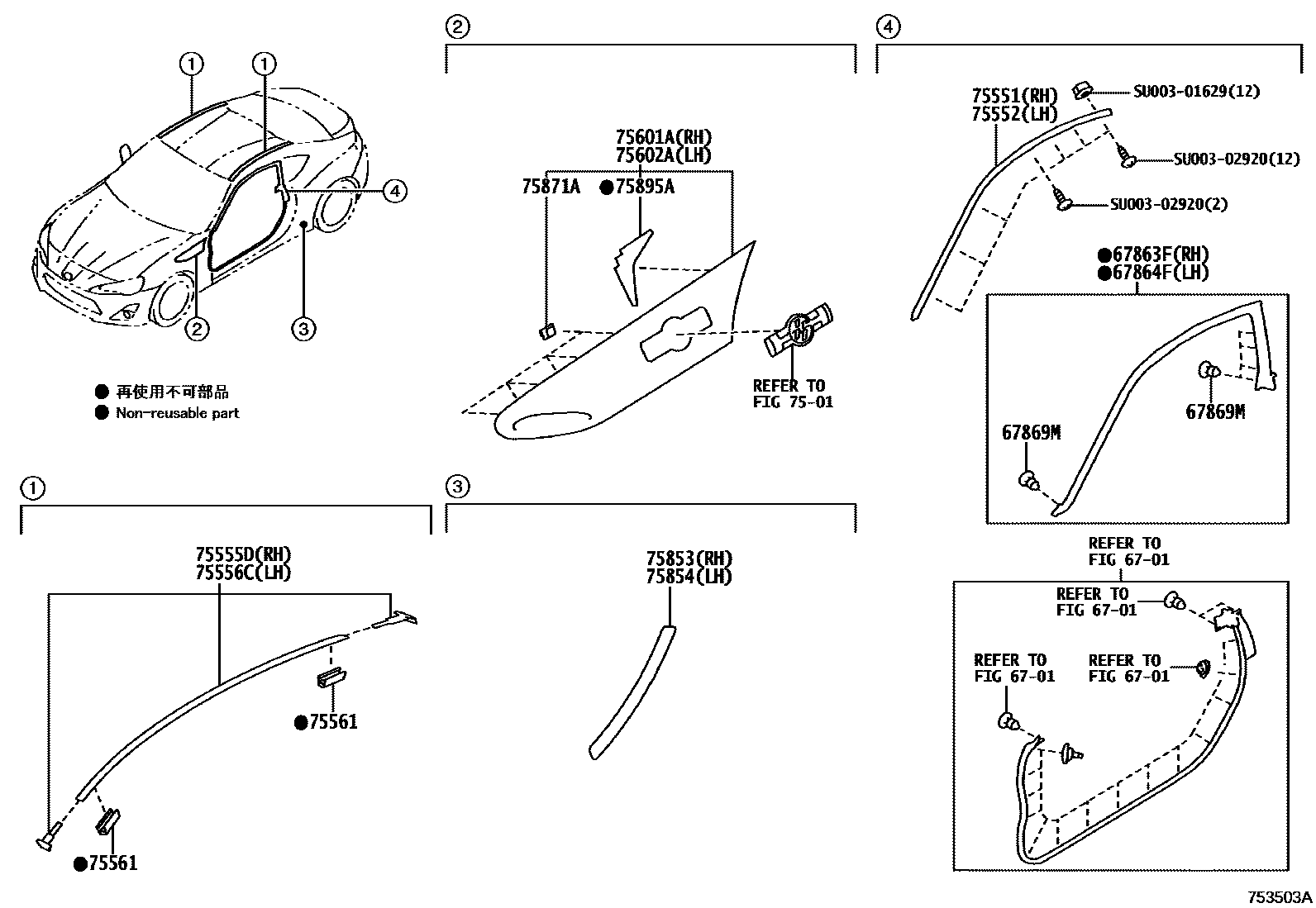

SIDE MOULDING

0001 1FENDER & DOOR & ROOF 0002 1ROCKER PANEL

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

67863FWEATHERSTRIP, FRONT DOOR, NO.2 RH

mainSU00301633iZN6201204-201308

67864FWEATHERSTRIP, FRONT DOOR, NO.2 LH

mainSU00301634iZN6201204-201308

67869MCLIP, DOOR WEATHERSTRIP

mainSU00304053×10iZN6201204-201308

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

75551MOULDING, ROOF DRIP SIDE FINISH, RH

mainSU00301635iZN6201204-201308

NO PAINT REQ

mainSU00305867iZN6201505-201606

NO PAINT REQ

mainSU00307280iZN6201607-201607

NO PAINT REQ

75552MOULDING, ROOF DRIP SIDE FINISH, LH

mainSU00301636iZN6201204-201308

NO PAINT REQ

mainSU00305868iZN6201505-201606

NO PAINT REQ

mainSU00307281iZN6201607-201607

NO PAINT REQ

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

mainSU00303068iZN6201204-201308

mainSU00307259iZN6201604-201607

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

mainSU00303069iZN6201204-201308

mainSU00307260iZN6201604-201607

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

mainSU00304499×4iZN6201204-201308

75601AMOULDING SUB-ASSY, FRONT FENDER, RH

mainSU00303112iZN6201204-201308

MATERIAL COLOR,37J,61K,C7P,D4S,D6S,E8H,H8R

75602AMOULDING SUB-ASSY, FRONT FENDER, LH

mainSU00303120iZN6201204-201308

MATERIAL COLOR,37J,61K,C7P,D4S,D6S,E8H,H8R

75853PROTECTOR, REAR FENDER, RH

mainSU00303130iZN6..BASE,HI,LOW201204-201308

75854PROTECTOR, REAR FENDER, LH

mainSU00303131iZN6..BASE,HI,LOW201204-201308

75871ACLIP (FOR FRONT FENDER MOULDING NO.1)

mainSU00303092×12iZN6201204-201308

75895ATAPE, MOULDING, NO.1

mainSU00303132×2iZN6201204-201308

SU00301629

mainSU003-01629

SU00302920

mainSU003-02920

18 parts on this diagram · 2 diagrams in section
