INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

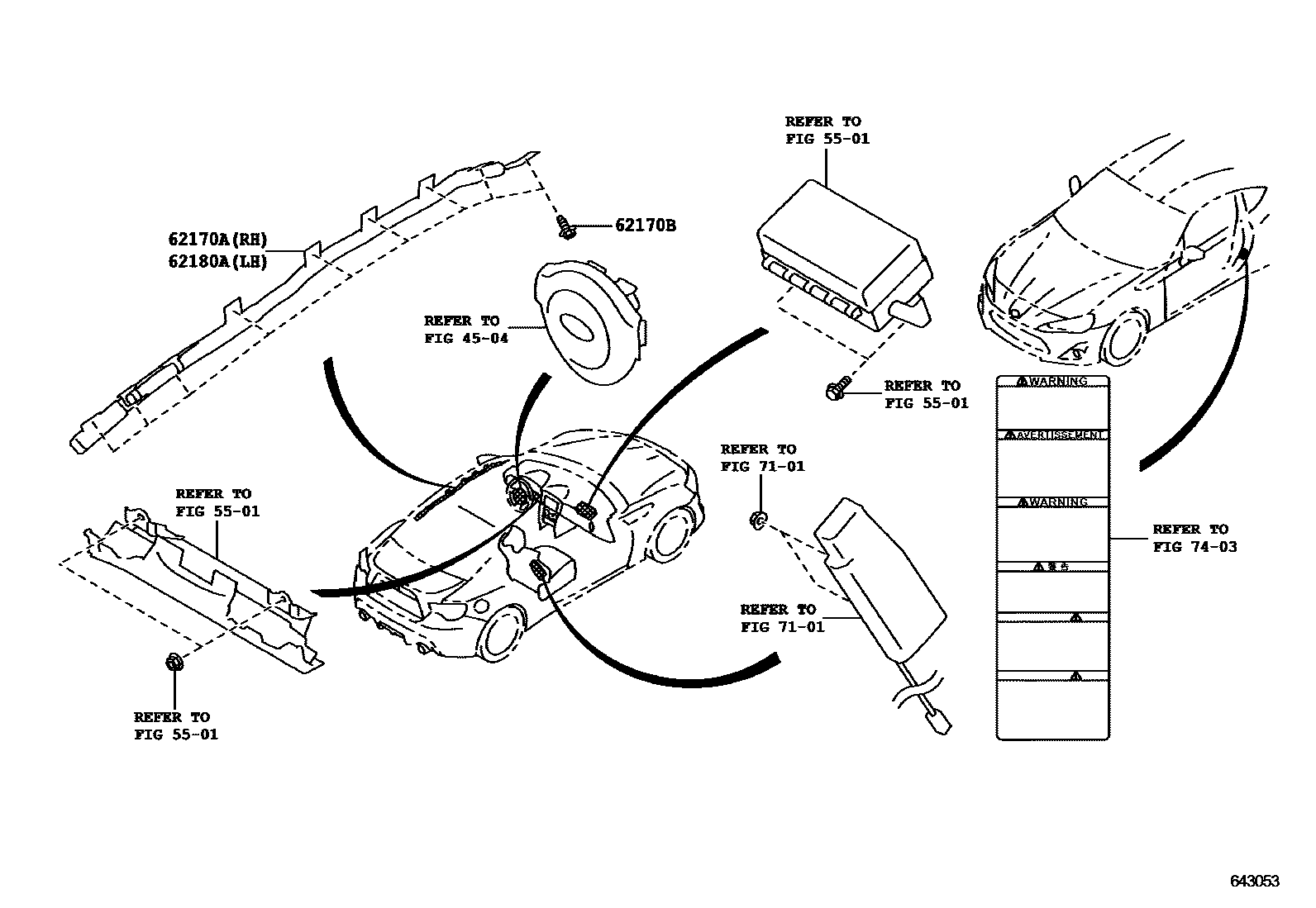

Parts diagram

4504

5501

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

mainSU00303424i201204-201607

62170BBOLT, W/WASHER

mainSU00300070i201204-201607

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

mainSU00303425i201204-201607

7101

7403

7 parts on this diagram · 3 diagrams in section
