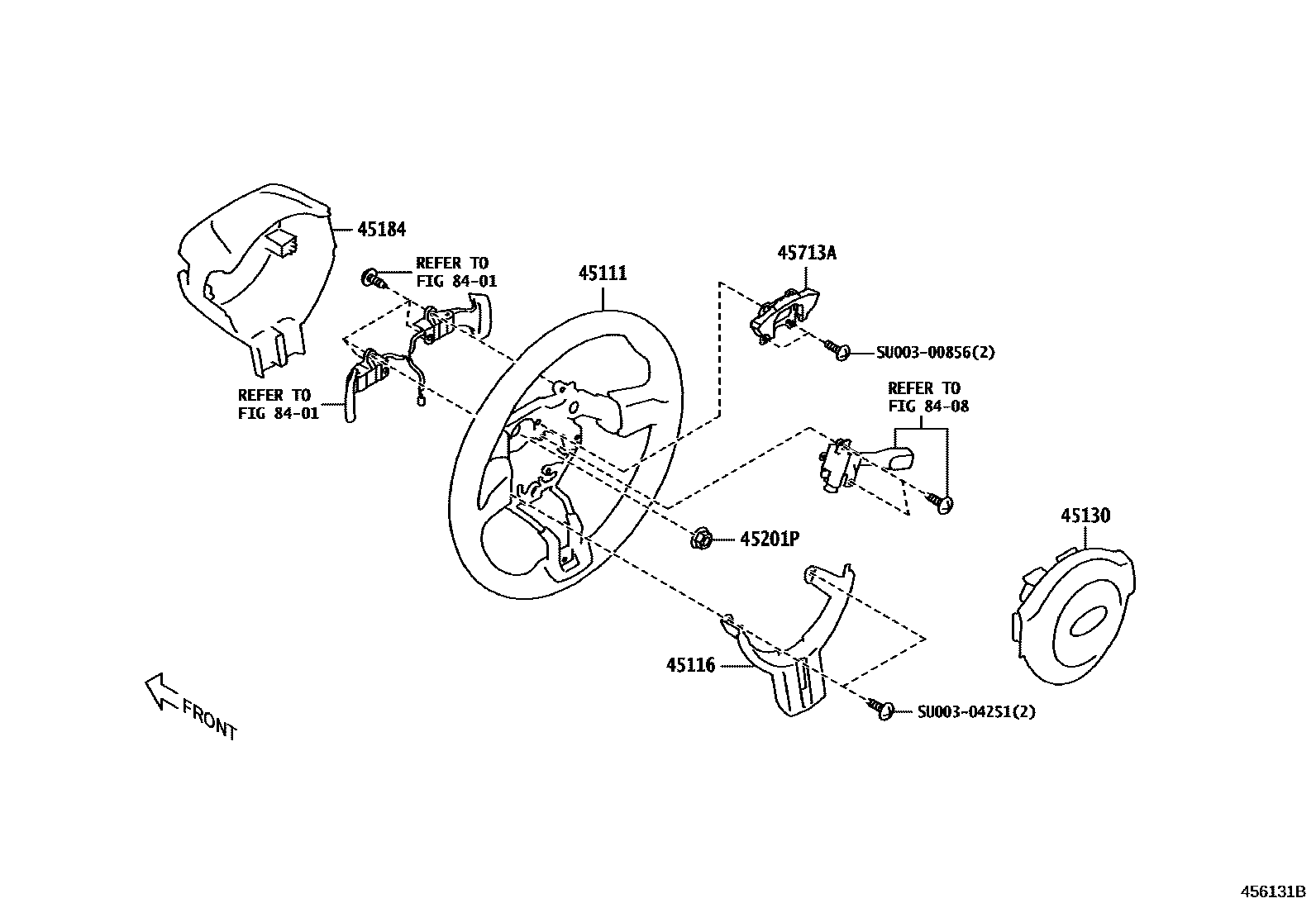

45111WHEEL, STEERING

mainSU00300843i201307-201404

BLACK; OPTION CODE=AV,BLACK; OPTION CODE=AW,BLACK; OPTION CODE=DV,BLACK; OPTION CODE=DW,BLACK; OPTION CODE=EV,BLACK; OPTION CODE=EW,BLACK; OPTION CODE=OX,BLACK; OPTION CODE=XV,BLACK; OPTION CODE=XW,BLACK

mainSU00300844i201307-201404

RED,TRIM3#

mainSU00300845i201307-201404

BLACK; BLACK,TRIM2#; OPTION CODE-FM,BLACK; OPTION CODE=FB,BLACK; OPTION CODE=FC,BLACK; OPTION CODE=FF,BLACK; OPTION CODE=FG,BLACK; OPTION CODE=FL,BLACK; OPTION CODE=FN,BLACK; OPTION CODE=FO,BLACK; OPTION CODE=FP,BLACK; OPTION CODE=FT,BLACK; OPTION CODE=FU,BLACK; OPTION CODE=FV,BLACK; OPTION CODE=GB,BLACK; OPTION CODE=GC,BLACK; OPTION CODE=GE,BLACK; OPTION CODE=GF,BLACK; OPTION CODE=GG,BLACK; OPTION CODE=GH,BLACK; OPTION CODE=HV,BLACK; OPTION CODE=HW,BLACK; OPTION CODE=JL,BLACK; OPTION CODE=JN,BLACK; OPTION CODE=JU,BLACK; OPTION CODE=JV,BLACK; OPTION CODE=JW,BLACK; OPTION CODE=LL,BLACK; OPTION CODE=LN,BLACK; OPTION CODE=LU,BLACK; OPTION CODE=LV,BLACK; OPTION CODE=ML,BLACK; OPTION CODE=MN,BLACK; OPTION CODE=MU,BLACK; OPTION CODE=MV,BLACK; OPTION CODE=MW,BLACK; OPTION CODE=NB,BLACK; OPTION CODE=NC,BLACK; OPTION CODE=NF,BLACK; OPTION CODE=NG,BLACK; OPTION CODE=NL,BLACK; OPTION CODE=NM,BLACK; OPTION CODE=NN,BLACK; OPTION CODE=NO,BLACK; OPTION CODE=NP,BLACK; OPTION CODE=NT,BLACK; OPTION CODE=NU,BLACK; OPTION CODE=NV,BLACK; OPTION CODE=NW,BLACK; OPTION CODE=RL,BLACK; OPTION CODE=RN,BLACK; OPTION CODE=RU,BLACK; OPTION CODE=RV,BLACK; OPTION CODE=SB,BLACK; OPTION CODE=SC,BLACK; OPTION CODE=SF,BLACK; OPTION CODE=SG,BLACK; OPTION CODE=TL,BLACK; OPTION CODE=TN,BLACK; OPTION CODE=TU,BLACK; OPTION CODE=TV,BLACK; OPTION CODE=VL,BLACK; OPTION CODE=VN,BLACK; OPTION CODE=VV,BLACK; OPTION CODE=WB,BLACK; OPTION CODE=WC,BLACK; OPTION CODE=WE,BLACK; OPTION CODE=WF,BLACK; OPTION CODE=WG,BLACK; OPTION CODE=WH,BLACK; OPTION CODE=YB,BLACK; OPTION CODE=YC,BLACK; OPTION CODE=YF,BLACK; OPTION CODE=YG,BLACK; OPTION CODE=YL,BLACK; OPTION CODE=YM,BLACK; OPTION CODE=YN,BLACK; OPTION CODE=YO,BLACK; OPTION CODE=YP,BLACK; OPTION CODE=YT,BLACK; OPTION CODE=YU,BLACK; OPTION CODE=YV,BLACK

mainSU00305652i201405-201503

RED,TRIM3#

mainSU00305653i201405-201503

BLACK; BLACK,TRIM2#; OPTION CODE-FM,BLACK; OPTION CODE=FB,BLACK; OPTION CODE=FC,BLACK; OPTION CODE=FF,BLACK; OPTION CODE=FG,BLACK; OPTION CODE=FL,BLACK; OPTION CODE=FN,BLACK; OPTION CODE=FO,BLACK; OPTION CODE=FP,BLACK; OPTION CODE=FT,BLACK; OPTION CODE=FU,BLACK; OPTION CODE=FV,BLACK; OPTION CODE=GB,BLACK; OPTION CODE=GC,BLACK; OPTION CODE=GE,BLACK; OPTION CODE=GF,BLACK; OPTION CODE=GG,BLACK; OPTION CODE=GH,BLACK; OPTION CODE=HV,BLACK; OPTION CODE=HW,BLACK; OPTION CODE=JL,BLACK; OPTION CODE=JN,BLACK; OPTION CODE=JU,BLACK; OPTION CODE=JV,BLACK; OPTION CODE=JW,BLACK; OPTION CODE=LL,BLACK; OPTION CODE=LN,BLACK; OPTION CODE=LU,BLACK; OPTION CODE=LV,BLACK; OPTION CODE=ML,BLACK; OPTION CODE=MN,BLACK; OPTION CODE=MU,BLACK; OPTION CODE=MV,BLACK; OPTION CODE=MW,BLACK; OPTION CODE=NB,BLACK; OPTION CODE=NC,BLACK; OPTION CODE=NF,BLACK; OPTION CODE=NG,BLACK; OPTION CODE=NL,BLACK; OPTION CODE=NM,BLACK; OPTION CODE=NN,BLACK; OPTION CODE=NO,BLACK; OPTION CODE=NP,BLACK; OPTION CODE=NT,BLACK; OPTION CODE=NU,BLACK; OPTION CODE=NV,BLACK; OPTION CODE=NW,BLACK; OPTION CODE=RL,BLACK; OPTION CODE=RN,BLACK; OPTION CODE=RU,BLACK; OPTION CODE=RV,BLACK; OPTION CODE=SB,BLACK; OPTION CODE=SC,BLACK; OPTION CODE=SF,BLACK; OPTION CODE=SG,BLACK; OPTION CODE=TL,BLACK; OPTION CODE=TN,BLACK; OPTION CODE=TU,BLACK; OPTION CODE=TV,BLACK; OPTION CODE=VL,BLACK; OPTION CODE=VN,BLACK; OPTION CODE=VV,BLACK; OPTION CODE=WB,BLACK; OPTION CODE=WC,BLACK; OPTION CODE=WE,BLACK; OPTION CODE=WF,BLACK; OPTION CODE=WG,BLACK; OPTION CODE=WH,BLACK; OPTION CODE=YB,BLACK; OPTION CODE=YC,BLACK; OPTION CODE=YF,BLACK; OPTION CODE=YG,BLACK; OPTION CODE=YL,BLACK; OPTION CODE=YM,BLACK; OPTION CODE=YN,BLACK; OPTION CODE=YO,BLACK; OPTION CODE=YP,BLACK; OPTION CODE=YT,BLACK; OPTION CODE=YU,BLACK; OPTION CODE=YV,BLACK

45116ORNAMENT, STEERING WHEEL, NO.1

mainSU00304252i201204-201308

OPTION CODE=2B; OPTION CODE=2C; OPTION CODE=2E; OPTION CODE=2F; OPTION CODE=2G; OPTION CODE=2H; OPTION CODE=2L; OPTION CODE=2N; OPTION CODE=2U; OPTION CODE=2V; OPTION CODE=2W; OPTION CODE=4L; OPTION CODE=4N; OPTION CODE=4U; OPTION CODE=4V; OPTION CODE=4W; OPTION CODE=5L; OPTION CODE=5N; OPTION CODE=5U; OPTION CODE=5V; OPTION CODE=HL; OPTION CODE=HN; OPTION CODE=HU; OPTION CODE=HV; OPTION CODE=HW; OPTION CODE=JL; OPTION CODE=JN; OPTION CODE=JU; OPTION CODE=JV; OPTION CODE=JW; OPTION CODE=ML; OPTION CODE=MN; OPTION CODE=MU; OPTION CODE=MV; OPTION CODE=MW; OPTION CODE=NB; OPTION CODE=NC; OPTION CODE=NE; OPTION CODE=NF; OPTION CODE=NG; OPTION CODE=NH; OPTION CODE=NL; OPTION CODE=NN; OPTION CODE=NU; OPTION CODE=NV; OPTION CODE=NW; OPTION CODE=ZL; OPTION CODE=ZN; OPTION CODE=ZU; OPTION CODE=ZV

mainSU00304253i201307-201404

OPTION CODE=AV; OPTION CODE=AW; OPTION CODE=DV; OPTION CODE=DW; OPTION CODE=EV; OPTION CODE=EW; OPTION CODE=OX; OPTION CODE=XV; OPTION CODE=XW

mainSU00305864i201504-201607

OPTION CODE=AD; OPTION CODE=AG; OPTION CODE=AH; OPTION CODE=AS; OPTION CODE=BK; OPTION CODE=BR; OPTION CODE=CK; OPTION CODE=CR; OPTION CODE=DK; OPTION CODE=DR; OPTION CODE=EK; OPTION CODE=ER; OPTION CODE=FH; OPTION CODE=FS; OPTION CODE=GD; OPTION CODE=GE; OPTION CODE=GG; OPTION CODE=GH; OPTION CODE=GK; OPTION CODE=GM; OPTION CODE=GR; OPTION CODE=GS; OPTION CODE=HD; OPTION CODE=HE; OPTION CODE=HH; OPTION CODE=HM; OPTION CODE=HS; OPTION CODE=KD; OPTION CODE=KG; OPTION CODE=KH; OPTION CODE=KS; OPTION CODE=LH; OPTION CODE=LS; OPTION CODE=MD; OPTION CODE=MG; OPTION CODE=MH; OPTION CODE=MS; OPTION CODE=ND; OPTION CODE=NG; OPTION CODE=NH; OPTION CODE=NK; OPTION CODE=NR; OPTION CODE=NS; OPTION CODE=PH; OPTION CODE=PS; OPTION CODE=RK; OPTION CODE=RR; OPTION CODE=SK; OPTION CODE=SR; OPTION CODE=TD; OPTION CODE=TG; OPTION CODE=TH; OPTION CODE=TS; OPTION CODE=UH; OPTION CODE=US; OPTION CODE=XH; OPTION CODE=XS

45130BUTTON ASSY, HORN

mainSU00303411i201504-201607

BLACK

45184COVER, STEERING WHEEL BOSS, LOWER

mainSU00304247i201204-201308

DESTINATION CODE=EK; DESTINATION CODE=EN; DESTINATION CODE=ER; DESTINATION CODE=K2; DESTINATION CODE=K8; DESTINATION CODE=KC; DESTINATION CODE=KE

mainSU00304249i201204-201308

DESTINATION CODE=KA

mainSU00304250i201405-201503

OPTION CODE=GB; OPTION CODE=GC; OPTION CODE=GE; OPTION CODE=GF; OPTION CODE=GG; OPTION CODE=GH; OPTION CODE=SB; OPTION CODE=SC; OPTION CODE=SF; OPTION CODE=SG; OPTION CODE=WB; OPTION CODE=WC; OPTION CODE=WE; OPTION CODE=WF; OPTION CODE=WG; OPTION CODE=WH

mainSU00304248i201405-201503

OPTION CODE-FM; OPTION CODE=AV; OPTION CODE=AW; OPTION CODE=DV; OPTION CODE=DW; OPTION CODE=EV; OPTION CODE=EW; OPTION CODE=FB; OPTION CODE=FC; OPTION CODE=FF; OPTION CODE=FG; OPTION CODE=FL; OPTION CODE=FN; OPTION CODE=FO; OPTION CODE=FP; OPTION CODE=FT; OPTION CODE=FU; OPTION CODE=FV; OPTION CODE=HV; OPTION CODE=HW; OPTION CODE=JL; OPTION CODE=JN; OPTION CODE=JU; OPTION CODE=JV; OPTION CODE=JW; OPTION CODE=KX; OPTION CODE=LL; OPTION CODE=LN; OPTION CODE=LU; OPTION CODE=LV; OPTION CODE=ML; OPTION CODE=MN; OPTION CODE=MU; OPTION CODE=MV; OPTION CODE=MW; OPTION CODE=NB; OPTION CODE=NC; OPTION CODE=NF; OPTION CODE=NG; OPTION CODE=NL; OPTION CODE=NM; OPTION CODE=NN; OPTION CODE=NO; OPTION CODE=NP; OPTION CODE=NT; OPTION CODE=NU; OPTION CODE=NV; OPTION CODE=NW; OPTION CODE=OX; OPTION CODE=RL; OPTION CODE=RN; OPTION CODE=RU; OPTION CODE=RV; OPTION CODE=TL; OPTION CODE=TN; OPTION CODE=TU; OPTION CODE=TV; OPTION CODE=VL; OPTION CODE=VN; OPTION CODE=VV; OPTION CODE=XV; OPTION CODE=XW; OPTION CODE=YB; OPTION CODE=YC; OPTION CODE=YF; OPTION CODE=YG; OPTION CODE=YL; OPTION CODE=YM; OPTION CODE=YN; OPTION CODE=YO; OPTION CODE=YP; OPTION CODE=YT; OPTION CODE=YU; OPTION CODE=YV

45201PNUT, STEERING WHEEL SET

mainSU00300056i201204-201308

45713ADAMPER, STEERING SHAKE

mainSU00300857i201504-201607

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

SU00300856

mainSU003-00856

SU00304251

mainSU003-04251
