REAR AXLE HOUSING & DIFFERENTIAL

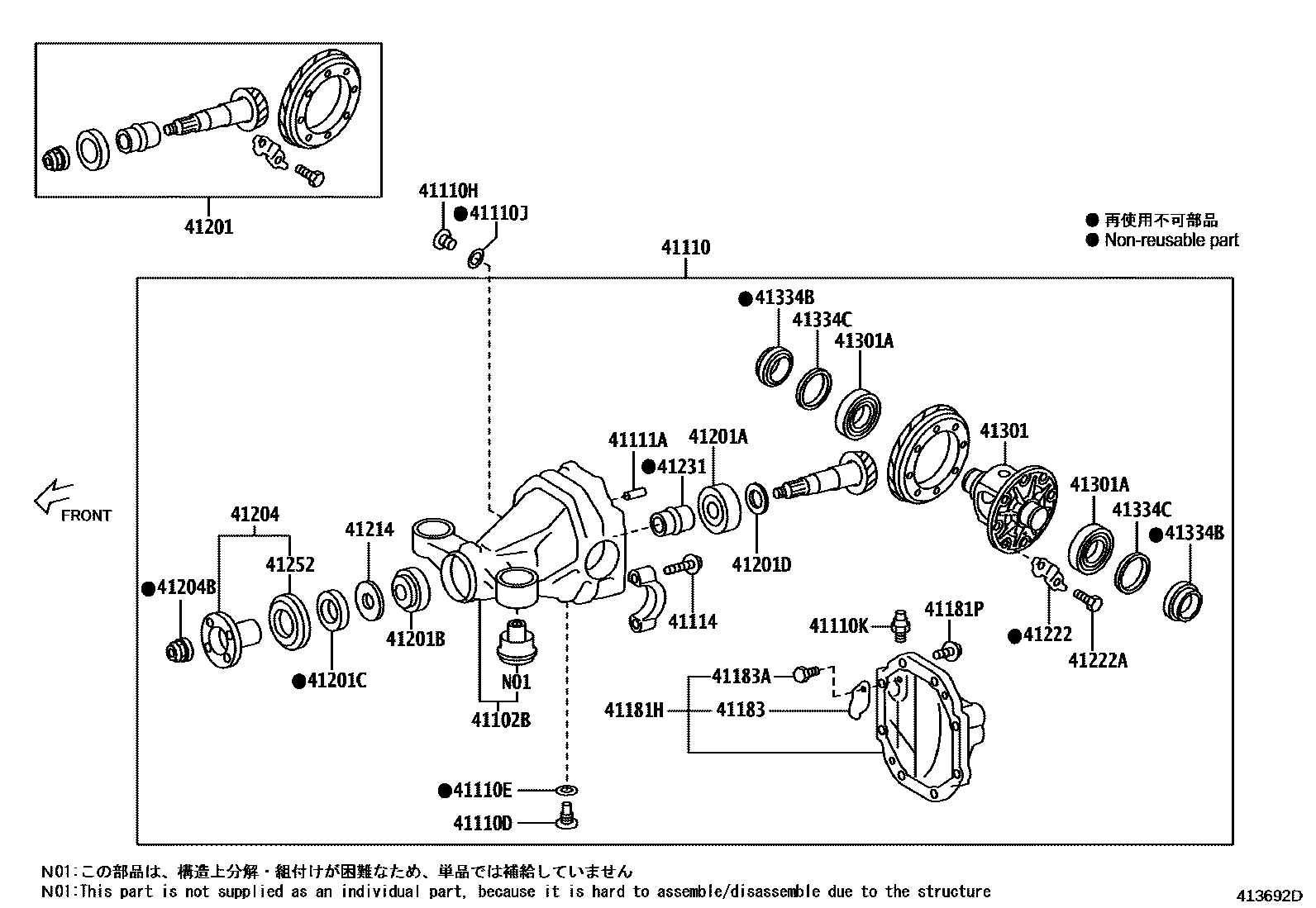

Parts diagram
41102BCARRIER SUB-ASSY, DIFFERENTIAL W/MOUNT
main41102-30030i201204-201607
41110CARRIER ASSY, DIFFERENTIAL, REAR
main41110-18020i201204-201210
*FGR=41:10=4.100
sub41110-18021
main41110-18021i201210-201607
*FGR=41:10=4.100
main41110-18021i201307-201607
*FGR=41:10=4.100,DESTINATION CODE=KA
main41110-30A02i201204-201210
*FGR=41:10=4.100
sub41110-30A03
main41110-30A03i201405-201607
*FGR=41:10=4.100,DESTINATION CODE=KY
main41110-30A03i201307-201607
*FGR=41:10=4.100,DESTINATION CODE=ER
main41110-30A03i201210-201607
*FGR=41:10=4.100
main41110-30A03i201307-201607
*FGR=41:10=4.100,DESTINATION CODE=EK
main41110-30A03i201307-201607
*FGR=41:10=4.100,DESTINATION CODE=KC
main41110-30A03i201307-201607
*FGR=41:10=4.100,DESTINATION CODE=KE
main41110-30A03i201307-201607
*FGR=41:10=4.100,DESTINATION CODE=EN
main41110-30A03i201307-201607
*FGR=41:10=4.100,DESTINATION CODE=K2
main41110-30A03i201307-201607
*FGR=41:10=4.100,DESTINATION CODE=K8
main41110-53203i201204-201210
*FGR=41:11=3.727
sub41110-53204
main41110-53204i201210-201503
*FGR=41:11=3.727
41110DPLUG (FOR REAR DIFFERENTIAL DRAIN)
main90341-18035i201204-201607
41110EGASKET (FOR REAR DIFFERENTIAL DRAIN PLUG)
main12157-10010i201204-201607
41110HPLUG (FOR REAR DIFFERENTIAL FILLER)
mainSU00300304i201204-201607
subSU003-07490
subSU003-07491
41110JGASKET (FOR REAR DIFFERENTIAL FILLER PLUG)
mainSU00300122i201204-201607
41110KPLUG, BREATHER (FOR REAR DIFFERENTIAL)
main90930-03077i201204-201607
41111APIN, STRAIGHT (FOR REAR DIFFERENTIAL CARRIER)
main90250-08120i201204-201607
41114BOLT, REAR DIFFERENTIAL BEARING CAP
main90105-12164i201204-201607
41181HCOVER, REAR DIFFERENTIAL CARRIER
main41108-53020i201204-201210
sub41108-53021
main41108-53021i201210-201607
41181PBOLT (FOR REAR DIFFERENTIAL CARRIER COVER SETTING)
main90105-10417i201204-201607
41183DEFLECTOR, REAR DIFFERENTIAL BREATHER PLUG OIL
main41183-53020i201204-201607
41183ABOLT (FOR REAR DIFFERENTIAL BREATHER PLUG OIL DEFLECTOR)
main91611-B0614i201204-201607
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
main41201-19605i201204-201308
*FGR=41:10=4.100
sub41201-19606
main41201-19606i201309-201607
*FGR=41:10=4.100
main41201-80050i201204-201308
*FGR=41:11=3.727
sub41201-80781
main41201-80781i201309-201503
*FGR=41:11=3.727
41201ABEARING (FOR REAR DRIVE PINION REAR)
main90366-35133i201204-201210
sub90366-35170
main90366-35170i201210-201607
41201BBEARING (FOR REAR DRIVE PINION FRONT)
main90366-30093i201204-201210
sub90366-30108
main90366-30108i201210-201607
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
main90311-38070i201204-201607
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
main90201-35497i201307-201607
OD=47,T=1.70,DESTINATION CODE=K8
main90201-35497i201307-201607
OD=47,T=1.70,DESTINATION CODE=EN
main90201-35497i201307-201607
OD=47,T=1.70,DESTINATION CODE=KE
main90201-35497i201307-201607
OD=47,T=1.70,DESTINATION CODE=KC
main90201-35497i201307-201607
OD=47,T=1.70,DESTINATION CODE=KA
main90201-35497i201307-201607
OD=47,T=1.70,DESTINATION CODE=ER
main90201-35497i201307-201607
OD=47,T=1.70,DESTINATION CODE=EK
main90201-35497i201204-201607
OD=47,T=1.70
main90201-35497i201405-201607
OD=47,T=1.70,DESTINATION CODE=KY
main90201-35497i201307-201607
OD=47,T=1.70,DESTINATION CODE=K2
main90201-35498i201307-201607
OD=47,T=1.73,DESTINATION CODE=ER
main90201-35498i201405-201607
OD=47,T=1.73,DESTINATION CODE=KY
main90201-35498i201307-201607
OD=47,T=1.73,DESTINATION CODE=EK
main90201-35498i201307-201607
OD=47,T=1.73,DESTINATION CODE=KA
main90201-35498i201307-201607
OD=47,T=1.73,DESTINATION CODE=KC
main90201-35498i201307-201607
OD=47,T=1.73,DESTINATION CODE=KE
main90201-35498i201307-201607
OD=47,T=1.73,DESTINATION CODE=EN
main90201-35498i201307-201607
OD=47,T=1.73,DESTINATION CODE=K2
main90201-35498i201307-201607
OD=47,T=1.73,DESTINATION CODE=K8
main90201-35498i201204-201607
OD=47,T=1.73
main90201-35499i201307-201607
OD=47,T=1.76,DESTINATION CODE=K2
main90201-35499i201307-201607
OD=47,T=1.76,DESTINATION CODE=K8
main90201-35499i201204-201607
OD=47,T=1.76
main90201-35499i201307-201607
OD=47,T=1.76,DESTINATION CODE=EK
main90201-35499i201307-201607
OD=47,T=1.76,DESTINATION CODE=ER
main90201-35499i201307-201607
OD=47,T=1.76,DESTINATION CODE=KA
main90201-35499i201307-201607
OD=47,T=1.76,DESTINATION CODE=KC
main90201-35499i201307-201607
OD=47,T=1.76,DESTINATION CODE=KE
main90201-35499i201307-201607
OD=47,T=1.76,DESTINATION CODE=EN
main90201-35499i201405-201607
OD=47,T=1.76,DESTINATION CODE=KY
main90201-35500i201204-201607
OD=47,T=1.79
main90201-35500i201405-201607
OD=47,T=1.79,DESTINATION CODE=KY
main90201-35500i201307-201607
OD=47,T=1.79,DESTINATION CODE=EK
main90201-35500i201307-201607
OD=47,T=1.79,DESTINATION CODE=ER
main90201-35500i201307-201607
OD=47,T=1.79,DESTINATION CODE=KA
main90201-35500i201307-201607
OD=47,T=1.79,DESTINATION CODE=KC
main90201-35500i201307-201607
OD=47,T=1.79,DESTINATION CODE=KE
main90201-35500i201307-201607
OD=47,T=1.79,DESTINATION CODE=EN
main90201-35500i201307-201607
OD=47,T=1.79,DESTINATION CODE=K2
main90201-35500i201307-201607
OD=47,T=1.79,DESTINATION CODE=K8
main90201-35501i201307-201607
OD=47,T=1.82,DESTINATION CODE=K2
main90201-35501i201307-201607
OD=47,T=1.82,DESTINATION CODE=EN
main90201-35501i201307-201607
OD=47,T=1.82,DESTINATION CODE=KE
main90201-35501i201307-201607
OD=47,T=1.82,DESTINATION CODE=KC
main90201-35501i201307-201607
OD=47,T=1.82,DESTINATION CODE=KA
main90201-35501i201307-201607
OD=47,T=1.82,DESTINATION CODE=ER
main90201-35501i201307-201607
OD=47,T=1.82,DESTINATION CODE=EK
main90201-35501i201204-201607
OD=47,T=1.82
main90201-35501i201307-201607
OD=47,T=1.82,DESTINATION CODE=K8
main90201-35501i201405-201607
OD=47,T=1.82,DESTINATION CODE=KY
main90201-35502i201204-201607
OD=47,T=1.85
main90201-35502i201405-201607
OD=47,T=1.85,DESTINATION CODE=KY
main90201-35502i201307-201607
OD=47,T=1.85,DESTINATION CODE=K8
main90201-35502i201307-201607
OD=47,T=1.85,DESTINATION CODE=K2
main90201-35502i201307-201607
OD=47,T=1.85,DESTINATION CODE=EN
main90201-35502i201307-201607
OD=47,T=1.85,DESTINATION CODE=KE
main90201-35502i201307-201607
OD=47,T=1.85,DESTINATION CODE=KC
main90201-35502i201307-201607
OD=47,T=1.85,DESTINATION CODE=KA
main90201-35502i201307-201607
OD=47,T=1.85,DESTINATION CODE=ER
main90201-35502i201307-201607
OD=47,T=1.85,DESTINATION CODE=EK
main90201-35503i201307-201607
OD=47,T=1.88,DESTINATION CODE=ER
main90201-35503i201307-201607
OD=47,T=1.88,DESTINATION CODE=KC
main90201-35503i201307-201607
OD=47,T=1.88,DESTINATION CODE=KE
main90201-35503i201307-201607
OD=47,T=1.88,DESTINATION CODE=EN
main90201-35503i201307-201607
OD=47,T=1.88,DESTINATION CODE=K2
main90201-35503i201307-201607
OD=47,T=1.88,DESTINATION CODE=K8
main90201-35503i201405-201607
OD=47,T=1.88,DESTINATION CODE=KY
main90201-35503i201204-201607
OD=47,T=1.88
main90201-35503i201307-201607
OD=47,T=1.88,DESTINATION CODE=EK
main90201-35503i201307-201607
OD=47,T=1.88,DESTINATION CODE=KA
main90201-35504i201307-201607
OD=47,T=1.91,DESTINATION CODE=ER
main90201-35504i201204-201607
OD=47,T=1.91
main90201-35504i201307-201607
OD=47,T=1.91,DESTINATION CODE=EK
main90201-35504i201307-201607
OD=47,T=1.91,DESTINATION CODE=KA
main90201-35504i201307-201607
OD=47,T=1.91,DESTINATION CODE=KC
main90201-35504i201307-201607
OD=47,T=1.91,DESTINATION CODE=KE
main90201-35504i201307-201607
OD=47,T=1.91,DESTINATION CODE=EN
main90201-35504i201307-201607
OD=47,T=1.91,DESTINATION CODE=K2
main90201-35504i201307-201607
OD=47,T=1.91,DESTINATION CODE=K8
main90201-35504i201405-201607
OD=47,T=1.91,DESTINATION CODE=KY
main90201-35505i201405-201607
OD=47,T=1.94,DESTINATION CODE=KY
main90201-35505i201307-201607
OD=47,T=1.94,DESTINATION CODE=K8
main90201-35505i201307-201607
OD=47,T=1.94,DESTINATION CODE=K2
main90201-35505i201307-201607
OD=47,T=1.94,DESTINATION CODE=EN
main90201-35505i201307-201607
OD=47,T=1.94,DESTINATION CODE=KE
main90201-35505i201307-201607
OD=47,T=1.94,DESTINATION CODE=KC
main90201-35505i201307-201607
OD=47,T=1.94,DESTINATION CODE=KA
main90201-35505i201307-201607
OD=47,T=1.94,DESTINATION CODE=ER
main90201-35505i201307-201607
OD=47,T=1.94,DESTINATION CODE=EK
main90201-35505i201204-201607
OD=47,T=1.94
main90201-35506i201307-201607
OD=47,T=1.97,DESTINATION CODE=ER
main90201-35506i201307-201607
OD=47,T=1.97,DESTINATION CODE=EK
main90201-35506i201204-201607
OD=47,T=1.97
main90201-35506i201405-201607
OD=47,T=1.97,DESTINATION CODE=KY
main90201-35506i201307-201607
OD=47,T=1.97,DESTINATION CODE=K8
main90201-35506i201307-201607
OD=47,T=1.97,DESTINATION CODE=K2
main90201-35506i201307-201607
OD=47,T=1.97,DESTINATION CODE=EN
main90201-35506i201307-201607
OD=47,T=1.97,DESTINATION CODE=KE
main90201-35506i201307-201607
OD=47,T=1.97,DESTINATION CODE=KC
main90201-35506i201307-201607
OD=47,T=1.97,DESTINATION CODE=KA
main90201-35507i201307-201607
OD=47,T=2.00,DESTINATION CODE=EN
main90201-35507i201307-201607
OD=47,T=2.00,DESTINATION CODE=K8
main90201-35507i201307-201607
OD=47,T=2.00,DESTINATION CODE=K2
main90201-35507i201307-201607
OD=47,T=2.00,DESTINATION CODE=KE
main90201-35507i201307-201607
OD=47,T=2.00,DESTINATION CODE=KC
main90201-35507i201307-201607
OD=47,T=2.00,DESTINATION CODE=KA
main90201-35507i201307-201607
OD=47,T=2.00,DESTINATION CODE=ER
main90201-35507i201307-201607
OD=47,T=2.00,DESTINATION CODE=EK
main90201-35507i201204-201607
OD=47,T=2.00
main90201-35507i201405-201607
OD=47,T=2.00,DESTINATION CODE=KY
main90201-35508i201307-201607
OD=47,T=2.03,DESTINATION CODE=EK
main90201-35508i201204-201607
OD=47,T=2.03
main90201-35508i201405-201607
OD=47,T=2.03,DESTINATION CODE=KY
main90201-35508i201307-201607
OD=47,T=2.03,DESTINATION CODE=K8
main90201-35508i201307-201607
OD=47,T=2.03,DESTINATION CODE=K2
main90201-35508i201307-201607
OD=47,T=2.03,DESTINATION CODE=EN
main90201-35508i201307-201607
OD=47,T=2.03,DESTINATION CODE=KE
main90201-35508i201307-201607
OD=47,T=2.03,DESTINATION CODE=KC
main90201-35508i201307-201607
OD=47,T=2.03,DESTINATION CODE=KA
main90201-35508i201307-201607
OD=47,T=2.03,DESTINATION CODE=ER
main90201-35509i201307-201607
OD=47,T=2.06,DESTINATION CODE=K2
main90201-35509i201405-201607
OD=47,T=2.06,DESTINATION CODE=KY
main90201-35509i201204-201607
OD=47,T=2.06
main90201-35509i201307-201607
OD=47,T=2.06,DESTINATION CODE=EK
main90201-35509i201307-201607
OD=47,T=2.06,DESTINATION CODE=ER
main90201-35509i201307-201607
OD=47,T=2.06,DESTINATION CODE=KA
main90201-35509i201307-201607
OD=47,T=2.06,DESTINATION CODE=KC
main90201-35509i201307-201607
OD=47,T=2.06,DESTINATION CODE=KE
main90201-35509i201307-201607
OD=47,T=2.06,DESTINATION CODE=EN
main90201-35509i201307-201607
OD=47,T=2.06,DESTINATION CODE=K8
main90201-35510i201307-201607
OD=47,T=2.09,DESTINATION CODE=EN
main90201-35510i201204-201607
OD=47,T=2.09
main90201-35510i201307-201607
OD=47,T=2.09,DESTINATION CODE=EK
main90201-35510i201307-201607
OD=47,T=2.09,DESTINATION CODE=K8
main90201-35510i201307-201607
OD=47,T=2.09,DESTINATION CODE=K2
main90201-35510i201307-201607
OD=47,T=2.09,DESTINATION CODE=KE
main90201-35510i201307-201607
OD=47,T=2.09,DESTINATION CODE=KC
main90201-35510i201307-201607
OD=47,T=2.09,DESTINATION CODE=KA
main90201-35510i201307-201607
OD=47,T=2.09,DESTINATION CODE=ER
main90201-35510i201405-201607
OD=47,T=2.09,DESTINATION CODE=KY
main90201-35511i201307-201607
OD=47,T=2.12,DESTINATION CODE=K2
main90201-35511i201307-201607
OD=47,T=2.12,DESTINATION CODE=KE
main90201-35511i201307-201607
OD=47,T=2.12,DESTINATION CODE=KC
main90201-35511i201307-201607
OD=47,T=2.12,DESTINATION CODE=KA
main90201-35511i201307-201607
OD=47,T=2.12,DESTINATION CODE=ER
main90201-35511i201307-201607
OD=47,T=2.12,DESTINATION CODE=EK
main90201-35511i201204-201607
OD=47,T=2.12
main90201-35511i201405-201607
OD=47,T=2.12,DESTINATION CODE=KY
main90201-35511i201307-201607
OD=47,T=2.12,DESTINATION CODE=K8
main90201-35511i201307-201607
OD=47,T=2.12,DESTINATION CODE=EN
main90201-35512i201307-201607
OD=47,T=2.15,DESTINATION CODE=KC
main90201-35512i201204-201607
OD=47,T=2.15
main90201-35512i201307-201607
OD=47,T=2.15,DESTINATION CODE=EK
main90201-35512i201307-201607
OD=47,T=2.15,DESTINATION CODE=ER
main90201-35512i201307-201607
OD=47,T=2.15,DESTINATION CODE=KA
main90201-35512i201307-201607
OD=47,T=2.15,DESTINATION CODE=KE
main90201-35512i201307-201607
OD=47,T=2.15,DESTINATION CODE=EN
main90201-35512i201307-201607
OD=47,T=2.15,DESTINATION CODE=K2
main90201-35512i201307-201607
OD=47,T=2.15,DESTINATION CODE=K8
main90201-35512i201405-201607
OD=47,T=2.15,DESTINATION CODE=KY
main90201-35513i201307-201607
OD=47,T=2.18,DESTINATION CODE=K8
main90201-35513i201204-201607
OD=47,T=2.18
main90201-35513i201307-201607
OD=47,T=2.18,DESTINATION CODE=EK
main90201-35513i201307-201607
OD=47,T=2.18,DESTINATION CODE=ER
main90201-35513i201307-201607
OD=47,T=2.18,DESTINATION CODE=KA
main90201-35513i201307-201607
OD=47,T=2.18,DESTINATION CODE=KC
main90201-35513i201307-201607
OD=47,T=2.18,DESTINATION CODE=KE
main90201-35513i201307-201607
OD=47,T=2.18,DESTINATION CODE=EN
main90201-35513i201307-201607
OD=47,T=2.18,DESTINATION CODE=K2
main90201-35513i201405-201607
OD=47,T=2.18,DESTINATION CODE=KY
main90201-35514i201204-201607
OD=47,T=2.21
main90201-35514i201405-201607
OD=47,T=2.21,DESTINATION CODE=KY
main90201-35514i201307-201607
OD=47,T=2.21,DESTINATION CODE=K8
main90201-35514i201307-201607
OD=47,T=2.21,DESTINATION CODE=K2
main90201-35514i201307-201607
OD=47,T=2.21,DESTINATION CODE=EN
main90201-35514i201307-201607
OD=47,T=2.21,DESTINATION CODE=KE
main90201-35514i201307-201607
OD=47,T=2.21,DESTINATION CODE=KC
main90201-35514i201307-201607
OD=47,T=2.21,DESTINATION CODE=KA
main90201-35514i201307-201607
OD=47,T=2.21,DESTINATION CODE=ER
main90201-35514i201307-201607
OD=47,T=2.21,DESTINATION CODE=EK
main90201-35515i201307-201607
OD=47,T=2.24,MARK 01,DESTINATION CODE=K8
main90201-35515i201405-201607
OD=47,T=2.24,MARK 01,DESTINATION CODE=KY
main90201-35515i201307-201607
OD=47,T=2.24,MARK 01,DESTINATION CODE=K2
main90201-35515i201307-201607
OD=47,T=2.24,MARK 01,DESTINATION CODE=EN
main90201-35515i201307-201607
OD=47,T=2.24,MARK 01,DESTINATION CODE=KE
main90201-35515i201307-201607
OD=47,T=2.24,MARK 01,DESTINATION CODE=KC
main90201-35515i201307-201607
OD=47,T=2.24,MARK 01,DESTINATION CODE=KA
main90201-35515i201307-201607
OD=47,T=2.24,MARK 01,DESTINATION CODE=ER
main90201-35515i201307-201607
OD=47,T=2.24,MARK 01,DESTINATION CODE=EK
main90201-35515i201204-201607
OD=47,T=2.24,MARK 01
main90201-35516i201307-201607
OD=47,T=2.27,MARK 02,DESTINATION CODE=KE
main90201-35516i201307-201607
OD=47,T=2.27,MARK 02,DESTINATION CODE=EN
main90201-35516i201307-201607
OD=47,T=2.27,MARK 02,DESTINATION CODE=K2
main90201-35516i201307-201607
OD=47,T=2.27,MARK 02,DESTINATION CODE=K8
main90201-35516i201405-201607
OD=47,T=2.27,MARK 02,DESTINATION CODE=KY
main90201-35516i201204-201607
OD=47,T=2.27,MARK 02
main90201-35516i201307-201607
OD=47,T=2.27,MARK 02,DESTINATION CODE=EK
main90201-35516i201307-201607
OD=47,T=2.27,MARK 02,DESTINATION CODE=ER
main90201-35516i201307-201607
OD=47,T=2.27,MARK 02,DESTINATION CODE=KA
main90201-35516i201307-201607
OD=47,T=2.27,MARK 02,DESTINATION CODE=KC
main90201-35517i201307-201607
OD=47,T=2.30,MARK 03,DESTINATION CODE=EK
main90201-35517i201307-201607
OD=47,T=2.30,MARK 03,DESTINATION CODE=KA
main90201-35517i201307-201607
OD=47,T=2.30,MARK 03,DESTINATION CODE=KC
main90201-35517i201307-201607
OD=47,T=2.30,MARK 03,DESTINATION CODE=KE
main90201-35517i201307-201607
OD=47,T=2.30,MARK 03,DESTINATION CODE=EN
main90201-35517i201307-201607
OD=47,T=2.30,MARK 03,DESTINATION CODE=K2
main90201-35517i201307-201607
OD=47,T=2.30,MARK 03,DESTINATION CODE=K8
main90201-35517i201204-201607
OD=47,T=2.30,MARK 03
main90201-35517i201307-201607
OD=47,T=2.30,MARK 03,DESTINATION CODE=ER
main90201-35517i201405-201607
OD=47,T=2.30,MARK 03,DESTINATION CODE=KY
main90201-35518i201307-201607
OD=47,T=2.33,MARK 04,DESTINATION CODE=KC
main90201-35518i201405-201607
OD=47,T=2.33,MARK 04,DESTINATION CODE=KY
main90201-35518i201307-201607
OD=47,T=2.33,MARK 04,DESTINATION CODE=K8
main90201-35518i201307-201607
OD=47,T=2.33,MARK 04,DESTINATION CODE=K2
main90201-35518i201307-201607
OD=47,T=2.33,MARK 04,DESTINATION CODE=EN
main90201-35518i201307-201607
OD=47,T=2.33,MARK 04,DESTINATION CODE=KE
main90201-35518i201307-201607
OD=47,T=2.33,MARK 04,DESTINATION CODE=KA
main90201-35518i201307-201607
OD=47,T=2.33,MARK 04,DESTINATION CODE=ER
main90201-35518i201307-201607
OD=47,T=2.33,MARK 04,DESTINATION CODE=EK
main90201-35518i201204-201607
OD=47,T=2.33,MARK 04
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
main41204-35041i201204-201607
41204BNUT (FOR REAR DRIVE PINION)
main90179-20018i201204-201607
OD=37
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
main41214-26010i201204-201607
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
main41222-22010i201204-201607
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
main90101-11353i201204-201607
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
main41231-24010i201204-201607
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
main41252-35020i201204-201607
41301CASE SUB-ASSY, REAR DIFFERENTIAL
main41301-53020i201307-201607
DESTINATION CODE=KA
main41301-53020i201204-201308
main41301-53032i201307-201607
DESTINATION CODE=K2
main41301-53032i201307-201607
DESTINATION CODE=K8
main41301-53032i201307-201607
DESTINATION CODE=EK
main41301-53032i201307-201607
DESTINATION CODE=ER
main41301-53032i201307-201607
DESTINATION CODE=KC
main41301-53032i201307-201607
DESTINATION CODE=KE
main41301-53032i201307-201607
DESTINATION CODE=EN
main41301-53032i201405-201607
DESTINATION CODE=KY
main41301-53032i201204-201308
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
main90366-50001i201204-201607
41334BSEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
main90311-43009i201204-201607
41334CWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
main90201-52001i201307-201607
T=2.58,MARK 01,DESTINATION CODE=KC
main90201-52001i201204-201607
T=2.58,MARK 01
main90201-52001i201307-201607
T=2.58,MARK 01,DESTINATION CODE=EK
main90201-52001i201307-201607
T=2.58,MARK 01,DESTINATION CODE=ER
main90201-52001i201307-201607
T=2.58,MARK 01,DESTINATION CODE=KA
main90201-52001i201307-201607
T=2.58,MARK 01,DESTINATION CODE=KE
main90201-52001i201307-201607
T=2.58,MARK 01,DESTINATION CODE=EN
main90201-52001i201307-201607
T=2.58,MARK 01,DESTINATION CODE=K2
main90201-52001i201307-201607
T=2.58,MARK 01,DESTINATION CODE=K8
main90201-52001i201405-201607
T=2.58,MARK 01,DESTINATION CODE=KY
main90201-52003i201405-201607
T=2.64,MARK 03,DESTINATION CODE=KY
main90201-52003i201307-201607
T=2.64,MARK 03,DESTINATION CODE=K8
main90201-52003i201307-201607
T=2.64,MARK 03,DESTINATION CODE=K2
main90201-52003i201307-201607
T=2.64,MARK 03,DESTINATION CODE=EN
main90201-52003i201307-201607
T=2.64,MARK 03,DESTINATION CODE=KE
main90201-52003i201307-201607
T=2.64,MARK 03,DESTINATION CODE=KC
main90201-52003i201307-201607
T=2.64,MARK 03,DESTINATION CODE=KA
main90201-52003i201307-201607
T=2.64,MARK 03,DESTINATION CODE=ER
main90201-52003i201307-201607
T=2.64,MARK 03,DESTINATION CODE=EK
main90201-52003i201204-201607
T=2.64,MARK 03
main90201-52005i201204-201607
T=2.70,MARK 05
main90201-52005i201405-201607
T=2.70,MARK 05,DESTINATION CODE=KY
main90201-52005i201307-201607
T=2.70,MARK 05,DESTINATION CODE=K8
main90201-52005i201307-201607
T=2.70,MARK 05,DESTINATION CODE=K2
main90201-52005i201307-201607
T=2.70,MARK 05,DESTINATION CODE=EN
main90201-52005i201307-201607
T=2.70,MARK 05,DESTINATION CODE=KE
main90201-52005i201307-201607
T=2.70,MARK 05,DESTINATION CODE=KC
main90201-52005i201307-201607
T=2.70,MARK 05,DESTINATION CODE=KA
main90201-52005i201307-201607
T=2.70,MARK 05,DESTINATION CODE=ER
main90201-52005i201307-201607
T=2.70,MARK 05,DESTINATION CODE=EK
main90201-52007i201405-201607
T=2.76,MARK 07,DESTINATION CODE=KY
main90201-52007i201307-201607
T=2.76,MARK 07,DESTINATION CODE=KC
main90201-52007i201307-201607
T=2.76,MARK 07,DESTINATION CODE=KE
main90201-52007i201307-201607
T=2.76,MARK 07,DESTINATION CODE=EN
main90201-52007i201307-201607
T=2.76,MARK 07,DESTINATION CODE=K2
main90201-52007i201307-201607
T=2.76,MARK 07,DESTINATION CODE=K8
main90201-52007i201204-201607
T=2.76,MARK 07
main90201-52007i201307-201607
T=2.76,MARK 07,DESTINATION CODE=EK
main90201-52007i201307-201607
T=2.76,MARK 07,DESTINATION CODE=ER
main90201-52007i201307-201607
T=2.76,MARK 07,DESTINATION CODE=KA
main90201-52009i201307-201607
T=2.82,MARK 09,DESTINATION CODE=ER
main90201-52009i201307-201607
T=2.82,MARK 09,DESTINATION CODE=K8
main90201-52009i201405-201607
T=2.82,MARK 09,DESTINATION CODE=KY
main90201-52009i201204-201607
T=2.82,MARK 09
main90201-52009i201307-201607
T=2.82,MARK 09,DESTINATION CODE=EK
main90201-52009i201307-201607
T=2.82,MARK 09,DESTINATION CODE=KA
main90201-52009i201307-201607
T=2.82,MARK 09,DESTINATION CODE=KC
main90201-52009i201307-201607
T=2.82,MARK 09,DESTINATION CODE=KE
main90201-52009i201307-201607
T=2.82,MARK 09,DESTINATION CODE=EN
main90201-52009i201307-201607
T=2.82,MARK 09,DESTINATION CODE=K2
main90201-52011i201307-201607
T=2.88,MARK 11,DESTINATION CODE=K8
main90201-52011i201307-201607
T=2.88,MARK 11,DESTINATION CODE=EN
main90201-52011i201307-201607
T=2.88,MARK 11,DESTINATION CODE=KE
main90201-52011i201307-201607
T=2.88,MARK 11,DESTINATION CODE=KC
main90201-52011i201307-201607
T=2.88,MARK 11,DESTINATION CODE=KA
main90201-52011i201307-201607
T=2.88,MARK 11,DESTINATION CODE=ER
main90201-52011i201307-201607
T=2.88,MARK 11,DESTINATION CODE=EK
main90201-52011i201204-201607
T=2.88,MARK 11
main90201-52011i201405-201607
T=2.88,MARK 11,DESTINATION CODE=KY
main90201-52011i201307-201607
T=2.88,MARK 11,DESTINATION CODE=K2
main90201-52013i201307-201607
T=2.94,MARK 13,DESTINATION CODE=K2
main90201-52013i201307-201607
T=2.94,MARK 13,DESTINATION CODE=EN
main90201-52013i201307-201607
T=2.94,MARK 13,DESTINATION CODE=KE
main90201-52013i201307-201607
T=2.94,MARK 13,DESTINATION CODE=KC
main90201-52013i201307-201607
T=2.94,MARK 13,DESTINATION CODE=KA
main90201-52013i201307-201607
T=2.94,MARK 13,DESTINATION CODE=ER
main90201-52013i201307-201607
T=2.94,MARK 13,DESTINATION CODE=EK
main90201-52013i201204-201607
T=2.94,MARK 13
main90201-52013i201405-201607
T=2.94,MARK 13,DESTINATION CODE=KY
main90201-52013i201307-201607
T=2.94,MARK 13,DESTINATION CODE=K8
main90201-52015i201204-201607
T=3.00,MARK 15
main90201-52015i201307-201607
T=3.00,MARK 15,DESTINATION CODE=K2
main90201-52015i201307-201607
T=3.00,MARK 15,DESTINATION CODE=EN
main90201-52015i201307-201607
T=3.00,MARK 15,DESTINATION CODE=KE
main90201-52015i201307-201607
T=3.00,MARK 15,DESTINATION CODE=KC
main90201-52015i201307-201607
T=3.00,MARK 15,DESTINATION CODE=KA
main90201-52015i201307-201607
T=3.00,MARK 15,DESTINATION CODE=ER
main90201-52015i201307-201607
T=3.00,MARK 15,DESTINATION CODE=EK
main90201-52015i201307-201607
T=3.00,MARK 15,DESTINATION CODE=K8
main90201-52015i201405-201607
T=3.00,MARK 15,DESTINATION CODE=KY
main90201-52017i201307-201607
T=3.06,MARK 17,DESTINATION CODE=KE
main90201-52017i201204-201607
T=3.06,MARK 17
main90201-52017i201307-201607
T=3.06,MARK 17,DESTINATION CODE=EK
main90201-52017i201307-201607
T=3.06,MARK 17,DESTINATION CODE=ER
main90201-52017i201307-201607
T=3.06,MARK 17,DESTINATION CODE=KA
main90201-52017i201307-201607
T=3.06,MARK 17,DESTINATION CODE=KC
main90201-52017i201307-201607
T=3.06,MARK 17,DESTINATION CODE=EN
main90201-52017i201307-201607
T=3.06,MARK 17,DESTINATION CODE=K2
main90201-52017i201307-201607
T=3.06,MARK 17,DESTINATION CODE=K8
main90201-52017i201405-201607
T=3.06,MARK 17,DESTINATION CODE=KY
main90201-52019i201405-201607
T=3.12,MARK 19,DESTINATION CODE=KY
main90201-52019i201307-201607
T=3.12,MARK 19,DESTINATION CODE=K8
main90201-52019i201307-201607
T=3.12,MARK 19,DESTINATION CODE=K2
main90201-52019i201307-201607
T=3.12,MARK 19,DESTINATION CODE=EN
main90201-52019i201307-201607
T=3.12,MARK 19,DESTINATION CODE=KE
main90201-52019i201307-201607
T=3.12,MARK 19,DESTINATION CODE=KC
main90201-52019i201307-201607
T=3.12,MARK 19,DESTINATION CODE=KA
main90201-52019i201307-201607
T=3.12,MARK 19,DESTINATION CODE=ER
main90201-52019i201307-201607
T=3.12,MARK 19,DESTINATION CODE=EK
main90201-52019i201204-201607
T=3.12,MARK 19
main90201-52021i201307-201607
T=3.18,MARK 21,DESTINATION CODE=K2
main90201-52021i201204-201607
T=3.18,MARK 21
main90201-52021i201307-201607
T=3.18,MARK 21,DESTINATION CODE=EK
main90201-52021i201307-201607
T=3.18,MARK 21,DESTINATION CODE=ER
main90201-52021i201307-201607
T=3.18,MARK 21,DESTINATION CODE=KA
main90201-52021i201307-201607
T=3.18,MARK 21,DESTINATION CODE=KC
main90201-52021i201307-201607
T=3.18,MARK 21,DESTINATION CODE=KE
main90201-52021i201307-201607
T=3.18,MARK 21,DESTINATION CODE=EN
main90201-52021i201307-201607
T=3.18,MARK 21,DESTINATION CODE=K8
main90201-52021i201405-201607
T=3.18,MARK 21,DESTINATION CODE=KY
main90201-52023i201307-201607
T=3.24,MARK 23,DESTINATION CODE=KE
main90201-52023i201307-201607
T=3.24,MARK 23,DESTINATION CODE=KC
main90201-52023i201307-201607
T=3.24,MARK 23,DESTINATION CODE=KA
main90201-52023i201307-201607
T=3.24,MARK 23,DESTINATION CODE=ER
main90201-52023i201307-201607
T=3.24,MARK 23,DESTINATION CODE=EK
main90201-52023i201204-201607
T=3.24,MARK 23
main90201-52023i201405-201607
T=3.24,MARK 23,DESTINATION CODE=KY
main90201-52023i201307-201607
T=3.24,MARK 23,DESTINATION CODE=K8
main90201-52023i201307-201607
T=3.24,MARK 23,DESTINATION CODE=K2
main90201-52023i201307-201607
T=3.24,MARK 23,DESTINATION CODE=EN
main90201-52025i201204-201607
T=3.30,MARK 25
main90201-52025i201307-201607
T=3.30,MARK 25,DESTINATION CODE=ER
main90201-52025i201307-201607
T=3.30,MARK 25,DESTINATION CODE=KA
main90201-52025i201307-201607
T=3.30,MARK 25,DESTINATION CODE=KC
main90201-52025i201307-201607
T=3.30,MARK 25,DESTINATION CODE=KE
main90201-52025i201307-201607
T=3.30,MARK 25,DESTINATION CODE=EN
main90201-52025i201307-201607
T=3.30,MARK 25,DESTINATION CODE=K2
main90201-52025i201307-201607
T=3.30,MARK 25,DESTINATION CODE=K8
main90201-52025i201405-201607
T=3.30,MARK 25,DESTINATION CODE=KY
main90201-52025i201307-201607
T=3.30,MARK 25,DESTINATION CODE=EK
main90201-52027i201307-201607
T=3.36,MARK 27,DESTINATION CODE=KA
main90201-52027i201204-201607
T=3.36,MARK 27
main90201-52027i201307-201607
T=3.36,MARK 27,DESTINATION CODE=EK
main90201-52027i201307-201607
T=3.36,MARK 27,DESTINATION CODE=ER
main90201-52027i201307-201607
T=3.36,MARK 27,DESTINATION CODE=KC
main90201-52027i201307-201607
T=3.36,MARK 27,DESTINATION CODE=KE
main90201-52027i201307-201607
T=3.36,MARK 27,DESTINATION CODE=EN
main90201-52027i201307-201607
T=3.36,MARK 27,DESTINATION CODE=K2
main90201-52027i201307-201607
T=3.36,MARK 27,DESTINATION CODE=K8
main90201-52027i201405-201607
T=3.36,MARK 27,DESTINATION CODE=KY
main90201-52029i201307-201607
T=3.42,MARK 29,DESTINATION CODE=KE
main90201-52029i201307-201607
T=3.42,MARK 29,DESTINATION CODE=EN
main90201-52029i201307-201607
T=3.42,MARK 29,DESTINATION CODE=K2
main90201-52029i201307-201607
T=3.42,MARK 29,DESTINATION CODE=K8
main90201-52029i201405-201607
T=3.42,MARK 29,DESTINATION CODE=KY
main90201-52029i201204-201607
T=3.42,MARK 29
main90201-52029i201307-201607
T=3.42,MARK 29,DESTINATION CODE=EK
main90201-52029i201307-201607
T=3.42,MARK 29,DESTINATION CODE=ER
main90201-52029i201307-201607
T=3.42,MARK 29,DESTINATION CODE=KA
main90201-52029i201307-201607
T=3.42,MARK 29,DESTINATION CODE=KC
main90201-52031i201307-201607
T=3.48,MARK 31,DESTINATION CODE=KC
main90201-52031i201204-201607
T=3.48,MARK 31
main90201-52031i201307-201607
T=3.48,MARK 31,DESTINATION CODE=EK
main90201-52031i201307-201607
T=3.48,MARK 31,DESTINATION CODE=ER
main90201-52031i201307-201607
T=3.48,MARK 31,DESTINATION CODE=KA
main90201-52031i201307-201607
T=3.48,MARK 31,DESTINATION CODE=KE
main90201-52031i201307-201607
T=3.48,MARK 31,DESTINATION CODE=EN
main90201-52031i201307-201607
T=3.48,MARK 31,DESTINATION CODE=K2
main90201-52031i201307-201607
T=3.48,MARK 31,DESTINATION CODE=K8
main90201-52031i201405-201607
T=3.48,MARK 31,DESTINATION CODE=KY
main90564-46014i201307-201607
T=2.60,MARK 32,DESTINATION CODE=EN
main90564-46014i201307-201607
T=2.60,MARK 32,DESTINATION CODE=KE
main90564-46014i201204-201607
T=2.60,MARK 32
main90564-46014i201405-201607
T=2.60,MARK 32,DESTINATION CODE=KY
main90564-46014i201307-201607
T=2.60,MARK 32,DESTINATION CODE=KC
main90564-46014i201307-201607
T=2.60,MARK 32,DESTINATION CODE=KA
main90564-46014i201307-201607
T=2.60,MARK 32,DESTINATION CODE=ER
main90564-46014i201307-201607
T=2.60,MARK 32,DESTINATION CODE=EK
main90564-46014i201307-201607
T=2.60,MARK 32,DESTINATION CODE=K8
main90564-46014i201307-201607
T=2.60,MARK 32,DESTINATION CODE=K2
main90564-46015i201307-201607
T=2.62,MARK 33,DESTINATION CODE=K8
main90564-46015i201307-201607
T=2.62,MARK 33,DESTINATION CODE=ER
main90564-46015i201307-201607
T=2.62,MARK 33,DESTINATION CODE=EK
main90564-46015i201204-201607
T=2.62,MARK 33
main90564-46015i201405-201607
T=2.62,MARK 33,DESTINATION CODE=KY
main90564-46015i201307-201607
T=2.62,MARK 33,DESTINATION CODE=K2
main90564-46015i201307-201607
T=2.62,MARK 33,DESTINATION CODE=EN
main90564-46015i201307-201607
T=2.62,MARK 33,DESTINATION CODE=KE
main90564-46015i201307-201607
T=2.62,MARK 33,DESTINATION CODE=KC
main90564-46015i201307-201607
T=2.62,MARK 33,DESTINATION CODE=KA
main90564-46016i201307-201607
T=2.66,MARK 34,DESTINATION CODE=KC
main90564-46016i201204-201607
T=2.66,MARK 34
main90564-46016i201307-201607
T=2.66,MARK 34,DESTINATION CODE=EK
main90564-46016i201307-201607
T=2.66,MARK 34,DESTINATION CODE=ER
main90564-46016i201307-201607
T=2.66,MARK 34,DESTINATION CODE=KA
main90564-46016i201307-201607
T=2.66,MARK 34,DESTINATION CODE=KE
main90564-46016i201307-201607
T=2.66,MARK 34,DESTINATION CODE=EN
main90564-46016i201307-201607
T=2.66,MARK 34,DESTINATION CODE=K2
main90564-46016i201307-201607
T=2.66,MARK 34,DESTINATION CODE=K8
main90564-46016i201405-201607
T=2.66,MARK 34,DESTINATION CODE=KY
main90564-46017i201307-201607
T=2.68,MARK 35,DESTINATION CODE=K8
main90564-46017i201204-201607
T=2.68,MARK 35
main90564-46017i201307-201607
T=2.68,MARK 35,DESTINATION CODE=EK
main90564-46017i201307-201607
T=2.68,MARK 35,DESTINATION CODE=ER
main90564-46017i201307-201607
T=2.68,MARK 35,DESTINATION CODE=KA
main90564-46017i201307-201607
T=2.68,MARK 35,DESTINATION CODE=KC
main90564-46017i201307-201607
T=2.68,MARK 35,DESTINATION CODE=KE
main90564-46017i201307-201607
T=2.68,MARK 35,DESTINATION CODE=EN
main90564-46017i201307-201607
T=2.68,MARK 35,DESTINATION CODE=K2
main90564-46017i201405-201607
T=2.68,MARK 35,DESTINATION CODE=KY
main90564-46018i201307-201607
T=2.72,MARK 36,DESTINATION CODE=K8
main90564-46018i201405-201607
T=2.72,MARK 36,DESTINATION CODE=KY
main90564-46018i201307-201607
T=2.72,MARK 36,DESTINATION CODE=K2
main90564-46018i201307-201607
T=2.72,MARK 36,DESTINATION CODE=EN
main90564-46018i201307-201607
T=2.72,MARK 36,DESTINATION CODE=KE
main90564-46018i201307-201607
T=2.72,MARK 36,DESTINATION CODE=KC
main90564-46018i201307-201607
T=2.72,MARK 36,DESTINATION CODE=KA
main90564-46018i201307-201607
T=2.72,MARK 36,DESTINATION CODE=ER
main90564-46018i201307-201607
T=2.72,MARK 36,DESTINATION CODE=EK
main90564-46018i201204-201607
T=2.72,MARK 36
main90564-46019i201204-201607
T=2.74,MARK 37
main90564-46019i201405-201607
T=2.74,MARK 37,DESTINATION CODE=KY
main90564-46019i201307-201607
T=2.74,MARK 37,DESTINATION CODE=K8
main90564-46019i201307-201607
T=2.74,MARK 37,DESTINATION CODE=K2
main90564-46019i201307-201607
T=2.74,MARK 37,DESTINATION CODE=EN
main90564-46019i201307-201607
T=2.74,MARK 37,DESTINATION CODE=KE
main90564-46019i201307-201607
T=2.74,MARK 37,DESTINATION CODE=KC
main90564-46019i201307-201607
T=2.74,MARK 37,DESTINATION CODE=KA
main90564-46019i201307-201607
T=2.74,MARK 37,DESTINATION CODE=ER
main90564-46019i201307-201607
T=2.74,MARK 37,DESTINATION CODE=EK
main90564-46020i201307-201607
T=2.78,MARK 38,DESTINATION CODE=EK
main90564-46020i201307-201607
T=2.78,MARK 38,DESTINATION CODE=K8
main90564-46020i201307-201607
T=2.78,MARK 38,DESTINATION CODE=K2
main90564-46020i201307-201607
T=2.78,MARK 38,DESTINATION CODE=EN
main90564-46020i201307-201607
T=2.78,MARK 38,DESTINATION CODE=KE
main90564-46020i201307-201607
T=2.78,MARK 38,DESTINATION CODE=KC
main90564-46020i201307-201607
T=2.78,MARK 38,DESTINATION CODE=KA
main90564-46020i201307-201607
T=2.78,MARK 38,DESTINATION CODE=ER
main90564-46020i201204-201607
T=2.78,MARK 38
main90564-46020i201405-201607
T=2.78,MARK 38,DESTINATION CODE=KY
main90564-46021i201307-201607
T=2.80,MARK 39,DESTINATION CODE=EK
main90564-46021i201204-201607
T=2.80,MARK 39
main90564-46021i201405-201607
T=2.80,MARK 39,DESTINATION CODE=KY
main90564-46021i201307-201607
T=2.80,MARK 39,DESTINATION CODE=K8
main90564-46021i201307-201607
T=2.80,MARK 39,DESTINATION CODE=K2
main90564-46021i201307-201607
T=2.80,MARK 39,DESTINATION CODE=EN
main90564-46021i201307-201607
T=2.80,MARK 39,DESTINATION CODE=KE
main90564-46021i201307-201607
T=2.80,MARK 39,DESTINATION CODE=KC
main90564-46021i201307-201607
T=2.80,MARK 39,DESTINATION CODE=KA
main90564-46021i201307-201607
T=2.80,MARK 39,DESTINATION CODE=ER
main90564-46022i201405-201607
T=2.84,MARK 40,DESTINATION CODE=KY
main90564-46022i201307-201607
T=2.84,MARK 40,DESTINATION CODE=K2
main90564-46022i201307-201607
T=2.84,MARK 40,DESTINATION CODE=EN
main90564-46022i201307-201607
T=2.84,MARK 40,DESTINATION CODE=KE
main90564-46022i201307-201607
T=2.84,MARK 40,DESTINATION CODE=KC
main90564-46022i201307-201607
T=2.84,MARK 40,DESTINATION CODE=KA
main90564-46022i201307-201607
T=2.84,MARK 40,DESTINATION CODE=ER
main90564-46022i201307-201607
T=2.84,MARK 40,DESTINATION CODE=EK
main90564-46022i201204-201607
T=2.84,MARK 40
main90564-46022i201307-201607
T=2.84,MARK 40,DESTINATION CODE=K8
main90564-46023i201307-201607
T=2.86,MARK 41,DESTINATION CODE=K2
main90564-46023i201307-201607
T=2.86,MARK 41,DESTINATION CODE=EN
main90564-46023i201307-201607
T=2.86,MARK 41,DESTINATION CODE=KE
main90564-46023i201307-201607
T=2.86,MARK 41,DESTINATION CODE=KC
main90564-46023i201307-201607
T=2.86,MARK 41,DESTINATION CODE=KA
main90564-46023i201307-201607
T=2.86,MARK 41,DESTINATION CODE=ER
main90564-46023i201307-201607
T=2.86,MARK 41,DESTINATION CODE=EK
main90564-46023i201204-201607
T=2.86,MARK 41
main90564-46023i201307-201607
T=2.86,MARK 41,DESTINATION CODE=K8
main90564-46023i201405-201607
T=2.86,MARK 41,DESTINATION CODE=KY
main90564-46024i201307-201607
T=2.90,MARK 42,DESTINATION CODE=ER
main90564-46024i201204-201607
T=2.90,MARK 42
main90564-46024i201405-201607
T=2.90,MARK 42,DESTINATION CODE=KY
main90564-46024i201307-201607
T=2.90,MARK 42,DESTINATION CODE=K8
main90564-46024i201307-201607
T=2.90,MARK 42,DESTINATION CODE=K2
main90564-46024i201307-201607
T=2.90,MARK 42,DESTINATION CODE=EN
main90564-46024i201307-201607
T=2.90,MARK 42,DESTINATION CODE=KE
main90564-46024i201307-201607
T=2.90,MARK 42,DESTINATION CODE=KC
main90564-46024i201307-201607
T=2.90,MARK 42,DESTINATION CODE=KA
main90564-46024i201307-201607
T=2.90,MARK 42,DESTINATION CODE=EK
main90564-46025i201307-201607
T=2.92,MARK 43,DESTINATION CODE=KA
main90564-46025i201307-201607
T=2.92,MARK 43,DESTINATION CODE=KE
main90564-46025i201307-201607
T=2.92,MARK 43,DESTINATION CODE=EN
main90564-46025i201307-201607
T=2.92,MARK 43,DESTINATION CODE=K2
main90564-46025i201307-201607
T=2.92,MARK 43,DESTINATION CODE=K8
main90564-46025i201204-201607
T=2.92,MARK 43
main90564-46025i201307-201607
T=2.92,MARK 43,DESTINATION CODE=EK
main90564-46025i201307-201607
T=2.92,MARK 43,DESTINATION CODE=ER
main90564-46025i201307-201607
T=2.92,MARK 43,DESTINATION CODE=KC
main90564-46025i201405-201607
T=2.92,MARK 43,DESTINATION CODE=KY
main90564-46026i201307-201607
T=2.96,MARK 44,DESTINATION CODE=K2
main90564-46026i201307-201607
T=2.96,MARK 44,DESTINATION CODE=KE
main90564-46026i201307-201607
T=2.96,MARK 44,DESTINATION CODE=KC
main90564-46026i201307-201607
T=2.96,MARK 44,DESTINATION CODE=KA
main90564-46026i201204-201607
T=2.96,MARK 44
main90564-46026i201405-201607
T=2.96,MARK 44,DESTINATION CODE=KY
main90564-46026i201307-201607
T=2.96,MARK 44,DESTINATION CODE=ER
main90564-46026i201307-201607
T=2.96,MARK 44,DESTINATION CODE=EK
main90564-46026i201307-201607
T=2.96,MARK 44,DESTINATION CODE=K8
main90564-46026i201307-201607
T=2.96,MARK 44,DESTINATION CODE=EN
main90564-46027i201204-201607
T=2.98,MARK 45
main90564-46027i201307-201607
T=2.98,MARK 45,DESTINATION CODE=K8
main90564-46027i201307-201607
T=2.98,MARK 45,DESTINATION CODE=K2
main90564-46027i201307-201607
T=2.98,MARK 45,DESTINATION CODE=EN
main90564-46027i201307-201607
T=2.98,MARK 45,DESTINATION CODE=KE
main90564-46027i201307-201607
T=2.98,MARK 45,DESTINATION CODE=KC
main90564-46027i201307-201607
T=2.98,MARK 45,DESTINATION CODE=KA
main90564-46027i201307-201607
T=2.98,MARK 45,DESTINATION CODE=ER
main90564-46027i201307-201607
T=2.98,MARK 45,DESTINATION CODE=EK
main90564-46027i201405-201607
T=2.98,MARK 45,DESTINATION CODE=KY
main90564-46028i201307-201607
T=3.02,MARK 46,DESTINATION CODE=KE
main90564-46028i201307-201607
T=3.02,MARK 46,DESTINATION CODE=KC
main90564-46028i201307-201607
T=3.02,MARK 46,DESTINATION CODE=KA
main90564-46028i201307-201607
T=3.02,MARK 46,DESTINATION CODE=ER
main90564-46028i201307-201607
T=3.02,MARK 46,DESTINATION CODE=EK
main90564-46028i201204-201607
T=3.02,MARK 46
main90564-46028i201405-201607
T=3.02,MARK 46,DESTINATION CODE=KY
main90564-46028i201307-201607
T=3.02,MARK 46,DESTINATION CODE=K8
main90564-46028i201307-201607
T=3.02,MARK 46,DESTINATION CODE=K2
main90564-46028i201307-201607
T=3.02,MARK 46,DESTINATION CODE=EN
main90564-46029i201204-201607
T=3.04,MARK 47
main90564-46029i201307-201607
T=3.04,MARK 47,DESTINATION CODE=EK
main90564-46029i201307-201607
T=3.04,MARK 47,DESTINATION CODE=ER
main90564-46029i201307-201607
T=3.04,MARK 47,DESTINATION CODE=KA
main90564-46029i201307-201607
T=3.04,MARK 47,DESTINATION CODE=KC
main90564-46029i201307-201607
T=3.04,MARK 47,DESTINATION CODE=KE
main90564-46029i201307-201607
T=3.04,MARK 47,DESTINATION CODE=EN
main90564-46029i201307-201607
T=3.04,MARK 47,DESTINATION CODE=K2
main90564-46029i201307-201607
T=3.04,MARK 47,DESTINATION CODE=K8
main90564-46029i201405-201607
T=3.04,MARK 47,DESTINATION CODE=KY
main90564-46030i201307-201607
T=3.08,MARK 48,DESTINATION CODE=ER
main90564-46030i201204-201607
T=3.08,MARK 48
main90564-46030i201307-201607
T=3.08,MARK 48,DESTINATION CODE=EK
main90564-46030i201307-201607
T=3.08,MARK 48,DESTINATION CODE=KA
main90564-46030i201307-201607
T=3.08,MARK 48,DESTINATION CODE=KC
main90564-46030i201307-201607
T=3.08,MARK 48,DESTINATION CODE=KE
main90564-46030i201307-201607
T=3.08,MARK 48,DESTINATION CODE=EN
main90564-46030i201307-201607
T=3.08,MARK 48,DESTINATION CODE=K2
main90564-46030i201307-201607
T=3.08,MARK 48,DESTINATION CODE=K8
main90564-46030i201405-201607
T=3.08,MARK 48,DESTINATION CODE=KY
main90564-46031i201307-201607
T=3.10,MARK 49,DESTINATION CODE=EK
main90564-46031i201204-201607
T=3.10,MARK 49
main90564-46031i201405-201607
T=3.10,MARK 49,DESTINATION CODE=KY
main90564-46031i201307-201607
T=3.10,MARK 49,DESTINATION CODE=K8
main90564-46031i201307-201607
T=3.10,MARK 49,DESTINATION CODE=K2
main90564-46031i201307-201607
T=3.10,MARK 49,DESTINATION CODE=EN
main90564-46031i201307-201607
T=3.10,MARK 49,DESTINATION CODE=KE
main90564-46031i201307-201607
T=3.10,MARK 49,DESTINATION CODE=KC
main90564-46031i201307-201607
T=3.10,MARK 49,DESTINATION CODE=KA
main90564-46031i201307-201607
T=3.10,MARK 49,DESTINATION CODE=ER
main90564-46032i201307-201607
T=3.14,MARK 50,DESTINATION CODE=ER
main90564-46032i201204-201607
T=3.14,MARK 50
main90564-46032i201307-201607
T=3.14,MARK 50,DESTINATION CODE=EK
main90564-46032i201307-201607
T=3.14,MARK 50,DESTINATION CODE=KA
main90564-46032i201307-201607
T=3.14,MARK 50,DESTINATION CODE=KC
main90564-46032i201307-201607
T=3.14,MARK 50,DESTINATION CODE=KE
main90564-46032i201307-201607
T=3.14,MARK 50,DESTINATION CODE=EN
main90564-46032i201307-201607
T=3.14,MARK 50,DESTINATION CODE=K2
main90564-46032i201307-201607
T=3.14,MARK 50,DESTINATION CODE=K8
main90564-46032i201405-201607
T=3.14,MARK 50,DESTINATION CODE=KY
main90564-46033i201307-201607
T=3.16,MARK 51,DESTINATION CODE=KC
main90564-46033i201405-201607
T=3.16,MARK 51,DESTINATION CODE=KY
main90564-46033i201307-201607
T=3.16,MARK 51,DESTINATION CODE=K8
main90564-46033i201307-201607
T=3.16,MARK 51,DESTINATION CODE=K2
main90564-46033i201307-201607
T=3.16,MARK 51,DESTINATION CODE=EN
main90564-46033i201307-201607
T=3.16,MARK 51,DESTINATION CODE=KE
main90564-46033i201307-201607
T=3.16,MARK 51,DESTINATION CODE=KA
main90564-46033i201307-201607
T=3.16,MARK 51,DESTINATION CODE=ER
main90564-46033i201307-201607
T=3.16,MARK 51,DESTINATION CODE=EK
main90564-46033i201204-201607
T=3.16,MARK 51
main90564-46034i201307-201607
T=3.20,MARK 52,DESTINATION CODE=EN
main90564-46034i201204-201607
T=3.20,MARK 52
main90564-46034i201307-201607
T=3.20,MARK 52,DESTINATION CODE=K2
main90564-46034i201307-201607
T=3.20,MARK 52,DESTINATION CODE=KE
main90564-46034i201307-201607
T=3.20,MARK 52,DESTINATION CODE=KC
main90564-46034i201307-201607
T=3.20,MARK 52,DESTINATION CODE=ER
main90564-46034i201307-201607
T=3.20,MARK 52,DESTINATION CODE=KA
main90564-46034i201307-201607
T=3.20,MARK 52,DESTINATION CODE=K8
main90564-46034i201307-201607
T=3.20,MARK 52,DESTINATION CODE=EK
main90564-46034i201405-201607
T=3.20,MARK 52,DESTINATION CODE=KY
main90564-46035i201307-201607
T=3.22,MARK 53,DESTINATION CODE=KE
main90564-46035i201204-201607
T=3.22,MARK 53
main90564-46035i201307-201607
T=3.22,MARK 53,DESTINATION CODE=EK
main90564-46035i201307-201607
T=3.22,MARK 53,DESTINATION CODE=ER
main90564-46035i201307-201607
T=3.22,MARK 53,DESTINATION CODE=KA
main90564-46035i201307-201607
T=3.22,MARK 53,DESTINATION CODE=KC
main90564-46035i201307-201607
T=3.22,MARK 53,DESTINATION CODE=EN
main90564-46035i201307-201607
T=3.22,MARK 53,DESTINATION CODE=K2
main90564-46035i201307-201607
T=3.22,MARK 53,DESTINATION CODE=K8
main90564-46035i201405-201607
T=3.22,MARK 53,DESTINATION CODE=KY
main90564-46036i201204-201607
T=3.26,MARK 54
main90564-46036i201307-201607
T=3.26,MARK 54,DESTINATION CODE=K8
main90564-46036i201307-201607
T=3.26,MARK 54,DESTINATION CODE=K2
main90564-46036i201307-201607
T=3.26,MARK 54,DESTINATION CODE=EN
main90564-46036i201307-201607
T=3.26,MARK 54,DESTINATION CODE=KE
main90564-46036i201307-201607
T=3.26,MARK 54,DESTINATION CODE=KC
main90564-46036i201307-201607
T=3.26,MARK 54,DESTINATION CODE=KA
main90564-46036i201307-201607
T=3.26,MARK 54,DESTINATION CODE=ER
main90564-46036i201307-201607
T=3.26,MARK 54,DESTINATION CODE=EK
main90564-46036i201405-201607
T=3.26,MARK 54,DESTINATION CODE=KY
main90564-46037i201307-201607
T=3.28,MARK 55,DESTINATION CODE=K2
main90564-46037i201204-201607
T=3.28,MARK 55
main90564-46037i201307-201607
T=3.28,MARK 55,DESTINATION CODE=EK
main90564-46037i201307-201607
T=3.28,MARK 55,DESTINATION CODE=ER
main90564-46037i201307-201607
T=3.28,MARK 55,DESTINATION CODE=KA
main90564-46037i201307-201607
T=3.28,MARK 55,DESTINATION CODE=KC
main90564-46037i201307-201607
T=3.28,MARK 55,DESTINATION CODE=KE
main90564-46037i201307-201607
T=3.28,MARK 55,DESTINATION CODE=EN
main90564-46037i201307-201607
T=3.28,MARK 55,DESTINATION CODE=K8
main90564-46037i201405-201607
T=3.28,MARK 55,DESTINATION CODE=KY
main90564-46038i201307-201607
T=3.32,MARK 56,DESTINATION CODE=KC
main90564-46038i201307-201607
T=3.32,MARK 56,DESTINATION CODE=KA
main90564-46038i201307-201607
T=3.32,MARK 56,DESTINATION CODE=ER
main90564-46038i201307-201607
T=3.32,MARK 56,DESTINATION CODE=EK
main90564-46038i201204-201607
T=3.32,MARK 56
main90564-46038i201405-201607
T=3.32,MARK 56,DESTINATION CODE=KY
main90564-46038i201307-201607
T=3.32,MARK 56,DESTINATION CODE=K8
main90564-46038i201307-201607
T=3.32,MARK 56,DESTINATION CODE=K2
main90564-46038i201307-201607
T=3.32,MARK 56,DESTINATION CODE=EN
main90564-46038i201307-201607
T=3.32,MARK 56,DESTINATION CODE=KE
main90564-46039i201307-201607
T=3.34,MARK 57,DESTINATION CODE=KC
main90564-46039i201307-201607
T=3.34,MARK 57,DESTINATION CODE=KA
main90564-46039i201307-201607
T=3.34,MARK 57,DESTINATION CODE=ER
main90564-46039i201307-201607
T=3.34,MARK 57,DESTINATION CODE=EK
main90564-46039i201204-201607
T=3.34,MARK 57
main90564-46039i201307-201607
T=3.34,MARK 57,DESTINATION CODE=KE
main90564-46039i201307-201607
T=3.34,MARK 57,DESTINATION CODE=EN
main90564-46039i201307-201607
T=3.34,MARK 57,DESTINATION CODE=K2
main90564-46039i201307-201607
T=3.34,MARK 57,DESTINATION CODE=K8
main90564-46039i201405-201607
T=3.34,MARK 57,DESTINATION CODE=KY
main90564-46040i201307-201607
T=3.38,MARK 58,DESTINATION CODE=KC
main90564-46040i201204-201607
T=3.38,MARK 58
main90564-46040i201307-201607
T=3.38,MARK 58,DESTINATION CODE=EK
main90564-46040i201307-201607
T=3.38,MARK 58,DESTINATION CODE=ER
main90564-46040i201307-201607
T=3.38,MARK 58,DESTINATION CODE=KA
main90564-46040i201307-201607
T=3.38,MARK 58,DESTINATION CODE=KE
main90564-46040i201307-201607
T=3.38,MARK 58,DESTINATION CODE=EN
main90564-46040i201307-201607
T=3.38,MARK 58,DESTINATION CODE=K2
main90564-46040i201307-201607
T=3.38,MARK 58,DESTINATION CODE=K8
main90564-46040i201405-201607
T=3.38,MARK 58,DESTINATION CODE=KY
main90564-46041i201204-201607
T=3.40,MARK 59
main90564-46041i201405-201607
T=3.40,MARK 59,DESTINATION CODE=KY
main90564-46041i201307-201607
T=3.40,MARK 59,DESTINATION CODE=K8
main90564-46041i201307-201607
T=3.40,MARK 59,DESTINATION CODE=K2
main90564-46041i201307-201607
T=3.40,MARK 59,DESTINATION CODE=EN
main90564-46041i201307-201607
T=3.40,MARK 59,DESTINATION CODE=KE
main90564-46041i201307-201607
T=3.40,MARK 59,DESTINATION CODE=KC
main90564-46041i201307-201607
T=3.40,MARK 59,DESTINATION CODE=KA
main90564-46041i201307-201607
T=3.40,MARK 59,DESTINATION CODE=ER
main90564-46041i201307-201607
T=3.40,MARK 59,DESTINATION CODE=EK
main90564-46042i201307-201607
T=3.44,MARK 60,DESTINATION CODE=ER
main90564-46042i201204-201607
T=3.44,MARK 60
main90564-46042i201405-201607
T=3.44,MARK 60,DESTINATION CODE=KY
main90564-46042i201307-201607
T=3.44,MARK 60,DESTINATION CODE=K8
main90564-46042i201307-201607
T=3.44,MARK 60,DESTINATION CODE=K2
main90564-46042i201307-201607
T=3.44,MARK 60,DESTINATION CODE=EN
main90564-46042i201307-201607
T=3.44,MARK 60,DESTINATION CODE=KE
main90564-46042i201307-201607
T=3.44,MARK 60,DESTINATION CODE=KC
main90564-46042i201307-201607
T=3.44,MARK 60,DESTINATION CODE=KA
main90564-46042i201307-201607
T=3.44,MARK 60,DESTINATION CODE=EK
main90564-46043i201307-201607
T=3.46,MARK 61,DESTINATION CODE=KE
main90564-46043i201307-201607
T=3.46,MARK 61,DESTINATION CODE=KA
main90564-46043i201307-201607
T=3.46,MARK 61,DESTINATION CODE=KC
main90564-46043i201307-201607
T=3.46,MARK 61,DESTINATION CODE=EN
main90564-46043i201307-201607
T=3.46,MARK 61,DESTINATION CODE=K2
main90564-46043i201307-201607
T=3.46,MARK 61,DESTINATION CODE=K8
main90564-46043i201405-201607
T=3.46,MARK 61,DESTINATION CODE=KY
main90564-46043i201204-201607
T=3.46,MARK 61
main90564-46043i201307-201607
T=3.46,MARK 61,DESTINATION CODE=EK
main90564-46043i201307-201607
T=3.46,MARK 61,DESTINATION CODE=ER

29 parts on this diagram · 3 diagrams in section

REAR AXLE HOUSING & DIFFERENTIAL — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
