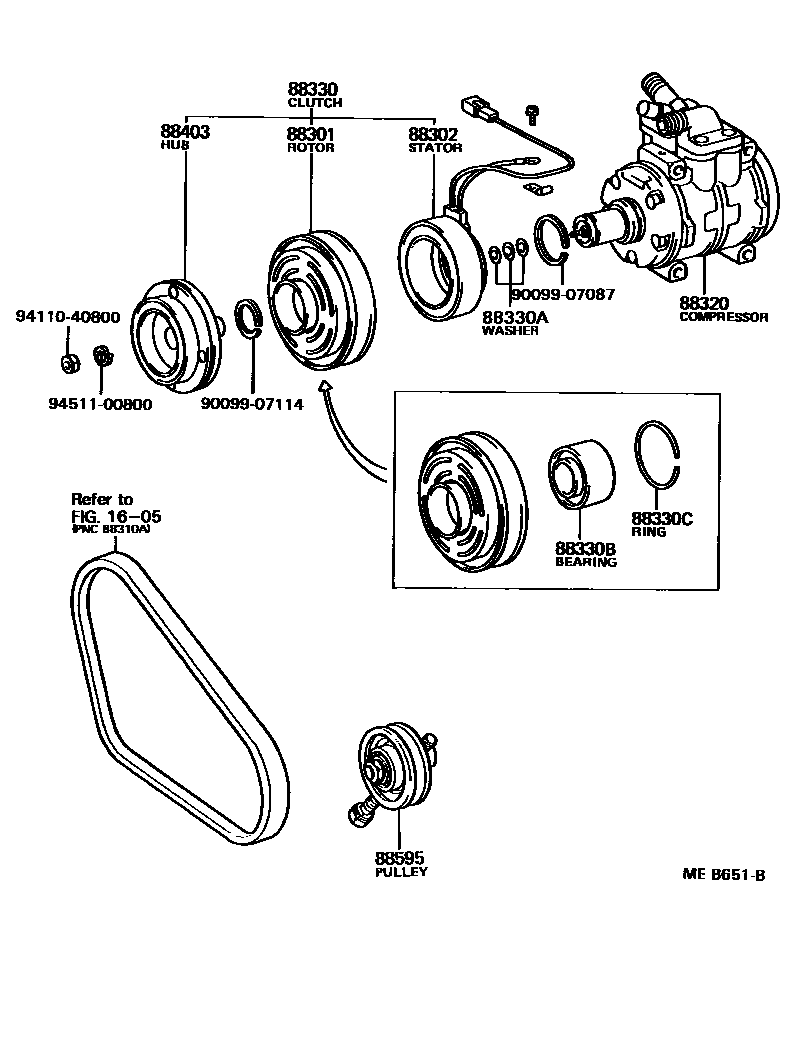

Toyota CORONA FR — HEATING & AIR CONDITIONING - COMPRESSOR
1605V-BELT
88301ROTOR SUB-ASSY, MAGNET CLUTCH
88320COMPRESSOR ASSY, COOLER
88330CLUTCH ASSY, MAGNET
88330AWASHER (FOR MAGNET CLUTCH)
88330BBEARING, MAGNET CLUTCH
88330CRING, SNAP (FOR MAGNET CLUTCH)
9009907087
9009907114
9411040800
9451100800
14 parts on this diagram · 4 diagrams in section
HEATING & AIR CONDITIONING - COMPRESSOR for Toyota CORONA FR
This section contains 54 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota CORONA FR. Key components include: V-BELT, ROTOR SUB-ASSY, MAGNET CLUTCH, STATOR SUB-ASSY, MAGNET CLUTCH, CYLINDER SUB-ASSY, COOLER COMPRESSOR, CRANKSHAFT, COOLER COMPRESSOR.
