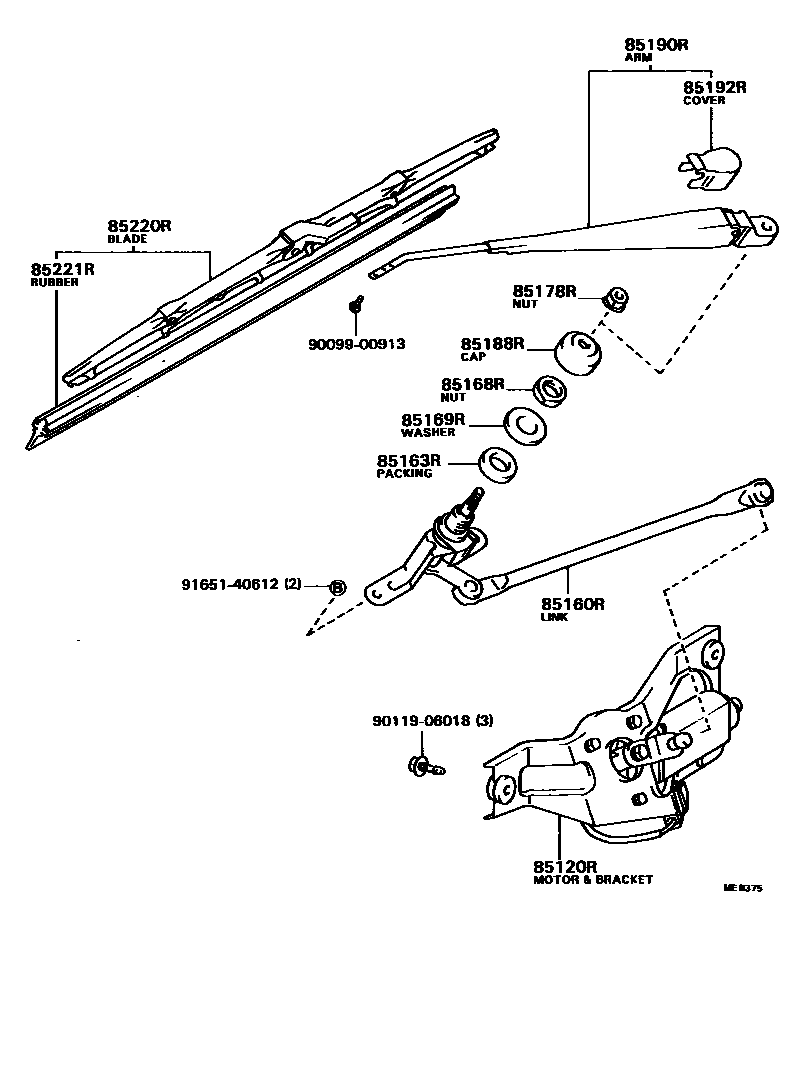

REAR WIPER

85120RMOTOR AND BRACKET ASSY, REAR WIPER

main85120-91C01iRT142,ST141..WG..ARL198201-198612

85160RLINK ASSY, REAR WIPER

main85160-91C01iCT140,RT140,ST141,TT14#..WG198201-198308

sub85160-91C02

main85160-91C02iCT140,RT140,ST141,TT14#..WG198308-198612

LOCK BACK TYPE

85163RPACKING, REAR WIPER PIVOT, NO.1

main85174-12320iCT140,RT140,ST141,TT14#..WG198201-198612

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90099-05141iCT140,RT140,ST141,TT14#..WG198201-198612

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main90099-01458iCT140,RT140,ST141,TT14#..WG198201-198612

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iRT142,ST141..WG..ARL198201-198612

85188RCAP, REAR WIPER PIVOT, NO.1

main85178-12320iRT142,ST141..WG..ARL198201-198612

85190RARM ASSY, REAR WIPER

main85190-91C01iCT140,RT140,ST141,TT14#..WG198201-198310

main85190-91C03iST141,TT141..WG198310-198612

85192RCOVER, REAR WIPER ARM

main85192-14020iRT142,ST141..WG..ARL198201-198612

sub85192-13060

85220RBLADE ASSY, REAR WIPER

main85220-14400iST141,TT141..WG198310-198612

main85220-91C01iCT140,RT140,ST141,TT14#..WG198201-198310

sub85220-14400

85221RBLADE, REAR WIPER

main85221-91C01iCT140,RT140,ST141,TT14#..WG198201-198612

sub85214-12H90

9009900913

main90099-00913

9011906018

main90119-06018

9165140612

main91651-40612

14 parts on this diagram · 1 diagram in section
