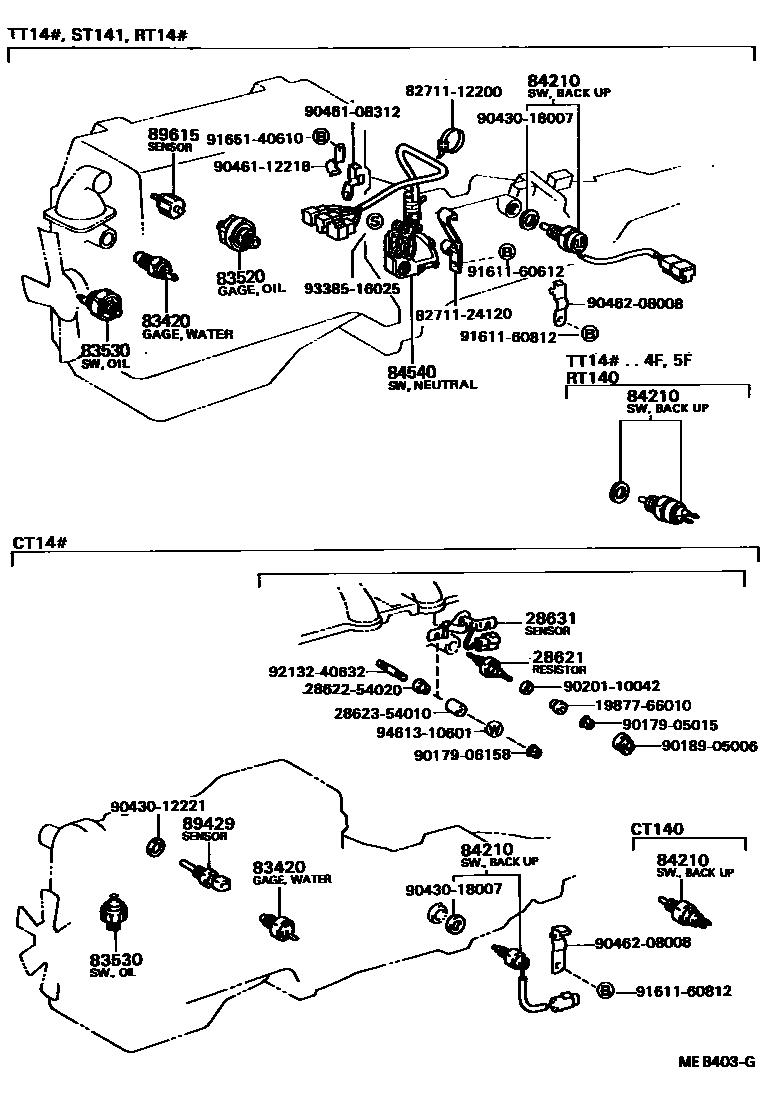

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1 0008 1

28621RESISTOR, GLOW PLUG

main28621-64011i2C..CT141198601-198612

28631SENSOR, GLOW PLUG CURRENT

main28631-64010i2C..CT141198601-198612

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16010iCT140,RT140,ST141,TT14#198201-198310

NIPPONDENSO

sub83420-20020

main83420-16040iYT140199312-199907

NIPPONDENSO

main83420-20020iYT140198310-199907

main83420-20020iCT140,RT140,ST141,TT14#198201-198310

YAZAKI

main83420-20030iYT140199312-199907

YAZAKI

sub83420-16040

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-14022iRT142198408-198508

NIPPONDENSO

sub83520-14023

main83520-14022iRT142..SED198508-198612

sub83520-14023

main83520-20020iST141..CSX198304-198612

main83520-55011iRT142198408-198508

YAZAKI

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-10020iST141,TT14#..CS,DLX,GL,S,STD198201-198502

sub83530-14030

main83530-12040iST141..CS,S198310-198409

sub83530-14040

main83530-14020iST141..CS,DLX,S198409-199907

sub83530-30080

main83530-14030iTT141198502-199312

sub83530-28030

main83530-14060iYT140199601-199907

sub83530-30090

main83530-14070iYT140199312-199601

sub83530-28010

main83530-30060iCT141198601-199907

sub83530-60030

main83530-36011iCT140,RT140198201-198312

sub83530-30060

84210SWITCH ASSY, BACK-UP LAMP

main84210-10051iTT14#..4F,5F198201-198508

main84210-14010iCT140,RT140198201-198312

main84210-60010iCT141,ST141,YT140..MTM..GEN198201-199907

84540SWITCH ASSY, NEUTRAL START

main84540-14080iTT141..3FC198201-199907

main84540-14090iRT142..4FC198408-198612

89429SENSOR, OIL TEMPERATURE

main89422-30020iCT140198201-198612

sub89422-12010

89615SENSOR, KNOCK CONTROL

main89615-35020iRT142198508-198612

1987766010

main19877-66010

2862254020INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-54020

2862354010INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-54010

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271124120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24120

9017905015

main90179-05015

9017906158

main90179-06158

9018905006

main90189-05006

9020110042

main90201-10042

9043012221

main90430-12221

9043018007

main90430-18007

9046108312

main90461-08312

9046112218

main90461-12218

9046208008

main90462-08008

9161160612

main91611-60612

9161160812

main91611-60812

9165140610

main91651-40610

9213240632

main92132-40632

9338516025

main93385-16025

9461310601

main94613-10601

29 parts on this diagram · 7 diagrams in section
