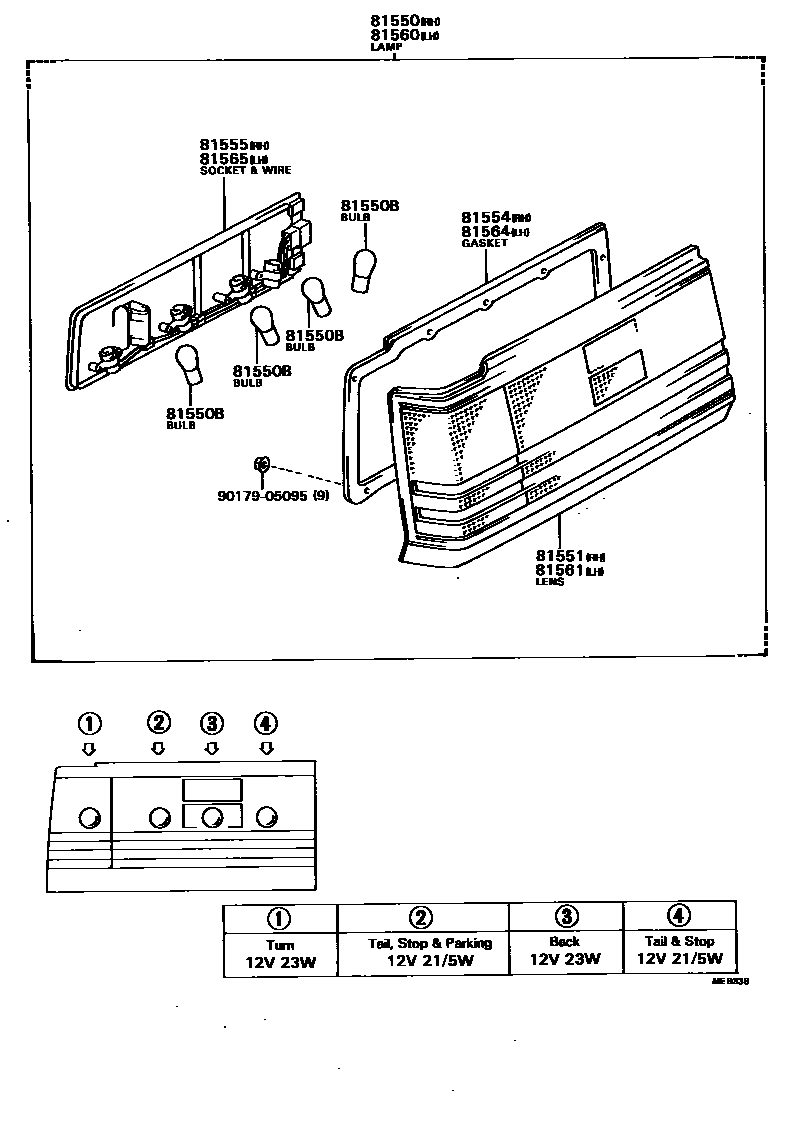

Toyota CORONA FR — REAR COMBINATION LAMP
81550LAMP ASSY, REAR COMBINATION, RH
81550BBULB(FOR REAR COMBINATION LAMP)
81551LENS, REAR COMBINATION LAMP, RH
81560LAMP ASSY, REAR COMBINATION, LH
81561LENS, REAR COMBINATION LAMP, LH
9017905095
10 parts on this diagram · 3 diagrams in section
REAR COMBINATION LAMP for Toyota CORONA FR
This section contains 14 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota CORONA FR. Key components include: LAMP ASSY, REAR COMBINATION, RH, BULB(FOR REAR COMBINATION LAMP), LENS, REAR COMBINATION LAMP, RH, GASKET, REAR COMBINATION LAMP BODY, RH, SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH.
