Toyota CORONA FR — FRONT TURN SIGNAL LAMP

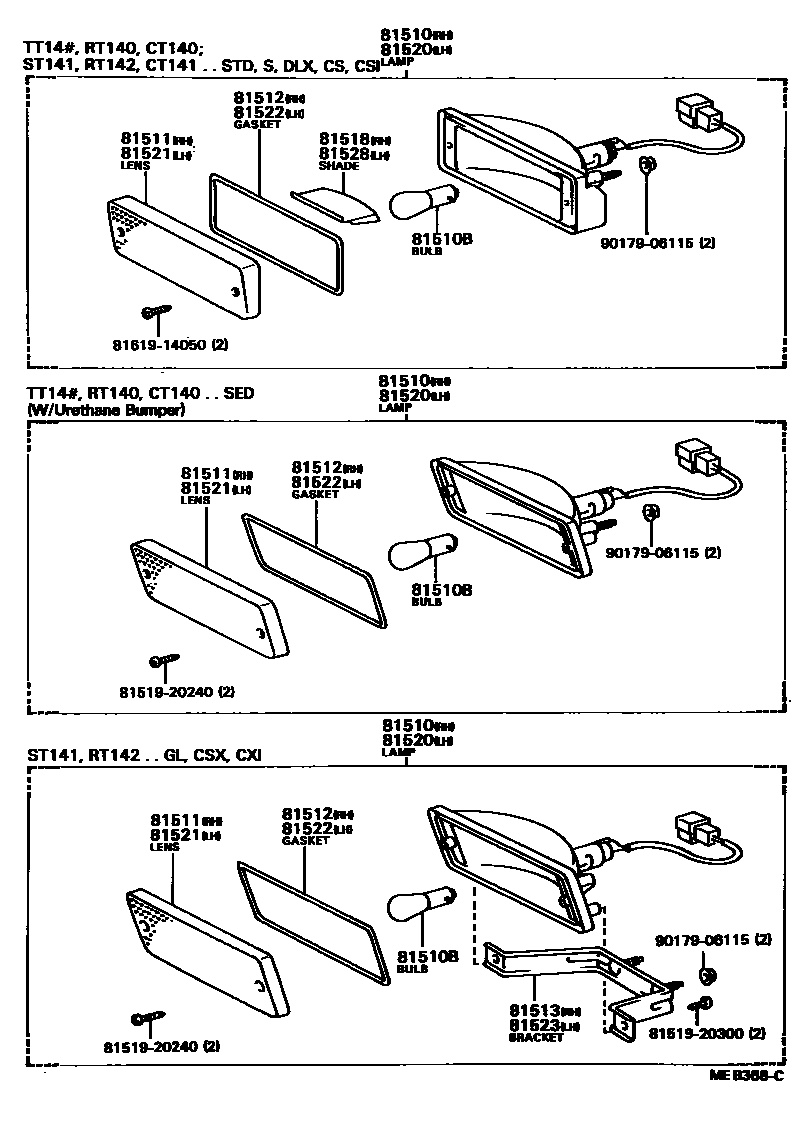

Parts diagram
81510LAMP ASSY, FRONT TURN SIGNAL, RH
81510-80047
99132-12050
99132-11210
99132-11230
81510-20450
81510-20470
81510-29705
81510-29725
81510-29895
81510BBULB (FOR FRONT TURN SIGNAL LAMP)
81511LENS, FRONT TURN SIGNAL LAMP, RH
81511-17031
81511-22220
81511-22221
81511-20240
81511-20450
81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-14140
81512-20240
81513BRACKET, FRONT TURN SIGNAL LAMP, RH
81517-20300
81518SHADE, FRONT TURN SIGNAL LAMP, RH
81517-22220
81520LAMP ASSY, FRONT TURN SIGNAL, LH
81520-80047
81520-20420
81520-20460
81520-29695
81520-29715
81520-29885
81521LENS, FRONT TURN SIGNAL LAMP, LH
81521-17031
81521-22220
81521-22221
81521-20230
81521-20420
81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-14140
81512-20240
81523BRACKET, FRONT TURN SIGNAL LAMP, LH
81527-20300
81528SHADE, FRONT TURN SIGNAL LAMP, LH
81517-22220
8151920240BRACKET, FRONT TURN SIGNAL LAMP, RH
81519-20240
8151920300BRACKET, FRONT TURN SIGNAL LAMP, RH
81519-20300
8161914050
81619-14050
9017906115
90179-06115

15 parts on this diagram · 2 diagrams in section

FRONT TURN SIGNAL LAMP for Toyota CORONA FR

This section contains 22 genuine Toyota parts for the FRONT TURN SIGNAL LAMP system of the Toyota CORONA FR. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, LAMP ASSY, FRONT TURN SIGNAL, RH, BULB (FOR FRONT TURN SIGNAL LAMP), LENS, FRONT TURN SIGNAL LAMP, RH, GASKET, FRONT TURN SIGNAL LAMP LENS, RH.
