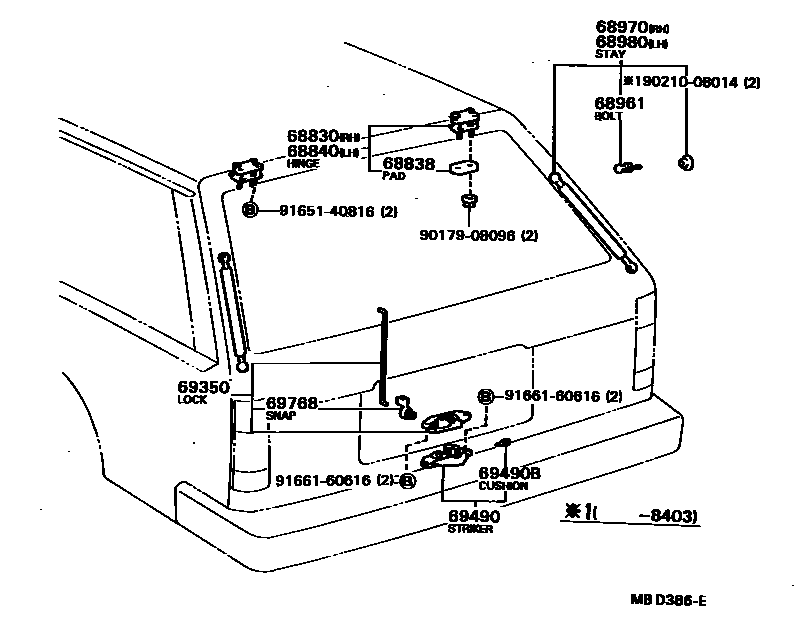

BACK DOOR LOCK & HANDLE

68830HINGE ASSY, BACK DOOR, RH

main68810-91C01iCT140,RT14#,ST141,TT14#..WG198201-199907

sub68810-91C02

68838PAD, BACK DOOR HINGE, NO.1

main68838-15010iCT140,RT14#,ST141,TT14#..WG198201-199907

sub68838-15011

68840HINGE ASSY, BACK DOOR, LH

main68810-91C01iCT140,RT14#,ST141,TT14#..WG198201-199907

sub68810-91C02

68961BOLT, BACK DOOR STAY

main68961-12010iST141,TT141..WG198402-198509

main68961-14010iCT140,RT140,ST141,TT14#..WG198201-198402

sub68961-12010

main68961-23010iRT142,ST141..WG..(CS,CSI)198508-199907

main68961-91C01iST141,TT141..WG198403-198407

sub68961-12010

68970STAY ASSY, BACK DOOR, RH

main68950-19215iCT140,RT140,ST141,TT14#..WG198201-198310

TOKIKO

sub68950-19235

main68950-19235iCT140,RT140,ST141,TT14#..WG198201-198310

KAYABA

main68950-19505iRT142,ST141..WG..(CS,CSI)198508-198612

main68950-29215iST141,TT141..WG198310-198508

main68950-29375iST141..WG198508-199907

68980STAY ASSY, BACK DOOR

main68960-19105iCT140,RT140,ST141,TT14#..WG198201-198310

TOKIKO

sub68960-19125

main68960-19125iCT140,RT140,ST141,TT14#..WG198201-198310

KAYABA

main68960-19235iRT142,ST141..WG..(CS,CSI)198508-198612

main68960-29145iST141,TT141..WG198310-198508

main68960-29285iST141..WG198508-199907

69350LOCK ASSY, BACK DOOR

main69350-91260iCT140,RT14#,ST141,TT14#..WG198201-199907

69490STRIKER ASSY, BACK DOOR LOCK

main69430-91C01iCT140,RT14#,ST141,TT14#..WG198201-199907

69490BCUSHION(FOR BACK DOOR LOCK STRIKER)

main90541-06002iCT140,RT14#,ST141,TT14#..WG198201-199907

sub90541-06019

69768SNAP, BACK DOOR LOCK CONTROL LINK

main69377-30020iCT140,RT140,ST141,TT14#..WG198201-198508

main69759-24050iRT142,ST141..WG198508-199907

9017908096

main90179-08096

9021008014

main90210-08014

9165140816

main91651-40816

9166160616

main91661-60616

14 parts on this diagram · 1 diagram in section
