FRONT DOOR WINDOW REGULATOR & HINGE

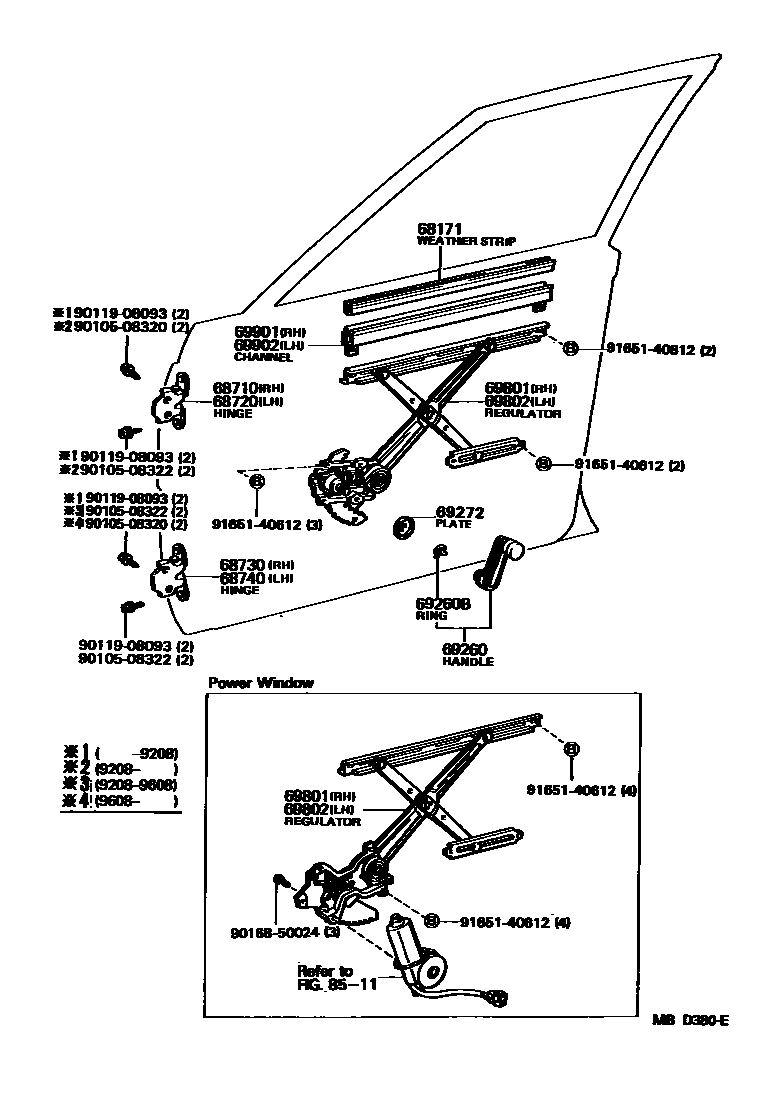

Parts diagram
68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL
main68171-22020×2i198612-199907
68710HINGE ASSY, FRONT DOOR, UPPER RH
main68710-20060i198201-198612
main68740-20130i199207-199907
68720HINGE ASSY, FRONT DOOR, UPPER LH
main68720-20050i198201-198612
main68730-20130i199207-199907
68730HINGE ASSY, FRONT DOOR, LOWER RH
main68730-20130i199207-199907
main68730-24010i198201-198612
68740HINGE ASSY, FRONT DOOR, LOWER LH
main68740-20130i199207-199907
main68740-24010i198201-198612
69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
main69260-14020-01i199306-199907
BLACK,BLACK
main69260-14020-04×2i198201-199907
BLUE,BLUE
main69260-14020-16×2i198508-199907
SADDLE BROWN,BROWN
69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
main90520-01002×2i198612-199907
69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
main69285-22010-08×2i198201-198612
NATURAL WHITE,NATURAL WHITE
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
main69801-14070i198212-198412
W/*PW
main69810-14120i198201-198612
main69810-20160i198612-198812
main69810-20210i198812-199207
main69810-20211i199207-199907
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
main69802-14070i198212-198412
W/*PW
main69802-20170i198804-199907
*ST
main69820-14110i198201-198612
main69820-20160i198612-198812
main69820-20220i198812-199207
main69820-20221i199207-199907
main69820-20230i199306-199907
W/*PW
69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
main69901-12080i198207-198612
main69901-14070i198201-198207
main69901-87002i198612-199907
69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
main69901-12080i198207-198612
main69901-14070i198201-198207
main69901-87002i198612-199907
8511DOOR MOTOR & DOOR SOLENOID
→ Go to FIG 85-11
9010508320
main90105-08320
9010508322
main90105-08322
9011908093
main90119-08093
9016850024
main90168-50024
9165140612
main91651-40612

18 parts on this diagram · 1 diagram in section
