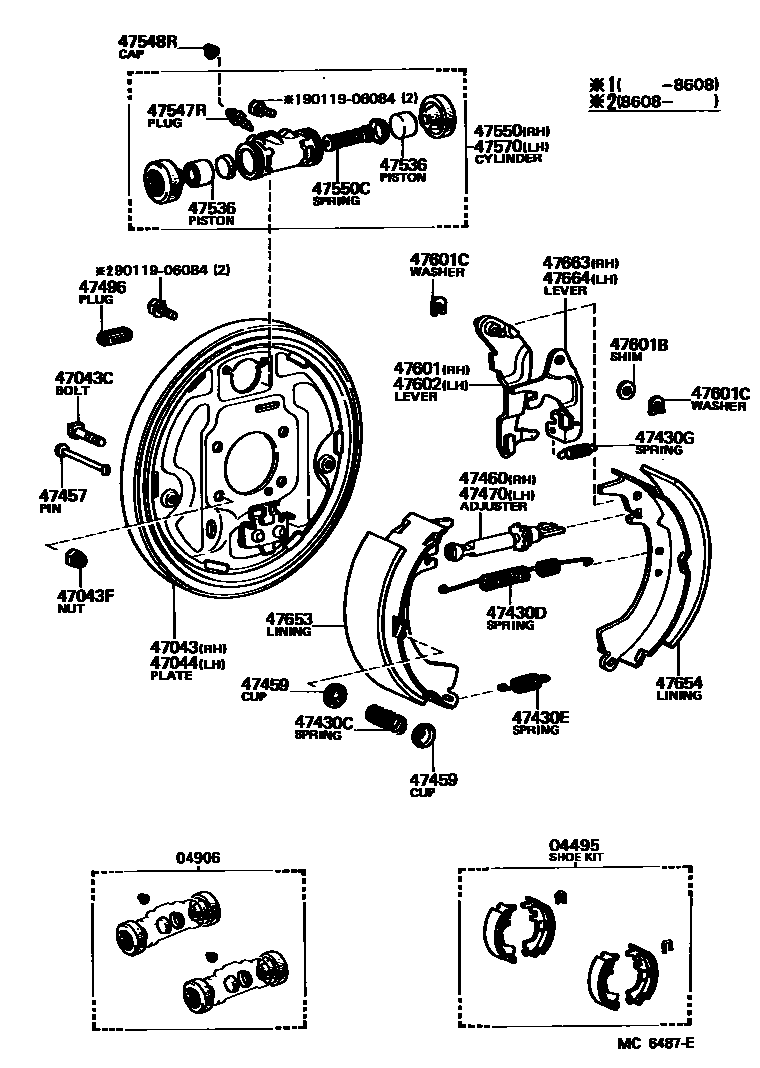

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04495SHOE KIT, REAR BRAKE

main04495-14010iST141..GEN198508-198612

main04495-20050iRT142..WG198508-198612

main04495-20060iCT141,YT140198612-198809

FR DRUM BRAKE

main04495-20061iCT141,YT140198809-199310

FR DRUM BRAKE

main04495-20070iCT141,YT140198601-198809

FR TAXI DISC BRAKE

main04495-20071iCT141,YT140198809-199306

FR DISC BRAKE

main04495-20160iCT141,YT140199306-199907

FR DISC BRAKE

04906CUP KIT, REAR WHEEL CYLINDER

main04906-12040iCT141,YT140198601-199907

main04906-14020iRT142..WG198508-198612

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-20050iRT142..WG198508-198612

main47043-20070iCT141,YT140198601-199907

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-22011×8iCT140,RT14#,ST141,TT14#,YT140198201-199907

*10-1.25PX37-15

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main94181-11000×8iCT14#,RT14#,ST141,TT14#,YT140198201-199907

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47043-20070iCT141,YT140198601-199907

main47044-20050iCT140,RT140,TT14#..DLX,GL,STD198201-198508

FR DISC BRAKE

main47044-20070iCT140..RHD; CT140..TAX; TT140..3H,4H198201-198312

FR DRUM BRAKE

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-18017×4iCT140,RT14#,ST141,TT14#..WG198201-198612

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23375×2iRT142..WG198508-198612

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23346×2iRT142..WG198508-198612

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12011×2iRT142..WG198508-198612

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20030×4iRT142..WG198508-198612

main47447-30010×4iCT140..RHD; CT140..TAX; TT140..3H,4H198201-198312

FR DRUM BRAKE

47459CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020×8iRT142..WG198508-198612

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-14021iRT142..WG198508-198612

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47062-14021iRT142..WG198508-198612

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011×2iRT142..WG198508-198612

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-22020×4iST141..CS,S;RT142..SED..CSI198304-198612

main47051-22040×4iST141..GEN198508-198612

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010×2iRT142..WG198508-198612

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iRT142..WG198508-198612

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-12060iCT141,YT140198608-199907

main47550-19135iCT140,RT140,TT14#198201-198508

main47550-19145iST141..CS,S;RT142..SED..CSI198304-198612

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-12020×2iST141..GEN198508-198612

main47509-20010×2iRT142..WG198508-198612

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-12060iCT141,YT140198608-199907

main47550-19135iCT141198601-198608

main47550-19145iST141..CS,S;RT142..SED..CSI198304-198612

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-14010iRT142..WG198508-198612

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-08150×2iRT142..WG198508-198612

T=0.3,T=0.3

main90564-08151×2iRT142..WG198508-198612

T=0.6,T=0.6

main90564-08152×2iRT142..WG198508-198612

T=0.9,T=0.9

main90564-08172×2iRT142..WG198508-198612

T=0.2,T=0.2

main90564-08173×2iRT142..WG198508-198612

T=0.4,T=0.4

main90564-08174×2iST141..CS,DLX,S198304-198612

T=0.5,T=0.5

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013×4iRT142..WG198508-198612

T=1.2

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-14010iRT142..WG198508-198612

47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)

main47651-22020×2iST141..CS,S;RT142..SED..CSI198304-198612

main47655-14010×2iCT140,RT140,TT14#..DLX,GL,STD198201-198508

FR DISC BRAKE

main47655-20140×2iCT140..RHD; CT140..TAX; TT140..3H,4H198201-198312

FR DRUM BRAKE

47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)

main47651-22020×2iST141..CS,S;RT142..SED..CSI198304-198612

main47655-14010×2iCT140,RT140,TT14#..DLX,GL,STD198201-198508

FR DISC BRAKE

main47655-20140×2iCT140..RHD; CT140..TAX; TT140..3H,4H198201-198312

FR DRUM BRAKE

47663LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47643-20020iRT142..WG198508-198612

47664LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47644-20020iRT142..WG198508-198612

9011906084

main90119-06084

30 parts on this diagram · 1 diagram in section
