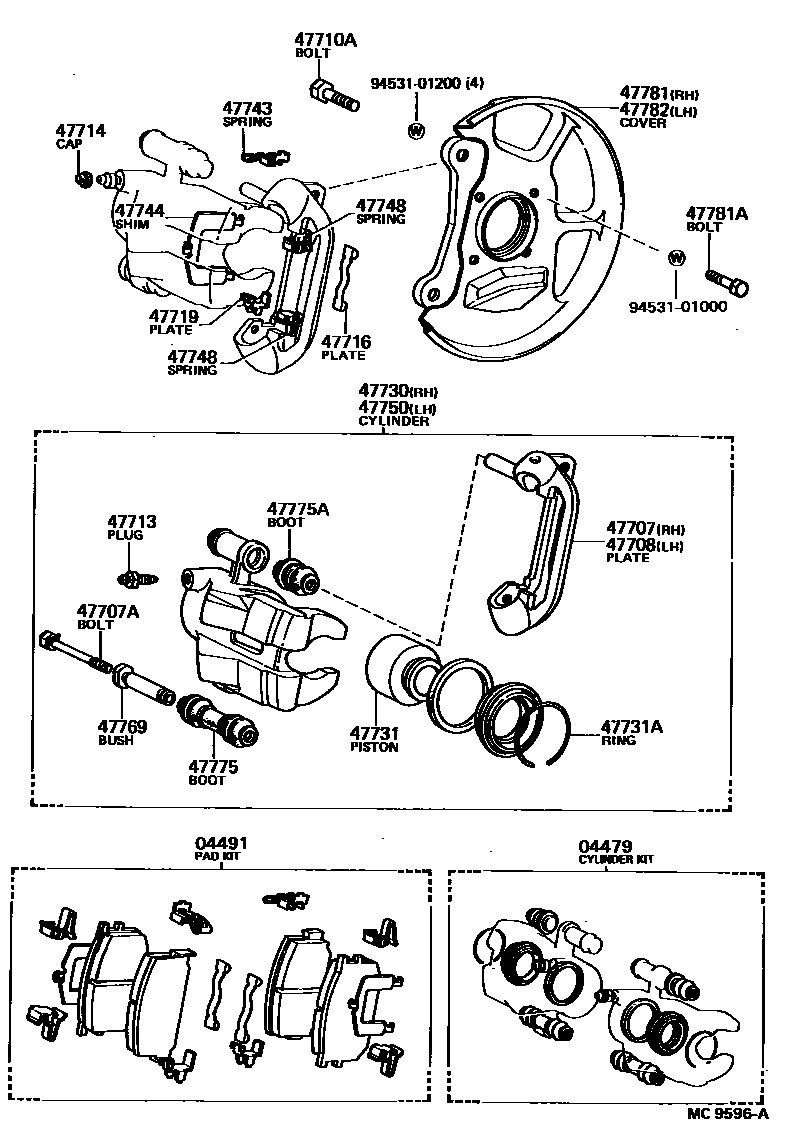

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0003 1 0005 1HONG KONG SPEC,VENTILATED TAX0006 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-14020iCT141,YT140198601-198712

main04479-14060iCT140,RT140,TT14#..DLX,GL,STD198201-198310

main04479-20060iST141..GEN198508-198612

PERU SPEC

main04479-20100iCT141..5F198612-198712

HONG KONG SPEC

04491PAD KIT, DISC BRAKE, FRONT

main04491-14150iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-198612

main04491-20160iCT140..RHD; CT140..TAX198301-198312

FR TAXI DISC BRAKE

main04491-20300iCT141..5F198612-198712

HONG KONG SPEC

47707PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH

main47707-14010iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-198612

47707ABOLT, HEXAGON(FOR FRONT DISC BRAKE TORQUE PLATE)

main90119-08199×2iCT140,RT140,TT14#..DLX,GL,STD198201-198309

SLIDE BUSH L=51.5

main90119-08431×2iCT140,RT140,ST141,TT14#..DLX,GL,STD198309-198612

SLIDE BUSH L=50

47708PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH

main47708-14010iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-198612

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12064×4iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-198612

main90101-12071×8iCT140..RHD; CT140..TAX198301-198312

FR TAXI DISC BRAKE

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iCT140..RHD; CT140..TAX198301-198312

FR TAXI DISC BRAKE

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-199907

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-14080×2iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-198612

main47716-20040×2iCT140..RHD; CT140..TAX198301-198312

FR TAXI DISC BRAKE

main47716-20070×4iCT141..5F198612-198712

HONG KONG SPEC

47719PLATE, FRONT DISC BRAKE PAD GUIDE

main47736-12010×2iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-198612

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12250iCT140,RT140,TT14#..DLX,GL,STD198309-198310

main47730-14050iCT140,RT140,TT14#..DLX,GL,STD198201-198309

main47730-20140iCT140..RHD; CT140..TAX198301-198312

FR TAXI DISC BRAKE

main47730-20150iTT141..LHD..(3FC,4F)..DLX..GEN198207-198508

PERU SPEC

main47730-20250iCT141,YT140198707-199310

VENTILATED TAXI DISC

47731PISTON, FRONT DISC BRAKE

main47731-14020×2iCT140..TAX198301-198310

FR TAXI DISC BRAKE

main47731-14070×2iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-198612

main47731-20120×2iCT141..5F198612-198712

HONG KONG SPEC

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-60004×2iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-198612

main90522-62001×2iCT140..RHD; CT140..TAX198301-198312

FR TAXI DISC BRAKE

47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47743-12010iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-198612

LH

main47748-12050iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-198612

RH

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-14050×2iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-198612

main47744-20030×2iCT140..RHD; CT140..TAX198301-198312

FR TAXI DISC BRAKE

main47744-20070×4iCT141,YT140198707-199310

VENTILATED TAXI DISC

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47743-14040×2iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-198612

LWR

main47748-14050×2iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-198612

UPR

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12250iCT140,RT140,TT14#..DLX,GL,STD198309-198310

main47750-14130iCT140,RT140,TT14#..DLX,GL,STD198201-198309

main47750-20130iCT140..RHD; CT140..TAX198301-198312

FR TAXI DISC BRAKE

main47750-20140iTT141..LHD..(3FC,4F)..DLX..GEN198207-198508

PERU SPEC

main47750-20240iCT141,YT140199310-199907

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-14010×2iCT140,RT140,TT14#..DLX,GL,STD198201-198309

L=51.5

main47769-20020×2iCT141,YT140198707-199310

VENTILATED TAXI DISC,LWR

main47769-28010×2iCT140,RT140,ST141,TT14#..DLX,GL,STD198309-198612

L=50

main47779-14020×2iCT141,YT140198707-199310

VENTILATED TAXI DISC,UPR

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-14010×2iCT140,TT14#..RHD198310-198508

main47775-20010×2iTT141..LHD..(3FC,4F)..DLX..GEN198207-198508

PERU SPEC

main47775-20040×2iCT141..5F198612-198712

HONG KONG SPEC

47775ABOOT, PIN

main47776-14010×2iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-198612

main47776-20010×2iCT141..5F198612-198712

HONG KONG SPEC

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-14080iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-198612

main47703-20020iCT140..RHD; CT140..TAX198301-198312

FR TAXI DISC BRAKE

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90101-08341×8iST141198304-198508

main90101-10062×8iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-198612

main90101-12066×8iCT140..RHD; CT140..TAX198301-198312

FR TAXI DISC BRAKE

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-14080iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-198612

main47704-20020iCT140..RHD; CT140..TAX198301-198312

FR TAXI DISC BRAKE

9453101000

main94531-01000

9453101200

main94531-01200

25 parts on this diagram · 4 diagrams in section
