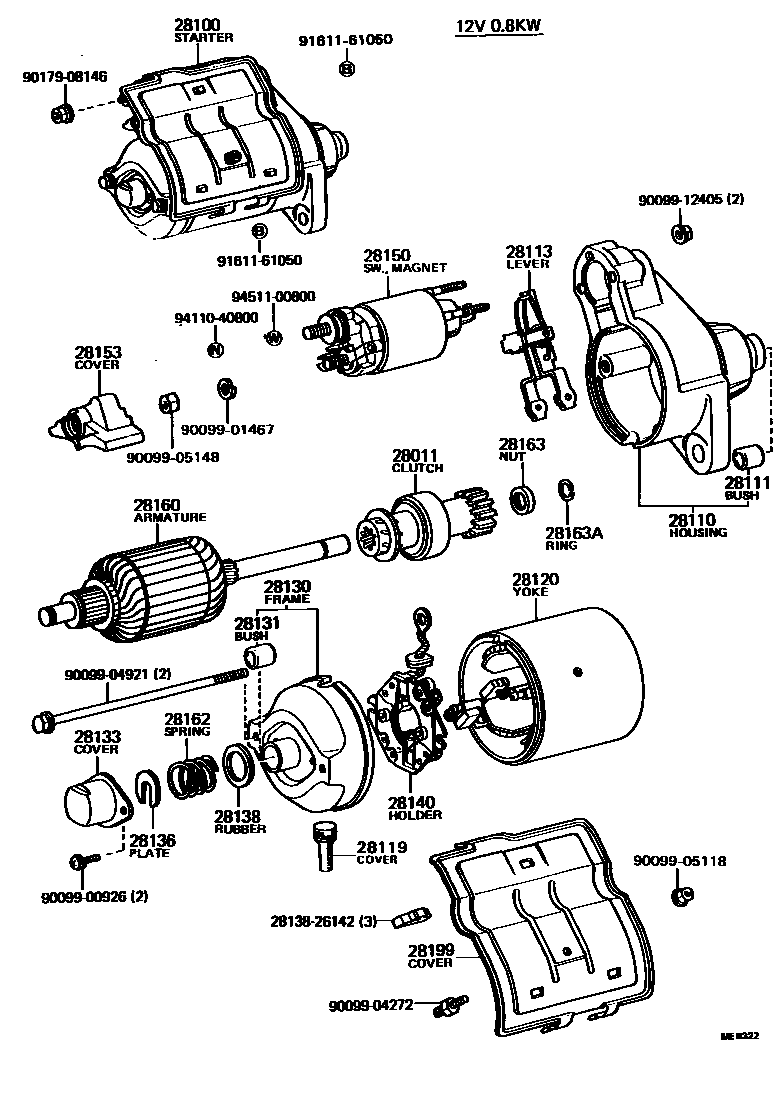

STARTER

0001 1 0002 1 0003 1 0004 1 0005 112V 1.4KW 0008 112V 2.0KW 0009 112V 1.0KW

28011CLUTCH SUB-ASSY, STARTER

main28011-15010i2T,3T..TT14#198201-198508

12V 0.8KW

main28011-26042i22REC,2S#,2Y..RT142,ST141,YT140198304-199907

12V 1.0KW,1.4KW

main28011-64010i1C..CT140198201-198312

12V 1.4KW

main28011-64020i2C..CT141198612-199907

12V 2.0KW

28100STARTER ASSY

main28100-27020i2T,3T..TT14#198201-198508

12V 0.8KW,12V 0.8KW

main28100-34060i22REC..RT142198408-198612

12V 1.0KW,12V 1.0KW

main28100-63020i2S#..ST141198304-198612

12V 1.0KW,12V 1.0KW

main28100-64010i1C..CT140198201-198309

12V 1.4KW,12V 1.4KW

main28100-64020i2C..CT141198612-199907

12V 2.0KW,12V 2.0KW

main28100-64100i1C..CT140198309-198312

12V 1.4KW,12V 1.4KW

main28100-72010i2Y..YT140198612-199907

12V 1.0KW,12V 1.0KW

main28100-72020i2Y..YT140198612-199907

12V 1.4KW,12V 1.4KW

28110HOUSING ASSY, STARTER DRIVE

main28110-27020i2T,3T..TT14#198201-198508

12V 0.8KW

main28110-34060i22REC..RT142198408-198612

12V 1.0KW

main28110-63020i2S#..ST141198304-198612

12V 1.0KW

main28110-64070i1C..CT140198309-198312

12V 1.4KW

main28110-72010i2Y..YT140198612-199907

12V 1.0KW

main28110-72020i2Y..YT140198612-199907

12V 1.4KW

main28115-64010i1C..CT140198201-198309

12V 1.4KW

main28115-64020i2C..CT141198612-199907

12V 2.0KW

28111BUSH(FOR STARTER HOUSING)

main28111-51011i2T,3T..TT14#198201-198508

12V 0.8KW

28113LEVER, STARTER PINION DRIVE

main28113-15011i2T,3T..TT14#198201-198508

12V 0.8KW

28119COVER, STARTER END FRAME

main28119-54070i2C..CT141198612-199907

12V 2.0KW

main28199-72020i1C..CT140198309-198312

12V 1.4KW

main28199-74110i2C,2Y..CT141,YT140199101-199907

12V 1.4KW

main28199-77090i2T,3T..TT14#198201-198508

12V 0.8KW

28120YOKE ASSY, STARTER

main28120-15090i2C,2Y..CT141,YT140198601-199907

12V 1.4KW

main28120-26071i22REC,2S#,2Y..RT142,ST141,YT140198304-199907

12V 1.0KW

main28120-26140i2T,3T..TT14#198201-198508

12V 0.8KW

main28120-34030i1C..CT140198201-198309

12V 1.4KW

main28120-64020i2C..CT141198612-199907

12V 2.0KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-34060i22REC..RT142198408-198612

12V 1.0KW

main28130-37010i2T,3T..TT14#198201-198508

12V 0.8KW

main28130-63020i2S#..ST141198304-198612

12V 1.0KW

main28130-64100i2C..CT141198601-199101

12V 1.4KW

main28130-64110i2C..CT141199101-199907

12V 1.4KW

main28130-72010i2Y..YT140198612-199907

12V 1.0KW

main28130-72020i2Y..YT140198612-199907

12V 1.4KW

28131BUSH, COMMUTATOR END FRAME

main90099-10134i2T,3T..TT14#198201-198508

12V 0.8KW

28133COVER, BEARING(FOR END FRAME)

main28132-15010i2T,3T..TT14#198201-198508

12V 0.8KW

28136PLATE, STARTER LOCK

main28136-15010i2T,3T..TT14#198201-198508

12V 0.8KW

28138RUBBER(FOR STARTER BEARING COVER)

main28138-15010i2T,3T..TT14#198201-198508

12V 0.8KW

28140HOLDER ASSY, STARTER BRUSH

main28140-15010i2T,3T..TT14#198201-198508

12V 0.8KW

main28140-15090i1C..CT140198309-198312

12V 1.4KW

main28140-26070i22REC,2S#,2Y..RT142,ST141,YT140198304-199907

12V 1.0KW

main28140-34030i1C..CT140198201-198309

12V 1.4KW

main28140-54070i2C..CT141198612-199907

12V 2.0KW

28150SWITCH ASSY, MAGNET STARTER

main28150-15012i2T,3T..TT14#198201-198304

12V 0.8KW

main28150-34080i22REC,2Y..RT142,YT140198408-199712

12V 1.0KW

main28150-37010i2T,3T..TT14#198304-198508

12V 0.8KW

main28150-63021i2S#..ST141198304-198612

12V 1.0KW

main28150-64010i1C..CT140198201-198309

12V 1.4KW

main28150-64020i2C..CT141198612-199104

12V 2.0KW

main28150-64021i2C..CT141199104-199907

12V 2.0KW

main28150-64070i2C..CT141198601-199010

12V 1.4KW

main28150-64100i2C..CT141199010-199101

12V 1.4KW

main28150-64101i2C..CT141199101-199712

12V 1.4KW

main28150-64102i2C..CT141199712-199907

12V 1.4KW

main28150-72010i2Y..YT140199712-199907

12V 1.0KW

main28150-72020i2Y..YT140198612-199712

12V 1.4KW

main28150-72021i2Y..YT140199712-199907

12V 1.4KW

28153COVER, MAGNET SWITCH

main28159-13030i2T,3T..TT14#198201-198403

12V 0.8KW

28160ARMATURE ASSY, STARTER

main28160-15010i2T,3T..TT14#198201-198508

12V 0.8KW

main28160-15090i1C..CT140198309-198312

12V 1.4KW

main28160-26050i1C..CT140198201-198309

12V 1.4KW

main28160-26070i22REC,2S#,2Y..RT142,ST141,YT140198304-199907

12V 1.0KW

main28160-54070i2C..CT141198612-198908

12V 2.0KW

main28160-54071i2C..CT141198908-199907

12V 2.0KW

28162SPRING, STARTER BRAKE

main28162-15010i2T,3T..TT14#198201-198508

12V 0.8KW

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-40011i2T,3T..TT14#198201-198508

12V 0.8KW

28163ARING, SNAP(FOR STARTER PINION STOP NUT)

main90099-07047i2T,3T..TT14#198201-198508

12V 0.8KW

28199COVER, STARTER

main28199-15110i2T,3T..TT14#198304-198508

12V 0.8KW

main28199-26131i2T,3T..TT14#198201-198304

12V 0.8KW

main28199-46080i2C..CT141198612-199907

12V 2.0KW

2813826142RUBBER(FOR STARTER BEARING COVER)

main28138-26142

9009900926

main90099-00926

9009901467

main90099-01467

9009904272

main90099-04272

9009904921

main90099-04921

9009905118

main90099-05118

9009905148

main90099-05148

9009912405

main90099-12405

9017908146

main90179-08146

9161161050

main91611-61050

9411040800

main94110-40800

9451100800

main94511-00800

32 parts on this diagram · 7 diagrams in section
