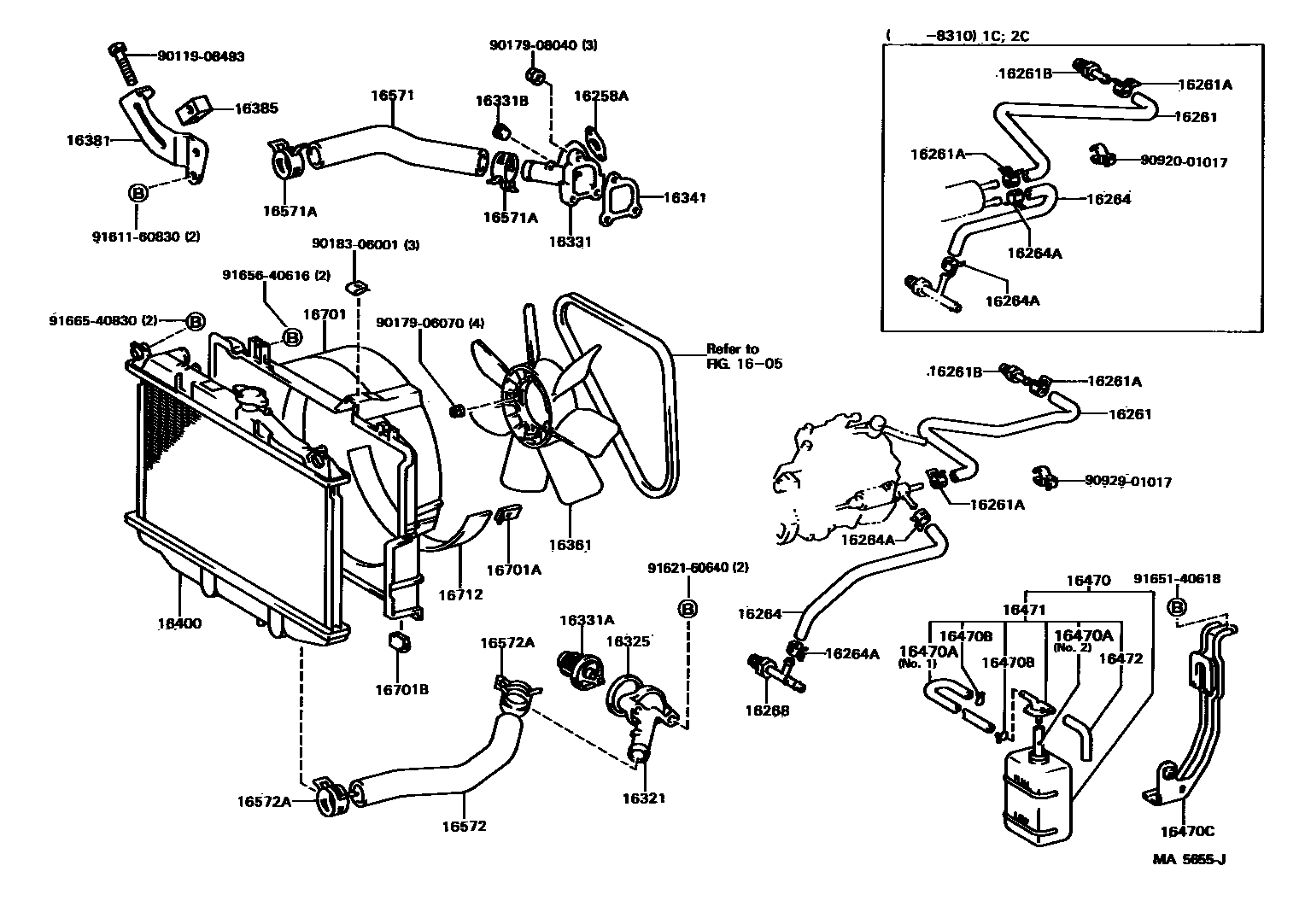

RADIATOR & WATER OUTLET

0001 1 0003 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0015 1

1605V-BELT

→ Go to FIG 16-05

16258AGASKET(FOR HEATER RETURN)

main16258-64010i2C..CT141198601-198911

main16258-64020i2C..CT141198911-199907

16261HOSE, WATER BY-PASS

main16261-25020i2T,3T..TT14#198201-198508

main16261-35030i22REC..RT142198508-198612

main16261-35070i22REC..RT142198408-198508

main16261-63010i2S#..ST141198304-198612

main16261-64010i1C..CT140198201-198301

main16261-64011i2C..CT141198601-199907

main16261-64040i1C..CT140198310-198312

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-15004×2i1C..CT140198201-198312

main90467-15022×2i2C..CT141198908-199907

main90467-20005×2i22REC..RT142; 2T,3T..TT14#198201-198612

main90467-21001×2i2S..ST141198508-198612

main96111-10250×2i2SC..ST141198304-198310

main96112-10250×2i2SC..ST141198508-198612

16261BUNION(FOR WATER BY-PASS HOSE)

main90404-53040i22REC..RT142198408-198508

main90404-53042i1C..CT140198201-198312

main90404-53059i2C..CT141198601-199907

main90407-53007i22REC..RT142198508-198612

16264HOSE, WATER BY-PASS, NO.2

main16264-64010i1C..CT140198201-198310

main16264-64040i1C..CT140198310-198312

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-15004×2i1C..CT140198201-198312

main90467-15022×2i2C..CT141198908-199907

16268PIPE, WATER BY-PASS, NO.1

main16268-35030i22REC..RT142198508-198612

main16268-35050i22REC..RT142198408-198508

main16268-64010i1C..CT140198204-198312

main16268-64050i2C..CT141198601-199907

main16268-72020i2Y..YT140198612-199907

main87208-20150i1C..CT140198201-198204

16321INLET, WATER

main16321-64010i2C..CT141198601-199907

main16321-71010i2Y..YT140198612-199907

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63010i1C,2C..CT14#; 2S#..ST141198201-199301

main16325-63011i2C..CT141; 2Y..YT140199301-199907

16331OUTLET, WATER

main16331-26060i2T,3T..TT14#198201-198508

main16331-35040i22REC..RT142198408-198612

main16331-63010i2S#..ST141..MTM198304-198612

main16331-63020i2S#..ST141..ATM198304-198612

main16331-64010i1C..CT140198201-198312

main16331-71010i2Y..YT140198612-199907

16331ATHERMOSTAT

main90916-03036i2T,3T..TT14#198201-198212

*WAX88-100,FUJI-THOMSON

main90916-03040i2T,3T..TT14#198201-198212

*WAX88-100,KUZEH

main90916-03046i1C,2C..CT14#; 2S#..ST141198201-199907

*WAX 82-95

main90916-03054i12RM..RT140198206-198312

*WAX 82-95

main90916-03055i22REC..RT142; 2T,3T..TT14#198212-198612

*WAX 88-100; *WAX 88-100,*WAX 88-100

main90916-03069i2Y..YT140198612-199201

*WAX 82-95

16331BPLUG(FOR WATER OUTLET)

main90344-53011i2SC..ST141..ATM198304-198612

main90345-53007i1C..CT140198201-198212

main90345-53030i2C..CT141198911-199907

16341GASKET, WATER OUTLET

main16341-35010i22REC..RT142198408-198612

main16341-38011i12RM..RT140; 2T,3T..TT14#198201-198508

main16341-63010i2S#..ST141198304-198612

main16341-64010i2C..CT141198601-198903

main16341-64020i2C..CT141198903-199110

main16341-64021i2C..CT141199110-199907

main16341-71010i2Y..YT140198612-198912

main16341-71011i2Y..YT140198912-199707

main16341-73010i2Y..YT140199707-199907

16361FAN

main16361-18010i2T..TT140..4H;2T..TT140..4F..ME;2T..TT140..WG..LHD; 3T..TT141..WG..LHD198201-198310

6 BLADES; MIDDLE EAST SPEC, 6 BLADES

main16361-26040i2T..TT140..RHD;3T..TT141..MTM..GEN;2T..TT140..SED..LHD..(4F,5F)..GEN198201-198508

5 BLADES

main16361-31021i12RM..RT140198206-198303

4 BLADES

main16361-31030i12RM..RT140198303-198312

5 BLADES

main16361-38010i2C..CT141198601-199907

main16361-45020i2S#..ST141198304-198612

16381BAR, FAN BELT ADJUSTING

main16381-25010i2T,3T..TT14#198201-198508

main16381-30020i12RM..RT140198206-198312

main16381-35020i22REC..RT142198408-198508

main16381-35021i22REC..RT142198508-198612

main16381-63010i2S#..ST141198304-198612

main16381-64011i1C..CT140198201-198312

main16381-64040i2C..CT141198612-199907

main16381-71010i2Y..YT140198612-198902

main16381-73011i2Y..YT140198902-199907

16385SLIDER, FAN BELT ADJUSTING

main16385-64011i1C..CT140198201-198312

main16385-71010i2Y..YT140198902-199907

16400RADIATOR ASSY

main16400-26310i2T..TT140..GEN198201-198412

DOUBLE CORE

main16400-26330i2T..TT140..RHD;3T..TT141..MTM..GEN;2T..TT140..SED..LHD..(4F,5F)..GEN198201-198508

SINGLE CORE

main16400-26340i3T..TT141..3FC198201-198508

SINGLE CORE

main16400-26380i2T..TT140..4H;2T..TT140..WG..LHD;2T,3T..TT14#..(4F,5F)..ME; 3T..TT141..WG..LHD198201-198310

SINGLE CORE; SINGLE CORE,MIDDLE EAST SPEC

main16400-28031i3T..TT141..MTM..GEN198201-198508

DOUBLE CORE

main16400-28051i3T..TT141..3FC..GEN198201-198508

DOUBLE CORE

main16400-28060i3T..TT141..GL198310-198412

SINGLE CORE,W/PS

main16400-31240i12RM..RT140198206-198303

main16400-37090i2C..CT141198601-199907

main16400-72090i2Y..YT140198612-198811

main16400-72091i2Y..YT140198811-199907

main16410-35200i22REC..RT142..5F198408-198612

main16410-35210i22REC..RT142..4FC198408-198612

16470TANK ASSY, RADIATOR RESERVE

main16470-35030i22REC..RT142198408-198612

main16470-64090i2C..CT141..4F198612-199907

main16470-72020i2Y..YT140198612-199907

main16470-74020i2S..ST141198508-198612

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16472-70070i2Y..YT140198612-199907

L=150,NO.2

main85343-20210i2C..CT141..4F198612-199907

NO.1

main90099-33534i22REC..RT142198408-198612

L=1800(*H,L=890),NO.1

main90445-12078i2C..CT141..4F; 2Y..YT140198612-199907

L=1000(*H,L=300),NO.1,NO.3; L=1800(*H,L=165),NO.2

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085×2i2C..CT141..4F; 2Y..YT140198612-199907

16470CBRACKET(FOR RADIATOR RESERVE TANK)

main16611-72010i2Y..YT140198612-199907

main16611-74020i2C..CT141..4F198612-199907

16471CAP SUB-ASSY, RESERVE TANK

main16405-64030i2C..CT141..4F198612-199907

main16405-72020i2Y..YT140198612-199907

main16405-74020i2S..ST141198508-198612

main16471-35030i22REC..RT142198408-198612

16472HOSE, BREATHER

main85338-20030i22REC..RT142198408-198612

main85338-30010i2S..ST141198508-198609

main85338-70100i2S..ST141198609-198612

16571HOSE, RADIATOR, INLET

main16571-28030i3T..TT141..SED..RHD198212-198310

RADIATOR SINGLE CORE,W/PS

main16571-64010i1C..CT140198201-198312

main16571-72010i2Y..YT140198612-199705

main16571-72011i2Y..YT140199705-199907

main16571-74040i2S..ST141198508-198612

main16572-31160i12RM..RT140198206-198312

main90916-01143i2T,3T..TT14#198201-198508

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-34001×2i2SC..ST141198304-198612

main90467-37001×2i12RM,22REC..RT14#; 1C,2C..CT14#; 2T,3T..TT14#198201-199907

16572HOSE, RADIATOR, OUTLET

main16571-26030i2T..TT140..GEN198201-198412

RADIATOR DOUBLE CORE

main16571-26090i2T,3T..TT14#198201-198508

RADIATOR SINGLE CORE

main16571-28020i3T..TT141..GEN198201-198508

RADIATOR DOUBLE CORE

main16571-31120i12RM..RT140198206-198312

main16572-35080i22REC..RT142198409-198612

main16572-38070i22REC..RT142198408-198409

main16572-64010i1C..CT140198201-198312

main16572-72010i2Y..YT140198612-199705

main16572-72011i2Y..YT140199705-199907

main16572-74040i2S..ST141198508-198612

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-34001×2i2SC..ST141198304-198612

main90467-37001×2i1C..CT140198201-198312

main96111-10460×2i12RM..RT140198206-198312

main96111-10490i22REC..RT142; 2T,3T..TT14#198201-198612

WATER PUMP SIDE

16701SHROUD SUB-ASSY, FAN

main16711-26080i3T..TT141..3FC..GEN198201-198508

RADIATOR DOUBLE CORE

main16711-26090i2T..TT140..RHD;3T..TT141..MTM..GEN;2T..TT140..SED..LHD..(4F,5F)..GEN198201-198508

RADIATOR SINGLE CORE

main16711-27020i3T..TT141..MTM..GEN198201-198508

RADIATOR DOUBLE CORE

main16711-28020i2T..TT140..GEN198201-198412

RADIATOR DOUBLE CORE

main16711-28090i2T..TT140..WG..LHD;2T,3T..TT14#..3FC,4H;2T,3T..TT14#..(4F,5F)..ME; 3T..TT141..WG..LHD198201-198305

RADIATOR SINGLE CORE; SINGLE CORE,MIDDLE EAST SPEC

main16711-28091i3T..TT141..SED..RHD; 3T..TT141..WG..LHD198305-198310

RADIATOR SINGLE CORE,W/PS; SINGLE CORE,MIDDLE EAST SPEC

main16711-38050i22REC..RT142198408-198612

main16711-64010i2C..CT141198601-199907

main16711-72010i2Y..YT140198612-199907

main16711-74060i2S..ST141198508-198612

16701ACLIP(FOR FAN SHROUD)

main90468-06006×2i2T,3T..TT14#..GEN198201-198508

RADIATOR DOUBLE CORE,W/COOLER

main90468-06013×2i1C,2C..CT14#; 2S#..ST141; 2T,3T..TT14#198201-199907

RADIATOR SINGLE CORE,W/COOLER

16701BCUSHION, FAN SHROUD

main90541-11002×2i1C,2C..CT14#; 2T,3T..TT14#198201-199907

RADIATOR SINGLE CORE

16712SHROUD, FAN, NO.2

main16712-28011i2T,3T..TT14#..GEN198201-198508

RADIATOR DOUBLE CORE,W/COOLER

main16712-38010i22REC..RT142198408-198612

W/COOLER

main16712-44040i2T,3T..TT14#198201-198508

RADIATOR SINGLE CORE,W/COOLER

main16712-54050i1C,2C..CT14#; 2S#..ST141198201-199907

W/COOLER

9011908493

main90119-08493

9017906070

main90179-06070

9017908040

main90179-08040

9018306001

main90183-06001

9092001017

main90920-01017

9092901017

main90929-01017

9161160830

main91611-60830

9162160640

main91621-60640

9165140618

main91651-40618

9165640616

main91656-40616

9166540830

main91665-40830

43 parts on this diagram · 11 diagrams in section
