ENGINE OVERHAUL GASKET KIT

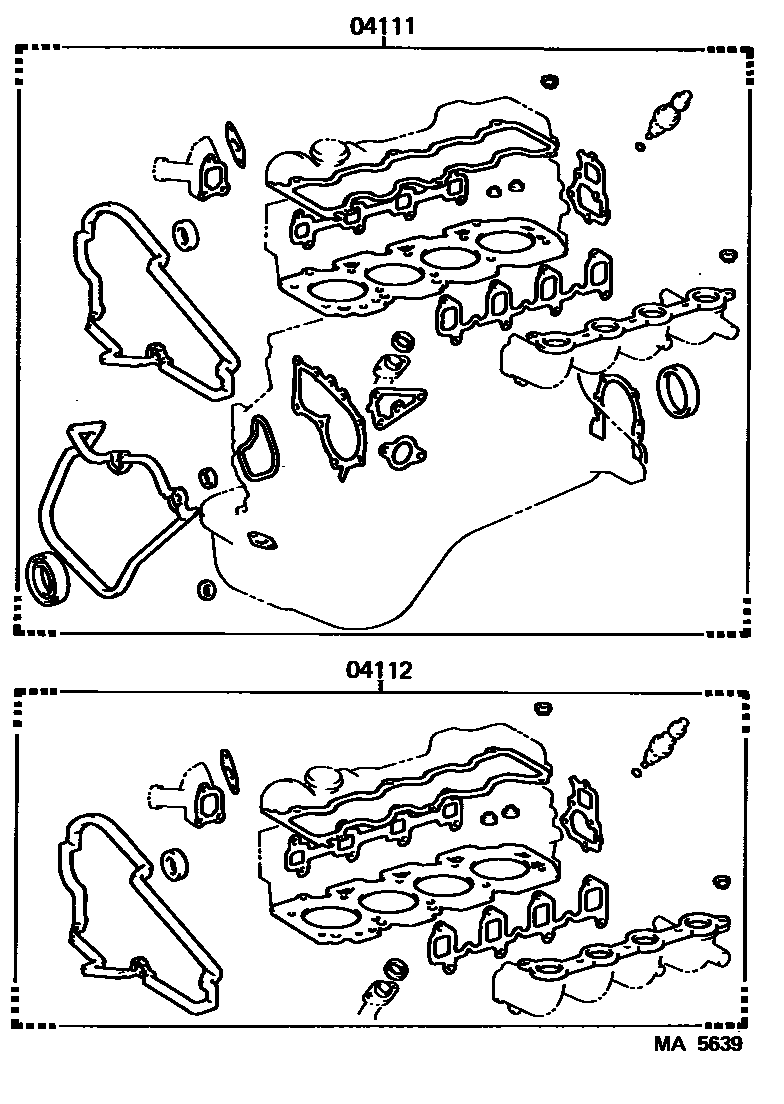

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-28017i198201-198508

main04111-31034i198206-198312

main04111-35070i198508-198612

main04111-35080i198408-198508

main04111-64010i198201-198207

main04111-64011i198207-198304

main04111-64012i198304-198307

main04111-64040i198307-198312

main04111-64072i198601-198903

main04111-64073i198903-198906

main04111-64074i198906-198912

main04111-64076i198912-199005

main04111-64077i199005-199101

main04111-64162i199101-199112

main04111-64163i199112-199504

main04111-64166i199504-199511

main04111-64168i199511-199704

main04111-64341i199704-199805

main04111-64343i199805-199811

main04111-64344i199811-199907

main04111-72011i198612-198704

main04111-72012i198704-198808

main04111-72013i198808-198912

main04111-72014i198912-199106

main04111-72015i199106-199308

main04111-72016i199308-199511

main04111-72040i199511-199901

main04111-72041i199901-199907

main04111-74020i198510-198610

main04111-74021i198610-198612

main04111-74070i198510-198610

NEW ZEALAND SPEC

main04111-74071i198610-198612

NEW ZEALAND SPEC

04112GASKET KIT, ENGINE VALVE GRIND

main04112-28016i198201-198508

main04112-31034i198206-198312

main04112-35060i198508-198612

main04112-35070i198408-198508

main04112-64010i198201-198307

main04112-64040i198307-198312

main04112-64071i198601-198903

main04112-64073i198903-198906

main04112-64074i198906-199101

main04112-64102i199101-199112

main04112-64105i199112-199504

main04112-64108i199504-199511

main04112-64109i199511-199704

main04112-64252i199704-199907

main04112-72011i198612-198704

main04112-72012i198704-198808

main04112-72013i198808-199001

main04112-72014i199001-199106

main04112-72015i199106-199308

main04112-72016i199308-199511

main04112-72040i199511-199907

main04112-74020i198510-198612

main04112-74070i198510-198612

NEW ZEALAND SPEC

2 parts on this diagram · 6 diagrams in section
