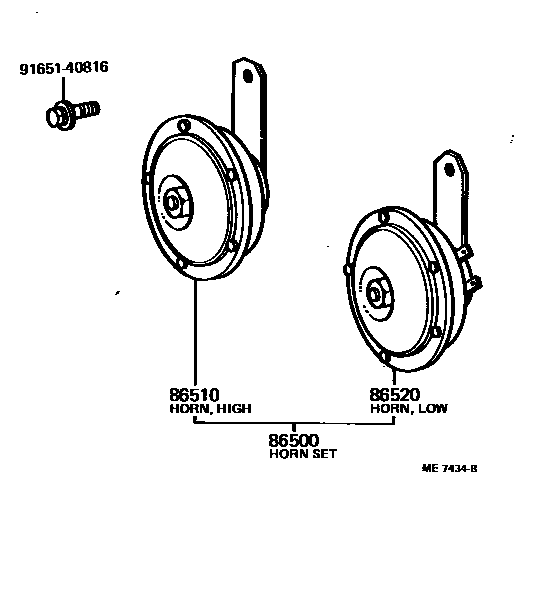

HORN

86500HORN ASSY

main86500-14031iRT13#,TT132..LHD..GEN; TT132..EUR197809-197908

EEC SPEC.

86510HORN ASSY, HIGH PITCHED

main86510-14031iRT13#,TT132..LHD..GEN; TT132..EUR197809-197908

EEC SPEC

main86510-14110iRT132,TT132..LHD..GEN197908-198008

EEC SPEC

main86510-20110iRT13#,TT13#,XT130..ARL,GEN,PHL197809-198301

DENSO

main86510-20120iRT13#,TT13#,XT130..ARL,GEN,PHL197809-198301

MARUKO

86520HORN ASSY, LOW PITCHED

main86520-14010iRT13#,TT13#,XT130..ARL,GEN,PHL197809-198301

DENSO

main86520-14021iRT13#,TT13#,XT130..ARL,GEN,PHL197809-198301

MARUKO

main86520-14031iRT13#,TT132..LHD..GEN; TT132..EUR197809-197908

EEC SPEC

main86520-14060iRT132,TT132..LHD..GEN197908-198008

EEC SPEC

9165140816

main91651-40816

4 parts on this diagram · 1 diagram in section
