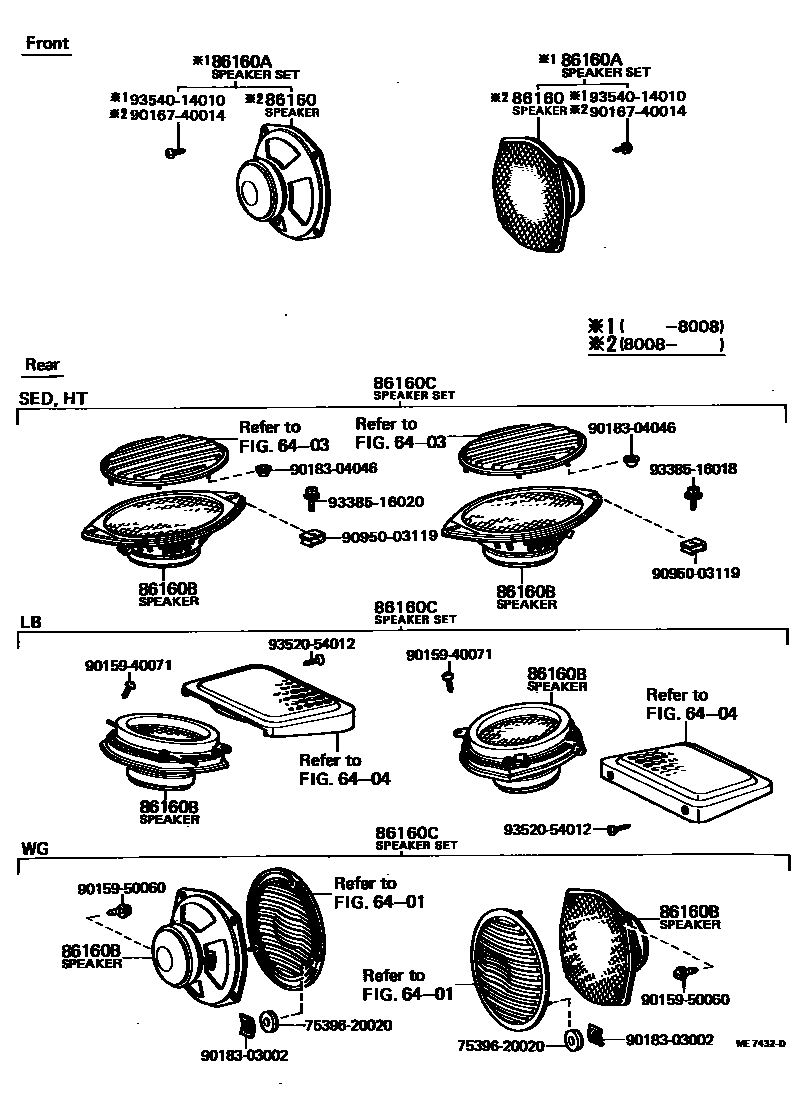

SPEAKER

6401INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

→ Go to FIG 64-01

6403PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

→ Go to FIG 64-03

6404DECK BOARD & DECK TRIM COVER

→ Go to FIG 64-04

86160SPEAKER ASSY, FRONT NO.1

main86160-20100iRT13#,TT13#,XT130198008-198301

86160ASPEAKER SET, FRONT

main86160-19125iRT13#,TT13#,XT130197809-198008

86160BSPEAKER ASSY, REAR

main86160-20080iTT132..SED..EUR197809-198008

main86160-20090iRT132,TT132..LB..GEN197809-198008

main86160-20110iRT13#,TT13#,XT130..HT,SED198008-198301

main86160-20120iRT132,133,TT132..LB198008-198112

main86160-20130iRT130,132,TT13#,XT130..WG198008-198301

main86160-21010iRT13#,TT132..WG..GEN197809-198008

86160CSPEAKER SET, REAR

main86160-29095iRT13#,TT13#,XT130..(HT,SED)..(ARL,GEN,PHL)197809-198008

main86160-29105iRT132,TT132..LB..(ARL,GEN)197809-198008

BLACK GRILLE

main86160-29115iRT13#,TT13#,XT130..WG197809-198008

main86160-29125iTT132..LB..LHD..EUR197809-198008

D-WINE GRILLE

main86160-29135iTT132..LB..LHD..EUR197809-198008

BEIGE GRILLE

main86160-29185iRT13#,TT13#,XT130..HT,SED198008-198301

main86160-29195iRT130,132,TT13#,XT130..WG198008-198301

main86160-29205iRT132,133,TT132..LB198008-198112

BLACK CRILLE

main86160-29215iRT132,133,TT132..LB198008-198112

D-WINE GRILLE

main86160-29225iRT132,133,TT132..LB198008-198112

LIGHT BROWN GRILLE

7539620020CLIP, OUTSIDE MOULDING, NO.2

main75396-20020

9015940071

main90159-40071

9015950060

main90159-50060

9016740014

main90167-40014

9018303002

main90183-03002

9018304046

main90183-04046

9095003119

main90950-03119

9338516018

main93385-16018

9338516020

main93385-16020

9352054012

main93520-54012

9354014010

main93540-14010

18 parts on this diagram · 1 diagram in section
