Toyota 261230 — RADIO RECEIVER & AMPLIFIER & CONDENSER

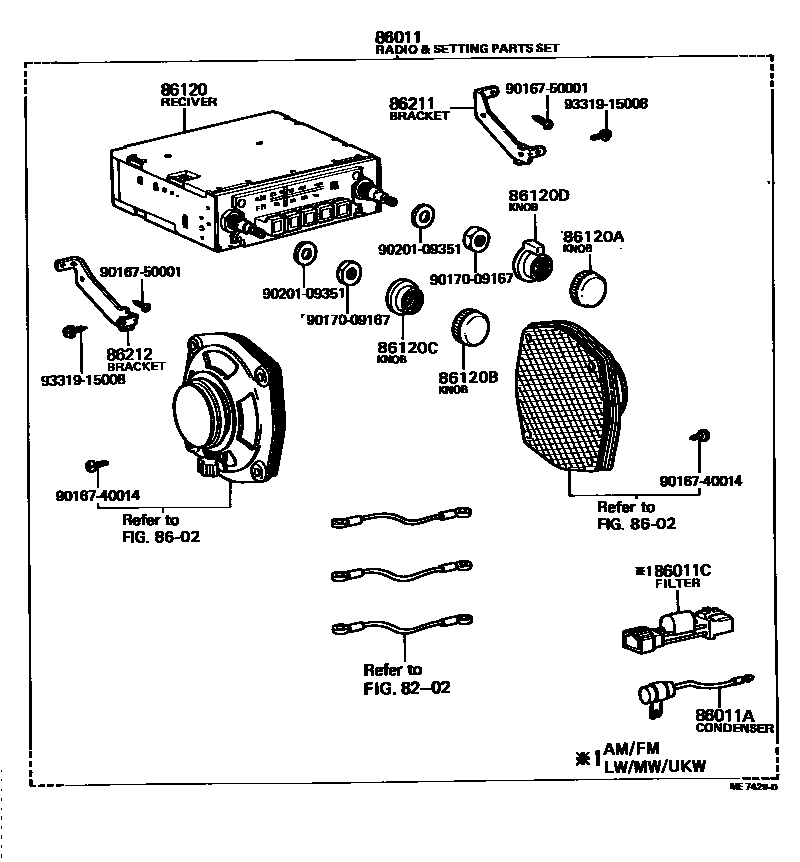

Parts diagram

8202WIRING & CLAMP

→ Go to FIG 82-02

86011RADIO & SETTING PARTS SET

86011ACONDENSER, RADIO SETTING

86011CFILTER, NOISE

8602SPEAKER

→ Go to FIG 86-02

86120AKNOB, RADIO RECEIVER SWITCH

86120BKNOB, RADIO RECEIVER TUNING, NO.1

86120CKNOB, RADIO RECEIVER TUNING, NO.2

86120DKNOB, RADIO RECEIVER TONE

86211BRACKET, RADIO, NO.1

86212BRACKET, RADIO, NO.2

9016740014

9016750001

9017009167

9020109351

9331915008

17 parts on this diagram · 4 diagrams in section

RADIO RECEIVER & AMPLIFIER & CONDENSER for Toyota 261230

This section contains 32 genuine Toyota parts for the RADIO RECEIVER & AMPLIFIER & CONDENSER system of the Toyota 261230. Key components include: CONSOLE BOX & BRACKET, WIRING & CLAMP, RADIO & SETTING PARTS SET, CONDENSER, RADIO SETTING, FILTER, NOISE.
