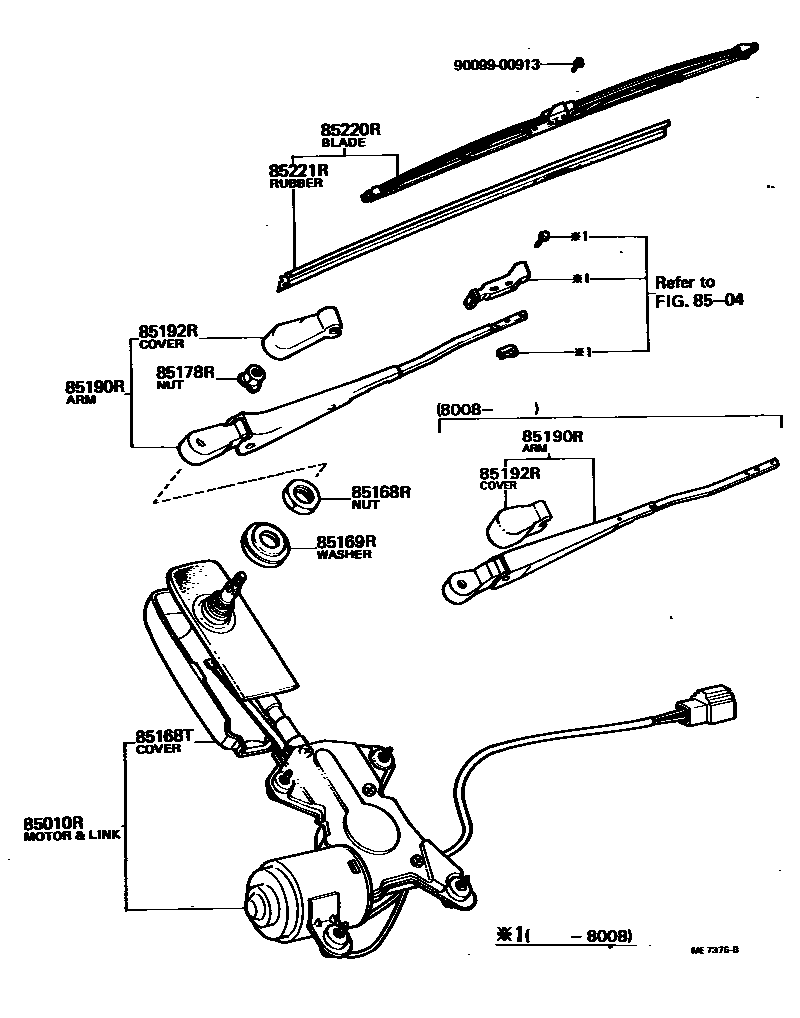

REAR WIPER

0001 1 0002 1

85010RMOTOR & LINK ASSY, RR WIPER

main85010-20120iRT132,TT132..LB197809-198008

sub85010-20160

sub90463-12570

main85010-20121iRT132,133,TT132..LB198008-198112

8504

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main85186-20120iRT132,133,TT132..LB197809-198112

main90099-05120iRT13#,TT13#,XT130..WG..(ARL,GEN)197809-198008

main90099-05141iRT130,132,TT13#,XT130..WG198008-198301

85168TCOVER, WIPER LINK

main85168-20120iRT132,133,TT132..LB197809-198112

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85179-12180iRT132,133,TT132..LB197809-198112

main90099-01455iRT13#,TT13#,XT130..WG..(ARL,GEN)197809-198008

main90099-01458iRT130,132,TT13#,XT130..WG198008-198301

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iRT132,133,TT132..LB197809-198301

main90179-08026iRT132,TT132..LB197809-198008

85190RARM ASSY, REAR WIPER

main85190-20250iRT132,TT132..LB197809-198008

main85190-20251iRT132,133,TT132..LB198008-198112

main85190-91255iRT13#,TT13#,XT130..WG..(ARL,GEN)197809-198301

85192RCOVER, REAR WIPER ARM

main85192-14020iRT132,133,TT132..LB197809-198301

sub85192-13060

main85192-20030iRT132,TT132..LB197809-198008

85220RBLADE ASSY, REAR WIPER

main85220-14110iRT13#,TT13#,XT130..WG..(ARL,GEN)197809-198301

sub85220-22370

main85220-20100iRT132,TT132..LB197809-198008

sub85220-14400

main85220-20220iRT132,133,TT132..LB198008-198112

sub85220-14400

85221RBLADE, REAR WIPER

main85221-20060iRT13#,TT13#,XT130..WG..(ARL,GEN)197809-198301

sub85221-14H90

main85221-20090iRT132,133,TT132..LB197809-198112

sub85221-20120

9009900913

main90099-00913

11 parts on this diagram · 2 diagrams in section
